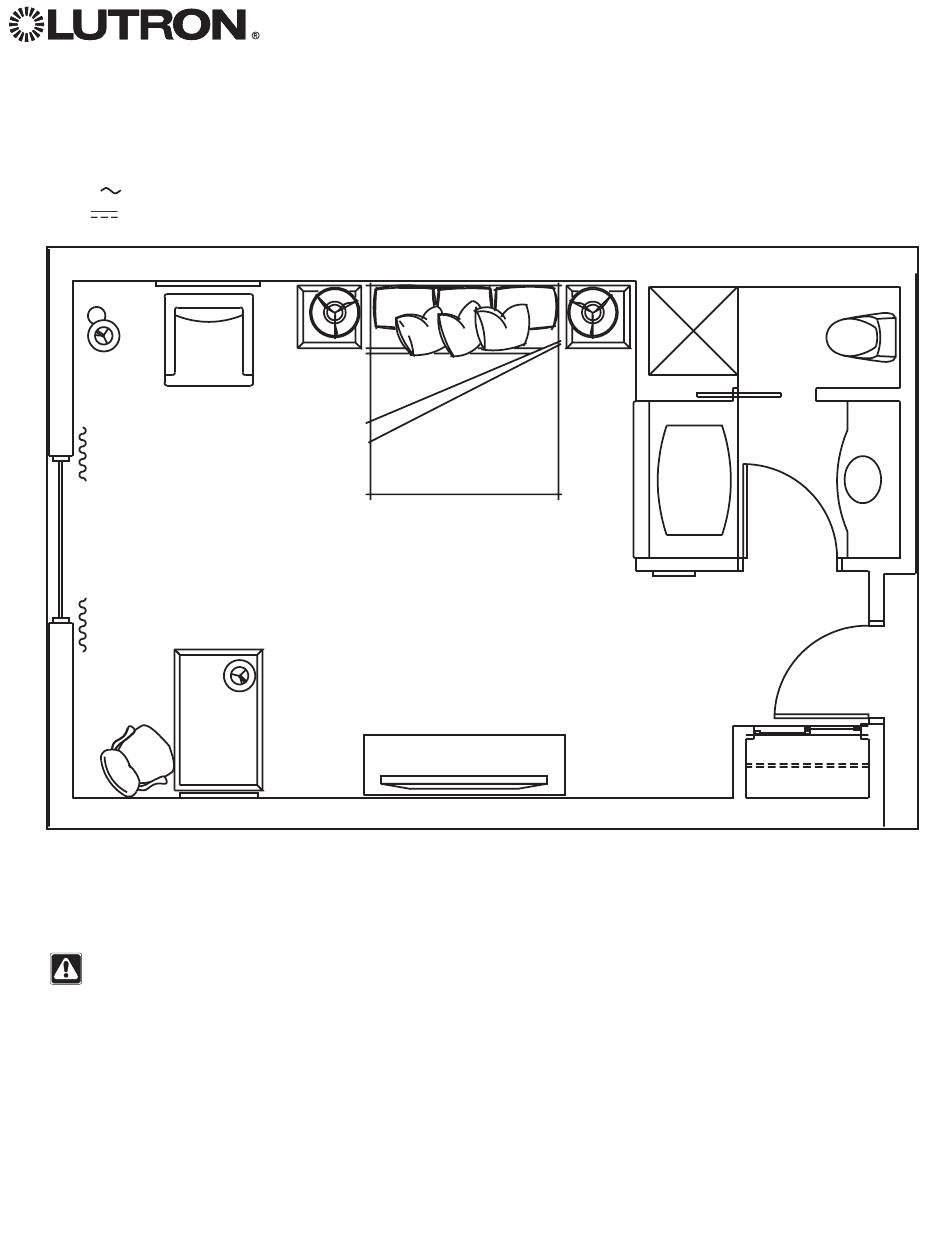

seeTouch
Installation Guide
230 V
50/60 Hz 8,75 A (40 – 350 W per zone)
24 V
200 mA (Panels with a power supply only)
IMPORTANT:
• Lighting controls must be installed by a qualified electrician in accordance with all applicable regulations.
WARNING: Shock Hazard. May result in death or serious injury. DO NOT WIRE LIVE! Interrupt
power via circuit breaker before wiring and servicing.
• Always turn off circuit breaker/MCB or remove main fuse from power line before doing any work.
• To reduce the risk of overheating and possible damage to other equipment, the module must be mounted
as shown. Failure to provide adequate space for cooling may result in overheating and void the warranty.
• Module hums slightly during operation and the internal relay clicks when the circuit is turned on and off.
Choose an installation location where these sounds are acceptable.
• Lighting controls are designed for commercial indoor use only.
• This control uses PELV wiring methods. Check with your local electrical inspector for compliance with
national and local codes and wiring practices.
guestroom solutions
®
Please Read
Advertisement
Table of Contents
Related Manuals for Lutron Electronics seeTouch guestroom solutions
Summary of Contents for Lutron Electronics seeTouch guestroom solutions
- Page 1 seeTouch guestroom solutions ® Installation Guide Please Read 230 V 50/60 Hz 8,75 A (40 – 350 W per zone) 24 V 200 mA (Panels with a power supply only) IMPORTANT: • Lighting controls must be installed by a qualified electrician in accordance with all applicable regulations. WARNING: Shock Hazard. May result in death or serious injury. DO NOT WIRE LIVE! Interrupt power via circuit breaker before wiring and servicing. • Always turn off circuit breaker/MCB or remove main fuse from power line before doing any work. • To reduce the risk of overheating and possible damage to other equipment, the module must be mounted as shown. Failure to provide adequate space for cooling may result in overheating and void the warranty.
- Page 2 2 seeTouch guestroom solutions ®...
-
Page 3: Table Of Contents
Table of Contents Contents Overview Dimensions and Mounting Panel Wiring Control Unit Wiring Wallstation Installation Start-Up Procedure Ethernet Wiring Contact Closure Wiring Warranty Contact Information Overview Powered by a precision-engineered dimming panel, the new seeTouch guestroom solution is a cost-effective, ® simple-to-install lighting control solution for hotel guestrooms. Panel Details Description • Allows setup of lighting scenes and shade presets using buttons on the panel. • Controls many light source types directly and others using power interfaces. • Provides individual control of light sources. • Includes built-in astronomic timeclock. • Includes one contact closure input and 24 V power for occupant sensors or other building management systems. -
Page 4: Dimensions And Mounting
Dimensions All dimensions in mm (in) 337 (13,25) 86 (3,39) with cover Attention Contractor! 22 (0,88) Please use provided knockouts for (3,14) Top View input mains wiring conduit. Drilling 286 (11,25) 8 (0,31) additional holes in enclosure could damage electronic components inside the panel. (9,25) (9,25) (7,5) Left Side Front View Right Side View View (1,0) 337 (13,25) = Knockouts (2,93) = Do Not Use These Knockouts... -
Page 5: Panel Wiring
Panel Wiring Instructions WARNING: Shock Hazard. Turn power OFF to all circuits before installing any part of the dimming system. Wiring with the power on can result in death or serious personal injury. NOTICE: Verify that the panel is fed from the correct voltage. A feed miswire or loss of a feed neutral can cause damage to the equipment. -
Page 6: Control Unit Wiring
Control Unit Wiring PELV System Wiring • System communication uses PELV wiring. • Wiring can be daisy-chained or T-tapped. • Wiring must be run separately from line/mains voltage. • PELV wiring link requires: – T wo 1,0 mm (18 AWG) conductors for control power. – O ne twisted, shielded pair of 0,5 mm (22 AWG) for data link. – A vailable from Lutron, P/N GRX-CBL-346S; check compatibility in your area. • Total length of control link must not exceed 610 m (2 000 ft). • Up to 10 wallstations can be powered from each Panel with a power supply (see model descriptions for details). Panel Wiring Example Panel #1 Panels with power supplies can power up to 10 wallstations and cannot Non-RF Panel have terminal #2 tied to other panels with power supplies. -
Page 7: Wallstation Installation
Wallstation Installation Wallstation Wiring: Panel with up to Ten Wallstation Controls Each panel with a power supply can power up to ten Wallstation Controls. If you need to power more than ten Wallstation Controls from one panel, install an external 24 V power supply. Maximum of 300 m (1 000 ft) between the Control Unit and the second Wallstation. For longer distances, use an external PELV rated 24 V power supply. IMPORTANT WIRING NOTE: Daisy-chain the terminal 1, terminal 2, terminal 3, and terminal 4 connections to the panel and Wallstation Controls. Note: Do not allow PELV wires to contact line/mains wires. PELV (Class 2: USA) Control Station Device (CSD) Link Wiring Control wiring (2) 1,0 mm (18 AWG) 1: Common • Use low-voltage PELV wiring to connect Wallstations 2: 24 V to the panel link. • Make connections inside the wallbox or in a switch/ junction box with a maximum wire length of 2,5 m (2) 1,0 mm (8 ft) from the link to the Wallstation. -
Page 8: Start-Up Procedure
Wallstation Installation (continued) 1. Mount wallbox with appropriate depth. 2. Strip 9 mm (3/8 in) insulation from both twisted pairs in the wallbox. Start-up Procedure Check Load Circuits 1. Make sure the factory-installed bypass jumper(s) are still in place between the L (Live) and DL (Dimmer Load) terminals. Replace panel cover. Turn circuit breaker on. 2. Check the input current to the L (Live) terminal with a “clamp-on” type current probe. The current probe should measure no more than 8,75 A. 3. Turn loads ON for at least ten minutes. If circuit breaker trips, turn power OFF, then locate and correct miswire or overload. Check Panel 1. With power OFF, make sure all control wiring is correct. Replace panel cover. Turn circuit breaker on. 2. Push buttons on wallstation control. The lighting should go to full, but the control indicator lights should go on/off. Remove Bypass Jumpers 1. Turn power OFF. 2. Remove the load circuit bypass jumper from the control panel. 3. Turn power ON. Change the scene buttons on the Grafik Eye QS to make sure they adjust the light level. ® 8 seeTouch guestroom solutions ®... -
Page 9: Ethernet Wiring
RS232/Ethernet Wiring WARNING: Shock Hazard. May result in death or serious injury. DO NOT WIRE LIVE! Interrupt power via circuit breaker before wiring and servicing. For Ethernet link, use CAT5 cable (not included) to connect to auxiliary equipment. Maximum length for CAT5 cable is 100 m (328 ft). The Ethernet Link LED will light continuously when the link is present and will flash when there is link activity. Additional Ethernet network equipment and cables not provided. Network Connections Ethernet RS232 Data Link DIP LED 1: Power Link Link (to control Switches LED 2, 3: Unused units, LED 4: RS232 Link Tx processors, and LED 5: RS232 Link Rx wallstations) LED 6: Data Link Tx LED 7: Data Link Rx Ethernet Interface Wiring RS232 Link Wiring Ethernet Link Wiring • Standard 9-pin serial connector plugs into RS232... -
Page 10: Contact Closure Wiring
Contact Closure Wiring Contact Closure Ratings Five Input Terminals • Accepts maintained inputs and momentary inputs with 40 ms minimum pulse times. • Off-state leakage current must be less than 100 μA. • Open circuit voltage: 24 V maximum. • Inputs must be dry contact closure, solid state, open collector, or active-low (NPN)/active high (PNP) output. – O pen collector NPN or active-low on-state voltage must be less than 2 V and sink 3,0 mA. – O pen collector PNP or active-high on-state voltage must be greater than 12 V and source 3,0 mA. • Lutron recommends a maximum of 3 occupant sensors wired in parallel per input. Five Output Terminals • Provide selectable maintained or momentary (250 ms) outputs. • The interface is not rated to control unclamped, inductive loads. Inductive loads include, but are not limited to, relays, solenoids, and motors. To control these types of equipment, a flyback diode must be used (DC voltages only). See diagram below. -
Page 11: Warranty
CUSTOMER AND WILL NOT IN ANY WAY BE ENFORCEABLE BY Lutron, the sunburst logo, Grafik Eye, and seeTouch are registered CUSTOMER. trademarks of Lutron Electronics Co., Inc. IN NO EVENT WILL LUTRON OR ANY OTHER PARTY BE LIABLE FOR EXEMPLARY, CONSEQUENTIAL, INCIDENTAL OR SPECIAL ©... -
Page 12: Contact Information
Contact Information Internet: www.lutron.com The following apply: Observe all national and local electrical codes, safety E-mail: product@lutron.com standards, and building codes. Disconnect all power sources before wiring or World Headquarters servicing unit. Use certified cable for all Line Voltage/Mains cables Lutron Electronics Co., Inc. and PELV cables. 7200 Suter Road Reinforce mounting structure as required for weight Coopersburg, PA 18036-1299 and local codes. TEL +1.610.282.3800 Do not exceed the capacity rating of the unit. FAX +1.610.282.1243 Use indoors only. Toll-Free 1.888.LUTRON1 Clean with a soft damp cloth only. Do not use any Technical Support 1.800.523.9466 chemical cleaners. North and South America Technical Hotlines The following may also apply: USA, Canada, Caribbean: 1.800.523.9466 Do not connect high-voltage power to low voltage Mexico: +1.888.235.2910 terminals. Central/South America: +1.610.282.6701 Do not operate a dimmed low-voltage circuit without operative lamps in place. - Page 13 Soluciones para habitaciones seeTouch ® Guía de instalación Lea la información siguiente 230 V 50/60 Hz 8,75 A (40 – 350 W por zona) 24 V 200 mA (Cuadros con sólo una fuente de alimentación) IMPORTANTE: • Los controles de iluminación deberán ser instalados por un electricista cualificado según la normativa vigente. A DVERTENCIA: Peligro de descargas. Puede causar lesiones graves o mortales. NO REALICE LA CONEXIÓN CON CORRIENTE. Interrumpa la alimentación a través del magnetotérmico antes del cableado y servicio.
- Page 14 Índice Índice Perspectiva general Dimensiones y montaje Cableado del cuadro Cableado de la unidad de control Instalación de la unidad de control de pared Procedimiento de puesta en marcha Cableado Ethernet Cableado de cierre de contacto Garantía Información de contacto Perspectiva general Accionada por un cuadro de regulación de diseño de precisión, la nueva solución para habitaciones seeTouch ®...
- Page 15 Medidas Todas las dimensiones en mm Dimensiones 86 mm con tapa ¡Atención, contratista! Utilice los tubos/canalizaciones Vista superior suministrados para el conducto de cableado de red. La realización de orificios adicionales podría dañar los componentes electrónicos del interior del cuadro. Vista Vista frontal Vista lateral derecha lateral izquierda = tubo/ conductos = No utilice estos tubos o conductos Vista desde abajo Montaje Notas: • Sólo para uso en interiores.
- Page 16 seeTouch 客房解决方案 ® 安装指南 请阅读 230 V 50/60 Hz 8.75 A (每光区 40 – 350 W) 24 V 200 mA （仅限带电源的电柜） 重要： • 照明控制器必须由合格的电工按照所有适用规定进行安装。 警告：电击危险。可导致死亡或严重受伤事故。 切勿带电接线！进行接线和检修之前，应先通过断 路器切断电源。 • 进行任何操作之前，要关掉断路器（MCB）或取下电力线路的主保险丝。 • 为了避免过热和可能损坏其它设备，必须如图所示安装模块：未能提供足够的冷却空间可能会导致过热并 使质量保证失效。 • 模块在工作时会发出轻微的嗡嗡声，而且其内部继电器会在回路接通和关闭时发出咔嗒声。安装位置应选 择在可容忍有这些声音的地方。 • 照明控制器只能安装在室内使用。 • 此控制器采用 PELV 接线法。请与当地的电工行业督查员联系，以了解当地的和国家的规定及接线规范。...
- Page 17 目录 目录 概述 尺寸和安装 电柜接线 控制器接线 墙控器的安装 调试步骤 以太网接线 触点闭合的接线 质量保证 联系信息 概述 全新的 seeTouch 客房解决方案采用一个精确设计的调光电柜， 是一款具有成本效益， 又易于安装的酒店客房照 ® 明控制解决方案。 电柜细节 说明 • 可用电柜上的按键设定照明场景和窗帘预设。 • 可直接控制多种光源类型， 并可利用电源接口控制其它光源。 • 可对各光源进行单独控制。 • 包括内置天文时钟。 • 包括一路触点闭合输入和供占空传感器或其它楼宇管理系统用的 24 V 电源。 • 包括可用于无缝集成灯光、 电动窗帘系统和控制站的通讯链路。 • 与所有的路创 Lutron QS 系统组件兼容。...
- Page 18 尺寸 所有尺寸均为毫米 86 mm 承包商请注意！ 请使用为干线输入接线套管所提供 的穿线孔。在封挡电柜内另行钻孔 可能会损坏电柜内的电子部件。 安装 注释 • 仅限室内使用。 • 有关电柜尺寸、穿线孔和安装孔的位 置，请参见上面的尺寸图。 • 请安装在环境温度为 0 至 40 °C 的地方。 • 可根据需要，按照承重及当地的规定加 固墙体结构。 • 安装电柜时应让线路／主路电压的走线 离音响或电子设备及接线至少 1.8 米 远。 • 路创建议使用 6 毫米的安装螺栓。 PELV • 电柜各侧留出 32 毫米的间隙以安装外 PELV 盖。...
- Page 19 Решения seeTouch для гостиничных ® номеров Руководство по установке Просим ознакомиться 230 В 50/60 Гц 8,75 A (40 – 350 Вт на зону) 24 В 200 мА (только панели с источником питания) ВАЖНО: • Устройства управления освещением должны устанавливаться квалифицированным электриком с учетом всех применимых нормативных...
- Page 20 Содержание Содержание Общие сведения Размеры и монтаж Подключение щита Подключение устройства управления Установка кнопочной панели Порядок ввода в эксплуатацию Подключение Ethernet Подключение контактного интерфейса Гарантия Контактная информация Общие сведения Управляемое прецизионным диммерным устройством, система seeTouch для гостиничных номеров – это экономичное ®...
- Page 21 Габаритные размеры Все размеры указаны в мм Размер с крышкой — 86 мм Вниманию подрядчиков! Для прокладки электропроводки Вид сверху пользуйтесь имеющимися в корпусе заглушками. Сверление дополнительных отверстий в корпусе может привести к повреждению электронных компонентов внутри панели. Вид слева Вид...
