Part #21145
CONTOUR SCT
®
SURFACE CONDITIONING TOOL
INSTRUCTIONS
Patent #D814,261

Advertisement

Table of Contents
loading

Related Manuals for Eastwood CONTOUR SCT

Summary of Contents for Eastwood CONTOUR SCT

  • Page 1 Part #21145 CONTOUR SCT ® SURFACE CONDITIONING TOOL INSTRUCTIONS Patent #D814,261...

  • Page 2: Specifications

    The EASTWOOD CONTOUR SCT is a heavy-duty professional quality tool ruggedly designed for many years of reliable service. Ready for surface conditioning or any paint or rust stripping project, it features a drum guard enclosure and a rigidly mounted "D" handle for maximum safety.

  • Page 3: Important Safety Information

    Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. To order parts and supplies: 800.343.9353 >> eastwood.com...

  • Page 4: Electrical Safety

    Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
  • Page 5 5) SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. To order parts and supplies: 800.343.9353 >> eastwood.com...

  • Page 6: Additional Safety Information

    • Always make sure the workpiece being buffed/cleaned/sanded is securely clamped or anchored to allow two handed operation of the tool. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...

  • Page 7: Operation

    Motor Housing. To the left = Low (1), to the right = High (6) (FIG 1). 2. While holding the Contour SCT securely in two hands, depress the On-Off switch with forefinger (FIG 1). IMPORTANT NOTE: The built-in Soft-Start feature will cause a slight delay in motor starting and gradually increase in speed.

  • Page 8: Installation

    FIG. 2 Drive Lock Button Unplug unit before replacing drum. REMOVAL 1. Unplug Contour SCT from power supply before beginning. 2. Depress the Drive Lock Button on the left side of the gearcase (FIG 2). 3. Place the included 8mm Hex Key Wrench into the Socket Head Cap Screw on the right side of the Drive Armature (FIG 3).

  • Page 9: Maintenance

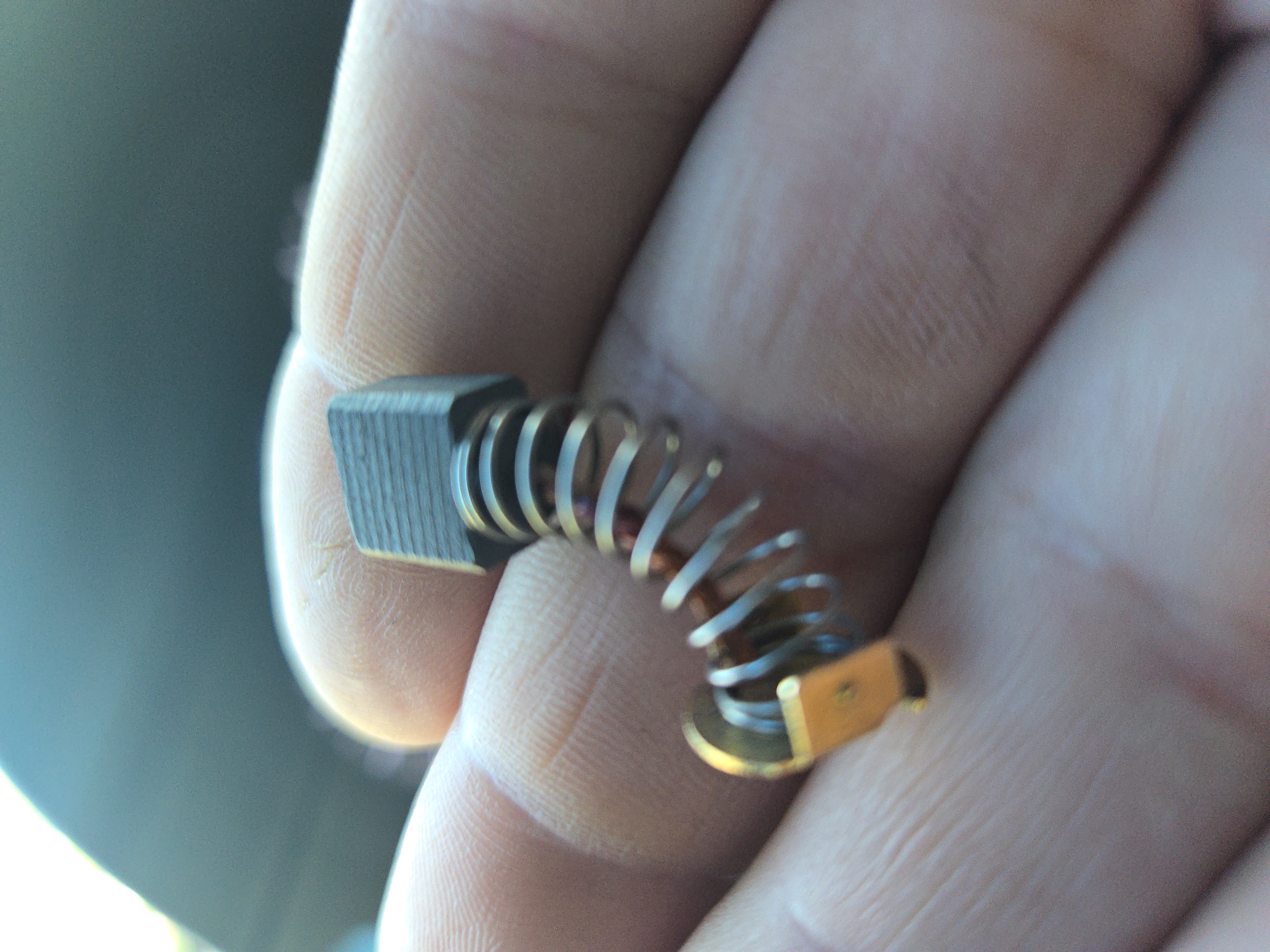

    NOTE: If motor fails to start as trigger is depressed after extensive use, the Motor Brushes likely need to be replaced. 1. Unplug Contour SCT from power supply. 2. Remove the Brush Caps (one each side) with a small screw driver (FIG 5).

  • Page 10: Troubleshooting

    CORRECTION No Power Check 120 VAC input plug connection. Does Not Run When Switch Tripped Circuit The Contour SCT operates on a 15 Amp minimum is Turned On Breaker circuit, 20 Amp is strongly recommended. Motor Runs Undersized Too Slowly/...
  • Page 11 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...

  • Page 12: Additional Items

    #21976 Eastwood Contour SCT Spiral Sewn Buff Drum #21977 Eastwood Contour SCT Abrasive Flap Sanding Drum, 60 Grit #21978 Eastwood Contour SCT Abrasive Flap Sanding Drum, 120 Grit If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >>...
