2. SCHEMATIC CHECKLIST AND PCB LAYOUT DESIGN

2.1.4.2 RTC (Optional)

ESP32 supports an external 32.768 kHz crystal oscillator to act as the RTC sleep clock.
Notice:
If the RTC source is not required, then Pin12 32K_XP and Pin13 32K_XN can be used as GPIOs.
2.1.5 RF
The output impedance of the RF pins of ESP32 (QFN 6*6) and ESP32 (QFN 5*5) are (30+j10) and (35+j10) Ω
respectively. A π-type matching network is essential for antenna matching in the circuit design. CLC structure is
recommended for the matching network.
ANT1
1
2
PCB ANT
GND
Note:
The parameters of the components in the matching network are subject to the actual antenna and PCB layout.

2.1.6 ADC

It is recommended that users add a 0.1 µF filter capacitor to a pad when using the ADC function.
• Pins SENSOR_VP or SENSOR_VN will trigger an input glitch lasting for 80 ns once the temperature sensor,
or SARADC1, or SARADC2, or Hall sensor is initialized.
• It is recommended that users avoid using SENSOR_VP or SENSOR_VN as input GPIO when designing the
Espressif Systems
C22 12pF
U4
32kHz
C23 12pF

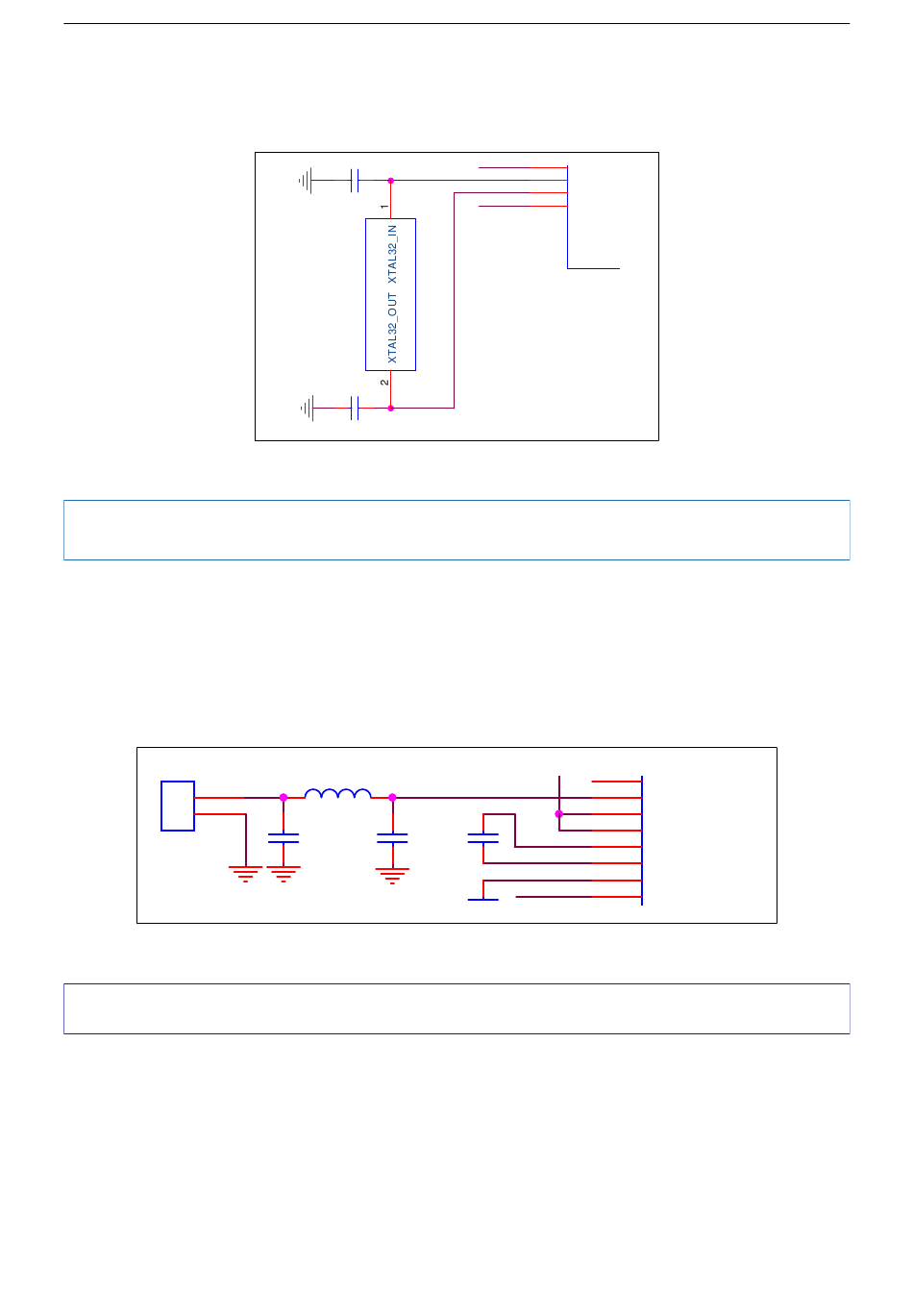

Figure 6: ESP32 Crystal Oscillator (RTC)
L4 2.7nH
C15 C14
2.0pF 2.7pF 270pF
GND
GND
Figure 7: ESP32 RF Matching Schematics
GPIO35 11
VDET_2
GPIO32 12
32K_XP
13
GPIO33
32K_XN
GPIO25 14
GPIO25
U2
C16
SENSOR_VP
SENSOR_VN
C17
CHIP_PU
12 ESP32 Hardware Design Guidelines V2.1
1
VDDA
2
LNA_IN
3
VDD3P3
4
VDD3P3
5
SENSOR_VP
6
SENSOR_CAPP
7
SENSOR_CAPN
8
SENSOR_VN
9
