Triplett Low Voltage Pro 20 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

L
V
P
ow
oLtage
ro

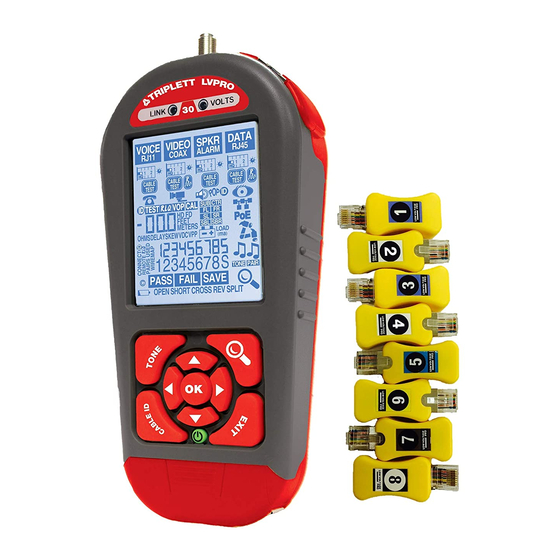

MODEL 30 SHOWN
MODEL 20
MODEL 30
MODEL 30SR
UM-LVPRO30 6/15
Test Equipment Depot - 800.517.8431
99 Washington Street, Melrose, MA 02176
TestEquipmentDepot.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Low Voltage Pro 20 and is the answer not in the manual?

Questions and answers

Related Manuals for Triplett Low Voltage Pro 20

Summary of Contents for Triplett Low Voltage Pro 20

  • Page 1 oLtage MODEL 30 SHOWN MODEL 20 MODEL 30 MODEL 30SR UM-LVPRO30 6/15 Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com...

  • Page 2: Limited Warranty

    Feet and Metric selectable. Metric setting also prints reports in metric units (Model 30). iPad, iPhone and Android are trademarks owned by their respective companies Low Voltage Pro, LVPro, Test APPs, RLQ, Return Loss Quality, LCD and icon designs and many terms used in this manual are trademarks of Triplett. Patents pending.
  • Page 3 INTRODUCTION Have you ever wanted a tester that did the whole low voltage job? A tester that has super accurate cable testing plus testing APPS for many of the low voltage devices that you work everyday? Devices such as switches, PoE, CCTV and Dolby speaker installations? If you are one of those people, then The Low Voltage Pro (LVPro) is the tester family for you.

  • Page 4: Items Included

    ITEMS INCLUDED - 10 RJ45 remotes (M30 & 30SR only) - LVPRO Main Unit - 10 Coax remotes (M30 & 30SR only) - Detachable Remote - RLQ adapters(3) (M30 & 30SR only) - F Male to BNC Male - Smart Remotes (M30SR only) - F Male to BNC Female - User Manual - RJ45 patch cable(2)

  • Page 5: Push Buttons

    PUSH BUTTONS ARROW / OK BUTTONS USE ARROWS TO DIRECTIONAL FIND TEST "D-PAD" PRESS OK START TEST CABLE TYPE SELECTION TEST APP SELECTION LVPro SUPER SCREEN SELECT CABLE TYPE HAMMERING OTHER BUTTONS LVPro IS WORKING ON / OFF PRESS EXIT STOPS TEST 60 DEGREE ANGLE (BEST VIEWING): The LVPro LCD is designed to be brightest at a 60 degree angle.
  • Page 6 CABLE TESTING APPS CABLE TESTING PACK (ALL MODELS) Includes TIA586 cable diagram, Pass/Fail, timing (delay, skew) TEST and impedance (ohms). LENGTH- PACK Get perfect length. Use built-in values or calibrate with your cable. Adds length readout to Cable Test APP (cable length, distance to open or short).
  • Page 7 DISPLAY SCREEN BY MODEL WEB UPGRADEABLE The Low Voltage Pro gives you a choice: Buy the model you wish now or upgrade it later (using the web). Below are the LCD display screens for Models 20 & 30. Trick: While the LVPro is powering up, press the TONE and DETAILS (magnifying glass) buttons to see your display.

  • Page 9: Operation

    OPERATION RJ11 COAX 2 WIRE CAT5/6 TESTS TESTS TESTS TESTS TEST TEST TEST TEST DELAYSKEWVDCVPP PAI R CABLE SELECTION DIRECTIONAL PAD (LEFT / RIGHT ARROWS) "D-PAD" TEST APP SELECTION (UP / DOWN ARROWS) ADJUST BACKLIGHT DISPLAY PRESS UP ARROW TO CYCLE THROUGH THE 2 BACKLIGHT SETTINGS HOLD THE EXIT...
  • Page 10 OPERATION - Cont. TEST APPS for both Cable and Devices. There are APPS for both the testing cable and APPS for testing devices associated with those cable types. Your LVPro Model number (20, 30, & 30SR) and possible prior upgrades determines which of the following APPS you have loaded on your tester.
  • Page 11 OPERATION - Cont. Included with the Length-RLQ APP, Return Loss Quality tests for load mismatches that affect the wire’s power and data transfer capability. It is a powerful quality test that should be used if quality problems are suspected with the cable. The RLQ test works with DATA cables and VIDEO cables.

  • Page 12: Video Devices

    OPERATION - Cont. RJ45/Clip Adapter disconnected). 2) Using the RJ45/Clips adapter, connect speaker wires to the LVPro's RJ45 port. RESULT: The icon that matches the speaker will light. Requires remote speaker remote kit. Test Active ALARM BATTERY TEST Use: Test alarm system and other backup batteries by doing a loaded battery test.
  • Page 13 OPERATION - Cont. ATTACHMENT OF TEST MODULES In the growing effort to expand the testing capabilities of the LVPro, the Model 20, 30 & 30SR are capable of the attachment of Test Modules to expand their testing capabilities. This section of the manual will explain how to attachment the module to the LVPro.
  • Page 14 CONNECT CONNECTOR TO THE TEST MODULE *DO NOT PULL ON CABLE OR CONNECTOR. CONNECT THE (2) TABS ON INSERT AT ANGLE TO THE TEST MODULE TO THE (2) ACHIEVE GOOD SLOTS ON THE LVPRO. CONNECTION. SCREW THE THUMBWHEEL INSERT THE THREADED CLOCKWISE UNTIL IT SCREW INTO THE COMES TO A STOP.
  • Page 15 1. Adds Test APPS to your LVPro: As an example, let's say you want to move from Model 20 to Model 30. For this task, LVPro Manager will link to the Triplett website to where you can select and purchase your upgrade.

  • Page 16: Toolbar Menus

    LVPro Manager Software - Cont. USING THE LVPro Manager Software: First, press button to connect to the tester. TOOLBAR MENUS Open a saved test file (.lvp file) Save a test file (.lvp file) Print test reports Exit LVPro Manager...
  • Page 17 LVPro Manager Software - Cont. Disconnect from the LVPro Delete tests from the LVPro Set the LVPro's clock Set VOP, Feet/Meters Change LVPro's firmware Click here to link to our website to view model information and upgrades available for your LVPro.
  • Page 18 CABLE TEST EXAMPLES CABLE TESTING PACK (ALL MODELS) The Cable Testing Pack is standard on all LVPro Models. TEST These following are examples of the TIA 568 test that the LVPro performs on Category cable. In addition to PASS/FAIL and wiremap that is shown here, there are also timing tests (delay, skew) and impedance measurement (ohms).
  • Page 19 CABLE TEST EXAMPLES TECHNOLOGY FOR PERFECT CABLE TESTING The LVPro employs the latest technology to get you the TEST highest quality testing for your low voltage projects at the best price. The TIA 568 tests, PASS/FAIL, wiremap, timing tests (delay, skew) and impedance measurement (ohms) are standard on all Low Voltage Pros.
  • Page 20 GLOSSARY "OHMS" Cable impedance The high-frequency nature of 21st century CATV and data signaling requires cabling that preserves the integrity of the signal between trans- mitter and receiver. This requires a good impedance match along the transmission route. Standard Cat5, Cat5e and Cat6 data cables employ twisted pair transmission lines, with a specified 100-ohm characteristic impedance on each pair.
  • Page 21 GLOSSARY "VOP" Velocity of Propagation All cables, no matter what type, have a VOP. It is usually listed on the cable's datasheet. Or, the LVPro's Length-RLQ APP can measure it in what we call VOP "CAL" mode. The best way to describe VOP is to relate it to "Propagation delay"...

  • Page 22: Specifications

    SPECIFICATIONS Cable Types Tested (All LVPro models) Shielded and unshielded twisted pair. All cable categories. Coax. All types. Telephone. Speaker and alarm wire. Cable Tests (All LVPro models) Opens, shorts, reversals, split pairs, wiremap, propagation delay, skew, ohms. Feet and meters selectable. Advanced Cable Tests (All LVPro models) Length and distance to fault.
  • Page 23 PART NUMBERS/CONTENTS Low Voltage Pro Model 20 - PN: LVPRO20 Total test apps 7. Upgradeable to Model 30 (factory or web). Low Voltage Pro Model 30 - PN: LVPRO30 Total test apps 13. USB cable is used to transfer test reports. Low Voltage Pro Model 30SR - PN: LVPRO30SR Total test apps 13.

  • Page 24: Pin Numbers

    Category Cable Appendix A. Color code for Category cable RJ45 Connectors (sockets and plugs): The Base-T Standard uses RJ45 sockets and plugs. The RJ45 socket has 8 pins. The pins are numbered 1 to 8. Looking at the socket with insertion key facing down, pin number 1 is to the left.
