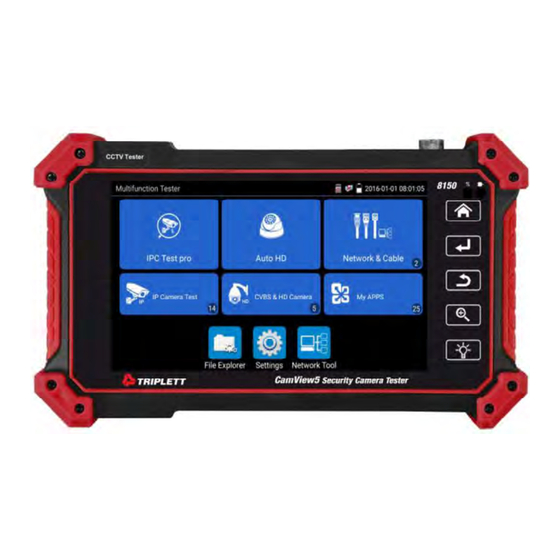

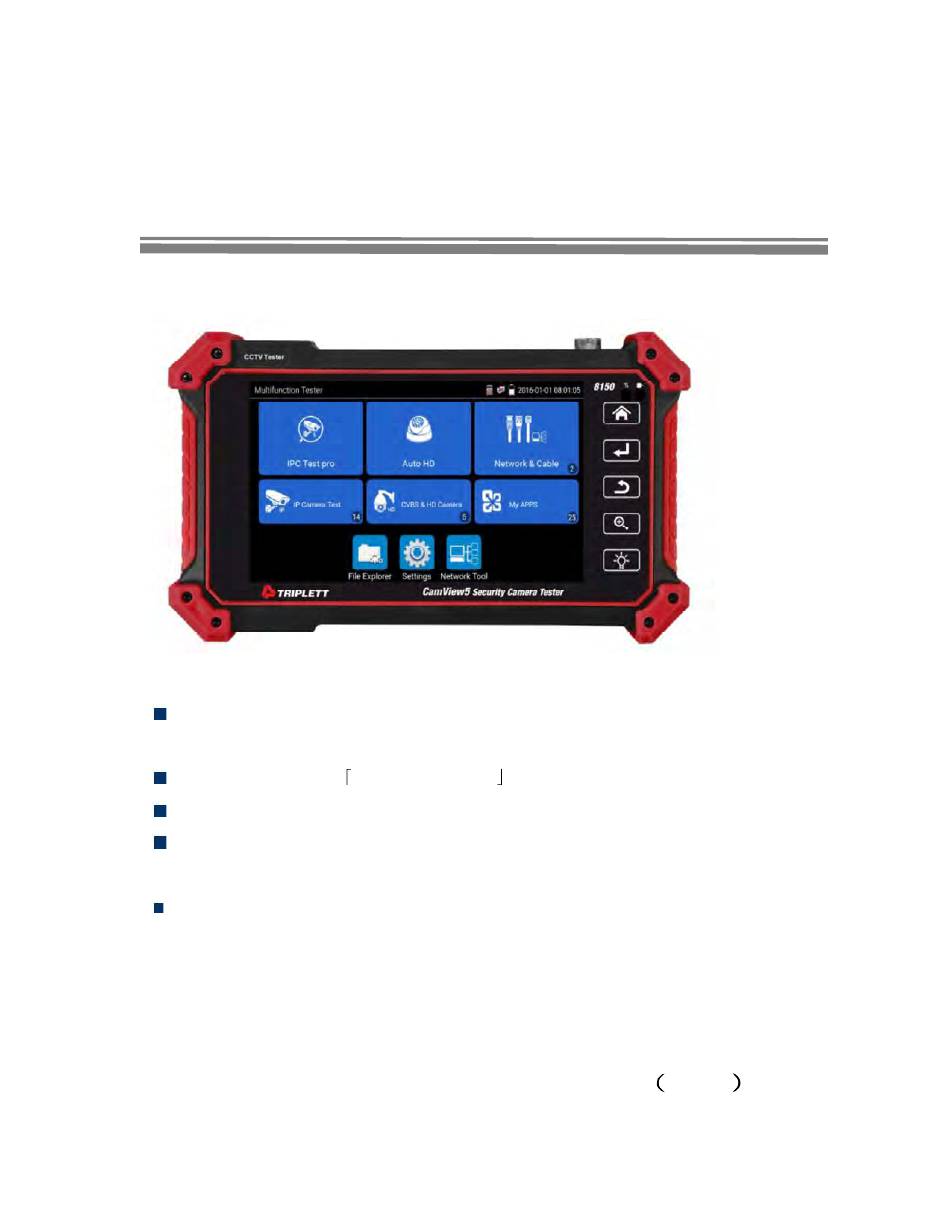

8150 CAMVIEW5 CCTV TESTER
User Manual
Thank you for purchasing the IP camera tester. Please read the manual before
using the IP camera tester.
Please first read the Safety Information carefully in the manual.
The manual should be kept with unit in case reference is needed.
Keep the S/N label for after-sale service within warranty period. Product without
S/N label will be charged for repair service.
If there is any question or problem while using the IP camera tester, or damage to
the product, please contact our technical department.
V01.00
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com
Advertisement
Table of Contents
Related Manuals for Triplett 8150-BR-KIT
Summary of Contents for Triplett 8150-BR-KIT
- Page 1 8150 CAMVIEW5 CCTV TESTER User Manual Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester. Please first read the Safety Information carefully in the manual. The manual should be kept with unit in case reference is needed. Keep the S/N label for after-sale service within warranty period.
-
Page 2: Table Of Contents
CCTV TESTER User Manual 1. Safety information .....................1 2. IP Camera Tester Introduction ...................1 2.1 General ......................1 2.2 Packing list ......................1 2.3 Function interface ....................2 3. Operation ........................3 3.1 Installing the Battery ..................3 4. IP camera test ......................3 4.1 Power output .....................3 4.2 IPC Test pro ......................4 4.3 IP discovery.......................4 4.4 Rapid ONVIF test .....................5... -
Page 3: Safety Information
CCTV TESTER User Manual 1. Safety information The tester is intended for use in compliance with the local rules for electrical testers. To prevent the functional failure, the product should not come in contact with water. The exposed part of the tester should not be exposed to any liquids. During transportation and use, avoid vibration of the tester. -
Page 4: Function Interface
CCTV TESTER User Manual 2.3 Function interface Menu key Confirm key Return: Return or cancel while setting parameters of the menu 4x zoom the image display LED light The RS485 data transmission and received indicator lights red while the data is being transmitted or received. -
Page 5: Operation
CCTV TESTER User Manual Press more than 2 seconds to turn on or off, short press to turn on or off the menu display Micro SD card removeable, supports up to 32G DC12V 3A power output, temporarily supply power to the camera PoE power supply output/LAN test interface HDMI output Video image /AHD/TVI/CVI signal input BNC interface... -
Page 6: Ipc Test Pro
CCTV TESTER User Manual 4.2 IPC Test pro Camera test often needs to open multiple apps, "IPC TEST PRO" app, using new technology and combing multiple functions into one APP, can increase efficiency. Application: Support multi-segment IP address scan, can visually display camera brand, click IP address to display the image. Can supply the power to PoE camera. -
Page 7: Rapid Onvif Test
CCTV TESTER User Manual Local IP: auto- Discovery IP: is connected to the tester directly, the IP address, if the tester connects to Local Area Network, it displays the current IP address. Start: ONVIF: Rapid ONVIF Quick link. IPC TEST: IPC TEST Quick link, Non-OnVIF IP camera test. 4.4 Rapid ONVIF test Rapid ONVIF can dis s mainstream. - Page 8 CCTV TESTER User Manual Confirm: Save the modified parameters. icon to open camera setting. ge to access the following tools: Snapshot, Record, Photo, Playback, Lens simulation, PTZ and Settings. the IP address. Some cameras cannot support change IP address, so there is no change Network setting: after saving.
- Page 9 CCTV TESTER User Manual After selecting a channel, you can edit the channel name, modify the display position, and switch the font size. S Content location - Click to save the modification. Press return key or click any area on the screen to return to the previous interface. Video files can play in the Video player on the main menu.
-
Page 10: Non-Onvif Ip Camera Test
CCTV TESTER User Manual Doc: Click "Create , to create a test report document for the camer Enter the camera test information, click "Create Document" to complete the report. Click doc menu again, you can preview the report document. Icons description: The description of function icons on the bottom toolbar. 4.5 Non-OnVIF IP camera test... -
Page 11: Analog Camera Test
CCTV TESTER User Manual IP camera type: Click on the IP Camera type to select the manufacturer and model number of the connected IP camera. Manual: Click IP camera type, list Honeywell, Kodak, Tiandy, Aipu-waton, ACTi, WoshiDA IP camera etc. If the brand has official original protocols, pls select camera type, input IP camera address, username and password, click display interface. -
Page 12: Cvi Camera Test
CCTV TESTER User Manual 5.3 CVI camera test When HD CVI signal input, the tester will display the image resolution at the top of the screen. Double tap on the screen to display the image in full screen. The tester supports resolution up to 3840 x 2160P 12.5/15 FPS. 1 PTZ control 1.1 Coaxial PTZ control Click the icon... -
Page 13: Tvi Camera Test
CCTV TESTER User Manual 2 Coaxial camera menu setting or click the icon to call the dome camera menu. set the parameters by 5.4 TVI camera test When using an HD TVI signal input, the tester will display the image resolution at the top of the screen. Double tap on the screen to display the image in full screen. -
Page 14: Ahd Camera Test
CCTV TESTER User Manual Input calling dome camera menu address code, after finishing the parameter settings, you can press the key or click the icon call the dome camera menu. 5.5 AHD camera test When using an AHD signal input, the tester will display the image resolution at the top of the screen. Double tap on the screen to display the image in full screen. -
Page 15: Network Tool
CCTV TESTER User Manual 6.1 Network tool (1) IP address scan Connect the cable to the LAN port, click icon to enter, set your IP address search range by changing the Start and End IP addresses. pen ports. (2) PING Test Application: PING testing is the most conventional network debugging tool. -
Page 16: Rj45 Cable Tdr Test
CCTV TESTER User Manual (6) Trace route It is used to determine the path of the IP packet access target. Note: Trace route testing results only for reference, for accurate test route tracking, use a professional Ethernet tester. (7) Link monitor This app is used to see if an IP address is occupied by other network devices. -
Page 17: Poe Power / Dc12V 3A Power Output
CCTV TESTER User Manual Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed. The number of the cable tester is 255. -
Page 18: Update
CCTV TESTER User Manual 1. Do not 2. Do not output the DC12V/3A power into the DC12V/IN port of the IP camera tester. 3. The IPC tester power output is close to 3 3A, the tester will auto enter protection mode. Disconnect all tester connections and then connect the tester with the power adaptor to continue. -
Page 19: System Setting
CCTV TESTER User Manual You can choose internal or external SD card. For other operation details, refer to FTP settings. 6.7 System Setting Language: Select your desired language: English, Chinese, Korean, Russian, Italian, Polish, Spanish, French or Japanese. Typewriting: You can select typewriting or install other typewriting: Date/Time: Set the Date/time of the IP tester. - Page 20 CCTV TESTER User Manual Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings. Volume: Set volume level SD Card: Displays SD Card Capacity. You can also format the SD card or unmount it before removing it. FTP server: Once the IP tester connects to a network, a computer can be used to read the SD card files via FTP.
-
Page 21: Hdmi Out (*Optional)
CCTV TESTER User Manual 6.8 HDMI out The built in HDMI output port can output live video from an analog or IP camera, recorded files, media files and images to HDTV monitors. Connect an HDMI cable from the IP tester to an HDTV monitor at any time. It supports up to 3840x2160P 30FPS resolution. 7. - Page 22 CCTV TESTER User Manual 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD men 1 channel AHD input BNC interface , resolution support 8MP AHD camera test, AHD video signal 3840 x 2160P 15 FPS, 2592x1944p12.5/20fps, test 2560x1440p 18/25/30fps, 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD menu Analog video test...
- Page 23 CCTV TESTER User Manual Working Temperature Working 30%-90% Humidity Dimension/Weight 183mm x 110mm x 36.5mm /0.32kg GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 24 User Manual SBR2M Security Camera Tester Borescope 2M (6.5ft) 8mm Diameter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 25 Introduction Congratulations on your purchase of the Triplett SBR2M Security Camera Tester Borescope. This borescope paired with any security camera tester adds a borescope function to your security camera tester. Features Waterproof (IP67) 8mm camera (Lens only) 2m cable (6.5ft)
- Page 26 **Note: The image below is for Reference Only The SBR2M is shown being paired up with the Triplett 8150 CAMVIEW IP PRO 5" FULL TOUCH SCREEN 8MP HIGH RESOLUTION SECURITY CAMERA** Part Number 8150-BR-Kit includes (1) SBR2M and (1) 8150.
- Page 27 Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This...
