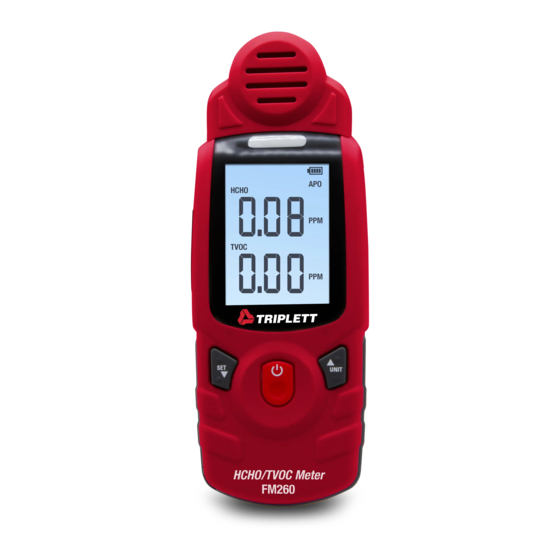

Triplett FM260 User Manual

Formaldehyde (hcho or ch20) and total volatile organic compounds (tvoc) tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

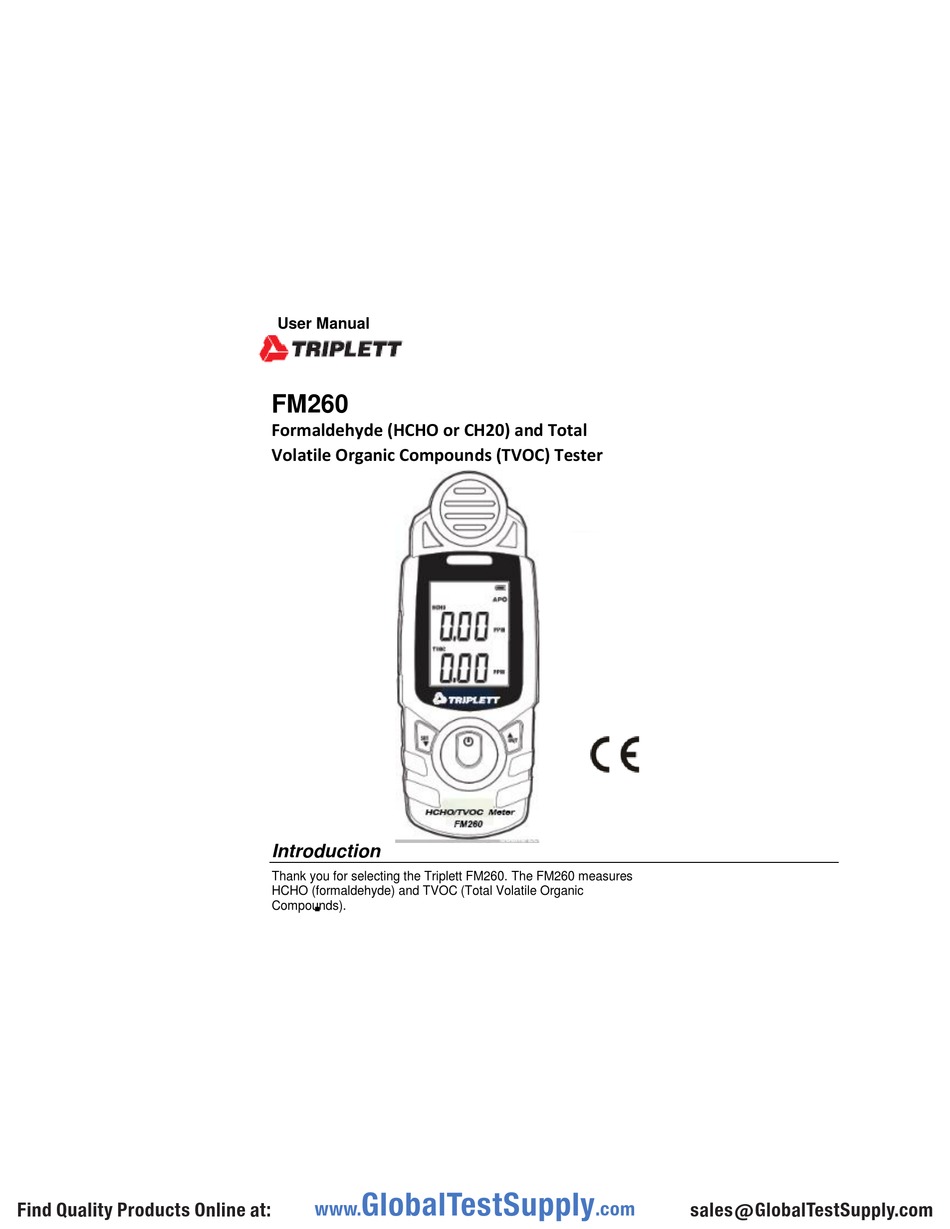

User Manual
FM260
Formaldehyde (HCHO or CH20) and Total
Volatile Organic Compounds (TVOC) Tester
Introduction
Thank you for selecting the Triplett FM260. The FM260 measures
HCHO (formaldehyde) and TVOC (Total Volatile Organic
Compounds).
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triplett FM260

Summary of Contents for Triplett FM260

  • Page 1 User Manual FM260 Formaldehyde (HCHO or CH20) and Total Volatile Organic Compounds (TVOC) Tester Introduction Thank you for selecting the Triplett FM260. The FM260 measures HCHO (formaldehyde) and TVOC (Total Volatile Organic Compounds).  GlobalTestSupply www. .com Find Quality Products Online at:...

  • Page 2: Meter Description

    Potential sources for TVOCs include paints, finishes, adhesives, cigarette smoke, pesticides, personal care products, car exhaust, new furnishings, wall coverings, household cleansers, and cooking fuels. Chemicals include: Acetone, Ethylene Glycol, Formaldehyde, Xylene, 1,3‐butadiene, Tetrachloroethene, Hydrogen Sulfide, Ammonia, Toluene, Benzene, Methylene Chloride, Perchloroethylene, and MTBE. Features ...

  • Page 3: Operation

    Operation POWER THE METER Press the button to turn on the meter. The battery symbol informs the user as to the battery strength. Connect the battery charger to recharge the battery. Long press the button to power off. The LCD will count down: 3, 2, 1, then OFF before switching off.
  • Page 4 In normal mode, the top display indicates the HCHO concentration in PPM or mg/m³. The bottom display indicates the TVOC concentration in PPM or mg/m³. Use the UNIT button to switch units between PPM and mg/m³. With the meter on, if the measured HCHO concentration exceeds the high or low user‐...

  • Page 5: Control Buttons

    CONTROL BUTTONS Short press the ▼SET button to silence the beeper (when it is sounding) or to disable/enable the alarm beeper. This button is also used as a down arrow to change the high and low Alarm threshold values in the Alarm Setup mode. Long press the ▼SET button to enter the Alarm Setup Mode (See Alarm Setup section).

  • Page 6: Cleaning And Storage

    Battery Safety Notes: Please dispose of batteries responsibly; never dispose of batteries in a fire, batteries may explode or leak. If the meter is not to be used for 60 days or more, remove the battery and store separately. Never dispose of used batteries or rechargeable batteries in household waste.

  • Page 7: Specifications

    Specifications Sensor Professional Fuel Cell technology HCHO Range 0.00 to 5.00 mg/m³ (or PPM) HCHO Resolution 0.01 mg/m3 (or PPM) HCHO Basic Accuracy ±5% FS TVOC Range 0.00 to 9.99 mg/m³ (or PPM) TVOC Resolution 0.01 mg/m³ (or PPM) TVOC Basic Accuracy ±5% FS Response Time...

  • Page 8: Warranty

    Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
