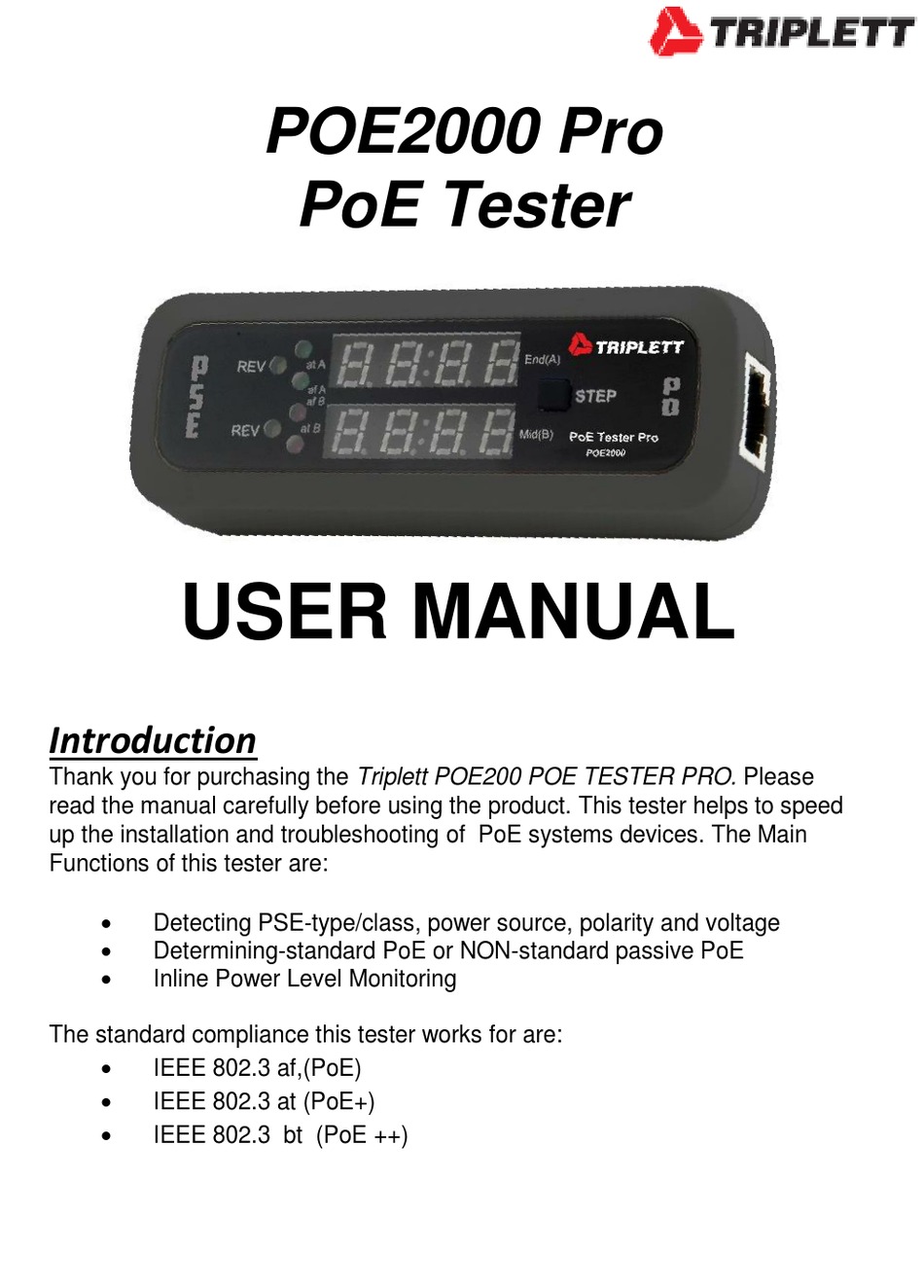

Triplett POE2000 Pro User Manual

USER MANUAL

Introduction

Thank you for purchasing the Triplett POE200 POE TESTER PRO. Please
read the manual carefully before using the product. This tester helps to speed
up the installation and troubleshooting of PoE systems devices. The Main
Functions of this tester are:

Detecting PSE-type/class, power source, polarity and voltage

Determining-standard PoE or NON-standard passive PoE

Inline Power Level Monitoring
The standard compliance this tester works for are:

IEEE 802.3 af,(PoE)

IEEE 802.3 at (PoE+)

IEEE 802.3 bt (PoE ++)

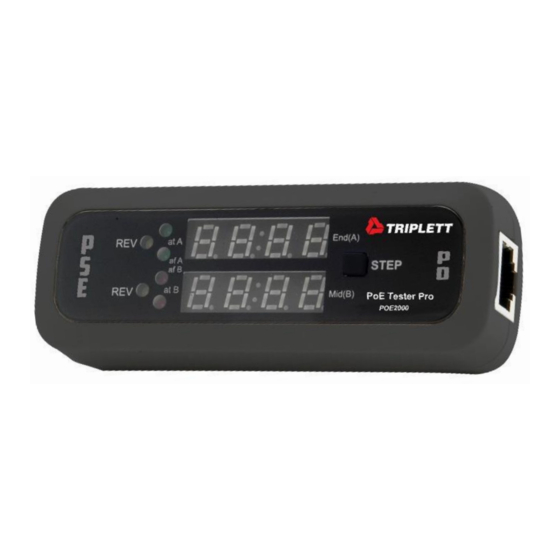

POE2000 Pro
PoE Tester
