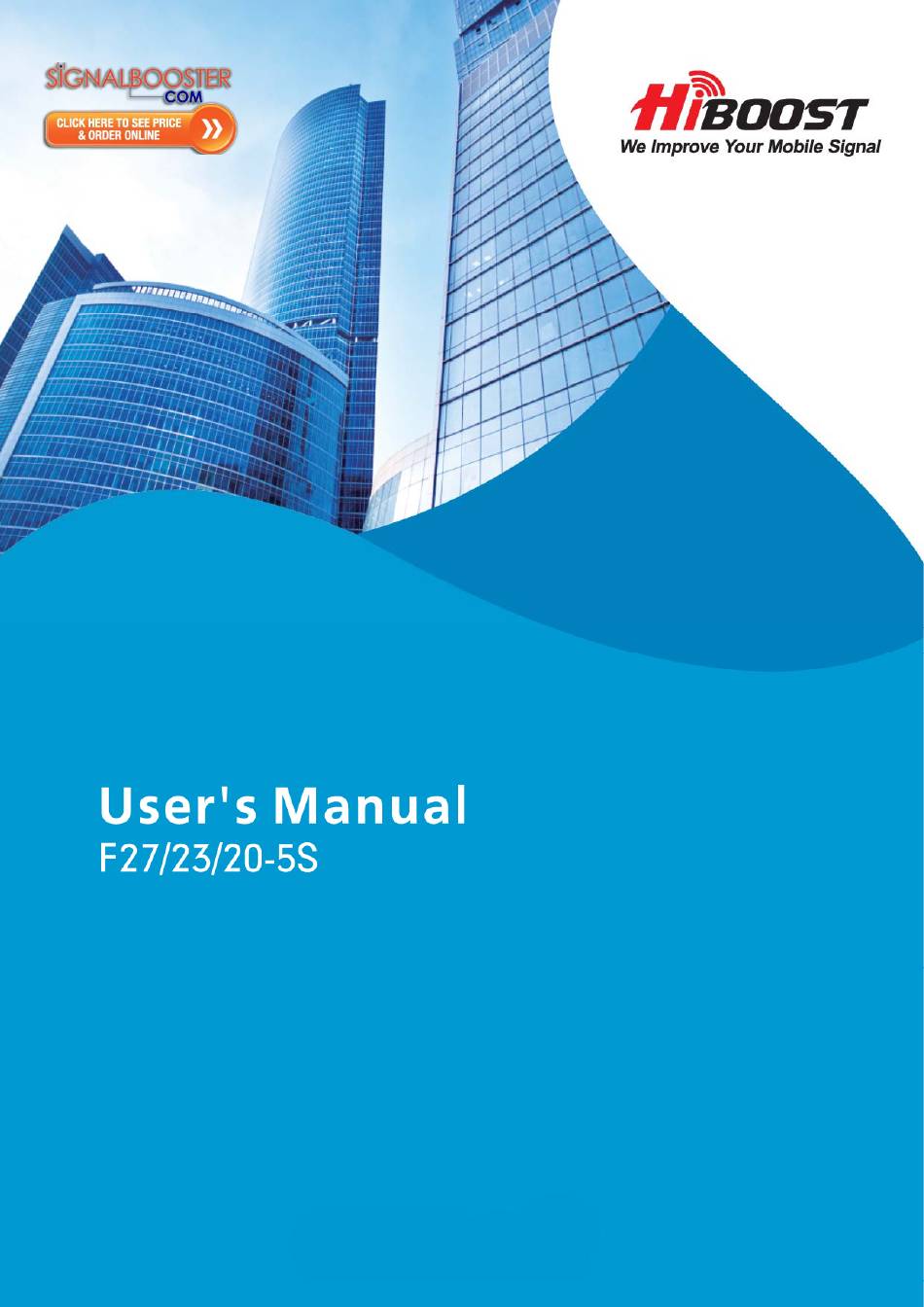

  • Page 1 BOOST CELL PHONE SIGNAL BOOSTERS MADE BY HUAPTEC...

  • Page 2: Table Of Contents

    Package contents Features Booster’s port description LCD Introduction Control Button Operations Manual Gain Control (MGC) Install HiBoost Booster System Before you install Installation overview 1. Install Outdoor Antenna 2. Install Indoor Antenna 3. Install the signal booster 4. Booster Commissioning...

  • Page 3: How It Works

    How it works F27-5S is designed to help mobile users amplify weak signals of 2G, 3G and 4G. They are bi-directional ampli ers. The donor antenna receives the signals from the cell tower, ampli es it, and transmits to the signal booster. Then the indoor antenna will receive the signal and retransmit it to your mobile device.
  • Page 4 Multiple antenna installation Sample 1. Outdoor Antenna 2. Booster 3. Indoor Panel Antenna 4. Coupler 5. Splitter 6. Omni ceiling antenna Optional antenna kits Recommended RF cables (wide band) Yagi/ LPDA Antenna Panel Antenna Dome Antenna Panel Antenna Omni Ceiling Antenna Whip Antenna Lightning Protector Coupler...

  • Page 5: Features

    Cavity Splitter (2,3,4 way) Wilkinson Splitter (2, 3, 4 way) Features Embedded CPU, self-adaptive intelligent system to make booster system very easy to install and better performance is guaranteed under complex and constantly charging RF environment. ISO: Intelligent isolation processing to avoid self-oscillation, quite wide adjusting range to stabilize the signal strength/ quality for clearer voice/ higher data speed and avoid interference to mobile network.

  • Page 6: Lcd Introduction

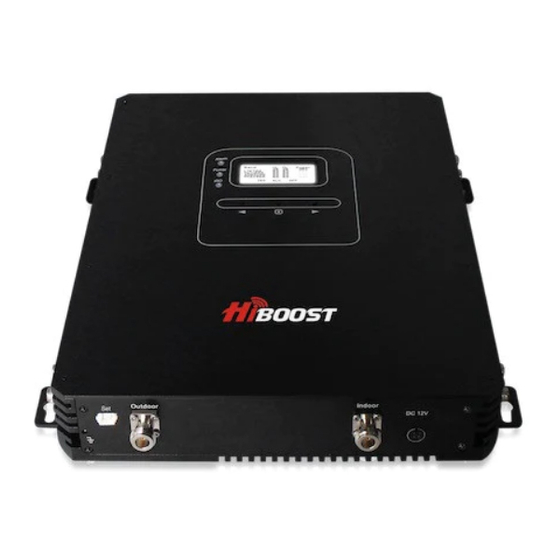

    1. LCD 2. Control Button 3. LED indicators 4. Outdoor antenna port 5. Indoor antenna port 6. Power connector LCD Introduce After the booster is on, gain and power will light up on the screen. "Band" - Displays the working frequency. Find below the list of frequencies displayed corresponding to the networks.
  • Page 7 "Power dBm" - Power indication. The displayed value shows real-time power. When booster's output power is lower than -10dBm, the value will display “---“. "ISO" - Isolation alarm indication. When the booster doesn't have enough isolation between the outdoor and indoor antennas, the "ISO"...

  • Page 8: Control Button Operations

    Control Button operation There are 4 operation modes: Long press on "Query" key, short press on "Query" key, short press on "UP" and short press on "DOWN" key. When LCD is in the xed display mode, press "Query" key for 3s and it will start up Setting Mode. Press "Query"...

  • Page 9: Install Hiboost Booster System

    5dB less than downlink gain, uplink gain shouldn't be more than downlink gain in order to avoid interference with mobile network. Install Hiboost Booster system Before you install Make sure you have su cient cable length between proposed outdoor/indoor antennas and the booster in case you don't purchase standard kits.

  • Page 10: Install Outdoor Antenna

    1. Install Outdoor Antenna 1.1 How to nd the place with the strongest receiving signal. The booster's main function is to improve weak RF signal inside a house, o ce or any other indoor area. The receiving strength of outdoor antenna and the strength of the signal reception outdoors directly a ect the e ciency of indoor coverage.
  • Page 11 Mobile Phone Method. You can use mobile telephone to test signal strength near the window or on the top of the building. The number of bars on network indicator will de ne approximate strength of the received signal. Normally the roof of the building is the best place to receive the strongest signal.

  • Page 12: Install Indoor Antenna

    Note: Wrap waterproof tape around the connectors between outdoor antenna and feeder line to avoid water or other kind of damage. 2. Install Indoor Antenna. 1.1 How to nd the place with the strongest receiving signal. Select indoor panel antenna or omni-ceiling antenna as an indoor antenna according to your needs to provide indoor coverage.

  • Page 13: Install The Signal Booster

    Step 1. Drill a hole in the ceiling. Step 2. Unscrew a xing nut from the antenna. Pass the antenna cable through the hole. Screw the xing nut back onto the antenna, leaving the cable in the ceiling crawl space, and fasten. Step 3.
  • Page 14 booster starts its initialization to check it is receiving signal and the isolation status to ensure its best performance. This will take around 3-5 seconds. After the booster start up, please check whether the coverage is good. If it is good, the booster system installation is complete.
  • Page 15 ISO status indicates if the booster has enough isolation between outdoor and indoor antennas in order to avoid loop back or so-called self-oscillation. Thanks to intelligent software, HiBoost is fully protected from interference with operator mobile networks. "ISO" ashing on LCD display means that ISO function is working great and the self-oscillation has been eliminated.
  • Page 16 More about "ALC" indication: ALC indicates the strength of receiving signal level or receiving power of the booster. Flashing ALC means that the booster has strong receiving signal. Status Meaning Solution Methods Remain still Output power Check coverage, leave it as it is not weak or is if it is good;...
  • Page 17 More about LCD indication: Status Meaning Solution Methods Output power Check coverage, leave it as it is if it is lower than is good; take the actions mentioned -10dBm below to increase receiving signal level if coverage is not good. 1.
  • Page 18 Status Meaning Solution Methods Green No loop back or NO action is needed no self-oscillation Slow Flashing Slight loop back NO action is needed Green or self-oscillation Quick Flashing Deep loop back Not working properly Green or self-oscillation ISO LED Quick Flashing Severe loop back Check coverage, leave it as it is if it is...
  • Page 19 perfect working status which means the booster has full output power that can have optimal coverage. Status Meaning Solution Methods Green Output power Check coverage, leave it as it is if is not full it is good; if coverage is not good, please increase receiving signal level Slow Flashing...

  • Page 20: Trouble Shooting

    Please install more indoor antennas or replace with a booster of higher power level. 2) If the signals in small part of areas have not been improved, please check below: Check whether indoor antenna is installed correctly or not. You may try to move the antenna location to improve coverage.

  • Page 21: Speci Cations

    Returned Material Authorization (RMA) number supplied by HiBoost. HiBoost will supply two options, repair or replace. HiBoost will take charge of delivery for the consumers located within the continental U.S.A.

  • Page 22: Fcc Rf Exposure Statement

    All HiBoost products that are packaged with other HiBoost accessory products are intended for resale and used as a single use. Such product kits are required to be sold to the end users as packaged. RMA numbers may be obtained by contacting Technical Support.

  • Page 23: Warnings

    Warnings Users must follow the below principles: Booster should follow system requirement of communication equipment, assure good grounding and lightning protection. The power supply voltage of booster should meet the standards of security requirement; any operation shall be carried out only after cutting o power in advance. Only the professional is authorized for the operation.
