QUICK INSTALL GUIDE
This quick install guide is intended for professional installers that
are generally familiar with the installation of cellular signal booster
systems that include bi-directional amplifiers, indoor and outdoor
antennas, signal splitters and coaxial cable. Additional details can
be found in the user guide
This amplifier has a very intelligent Automatic Gain Control System
(ALC and ISO) to adjust its uplink and downlink gain in each band to
prevent self-oscillations, optimize gain to prevent overload from
nearby high-power towers and to make installation virtually 'plug and
play'.
Online Video
Please view the instructional video at
https://www.hiboostusa.com/en/resource-center
.
It provides an overview of the amplifier, its features and information
about the controls and displays.
Main Elements and Typical Installation

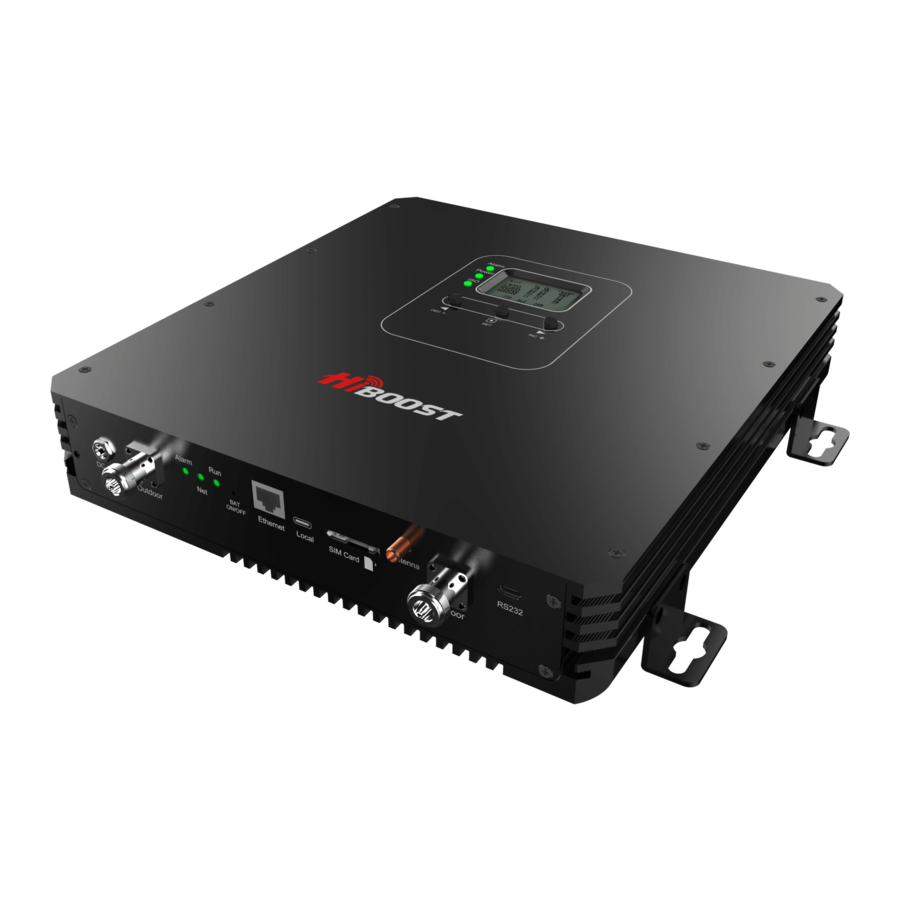

Figure 1. shows the main elements of the amplifier that includes the
LCD panel, manual gain controls, indicator LEDs and the
OUTDOOR and INDOOR antenna ports which are type-N female
connectors. Figure 3 shows a typical system setup. Please use this
diagram as a general guide
LCD Display
When the amplifier is first powered on the LCD panel display will
turn on for 5 minutes. It is shown in Figure 2. If it is not ON press
the SET button momentarily.
General Specifications
Maximum Gain:
Uplink (80dB)
Downlink (83dB)
Maximum Output Power: Uplink (20dBm)
Downlink (27dBm)
Bands Covered: LTE 700, Cell 800, PCS 1900, AWS 2100
Power: Input AC (100-240 VAC), Output DC (12Vdc, 7 amps)
