2 Assemble Y axis

2.1 Assemble the rods of a Y axis

Step1. Assemble the 2 threaded rods.

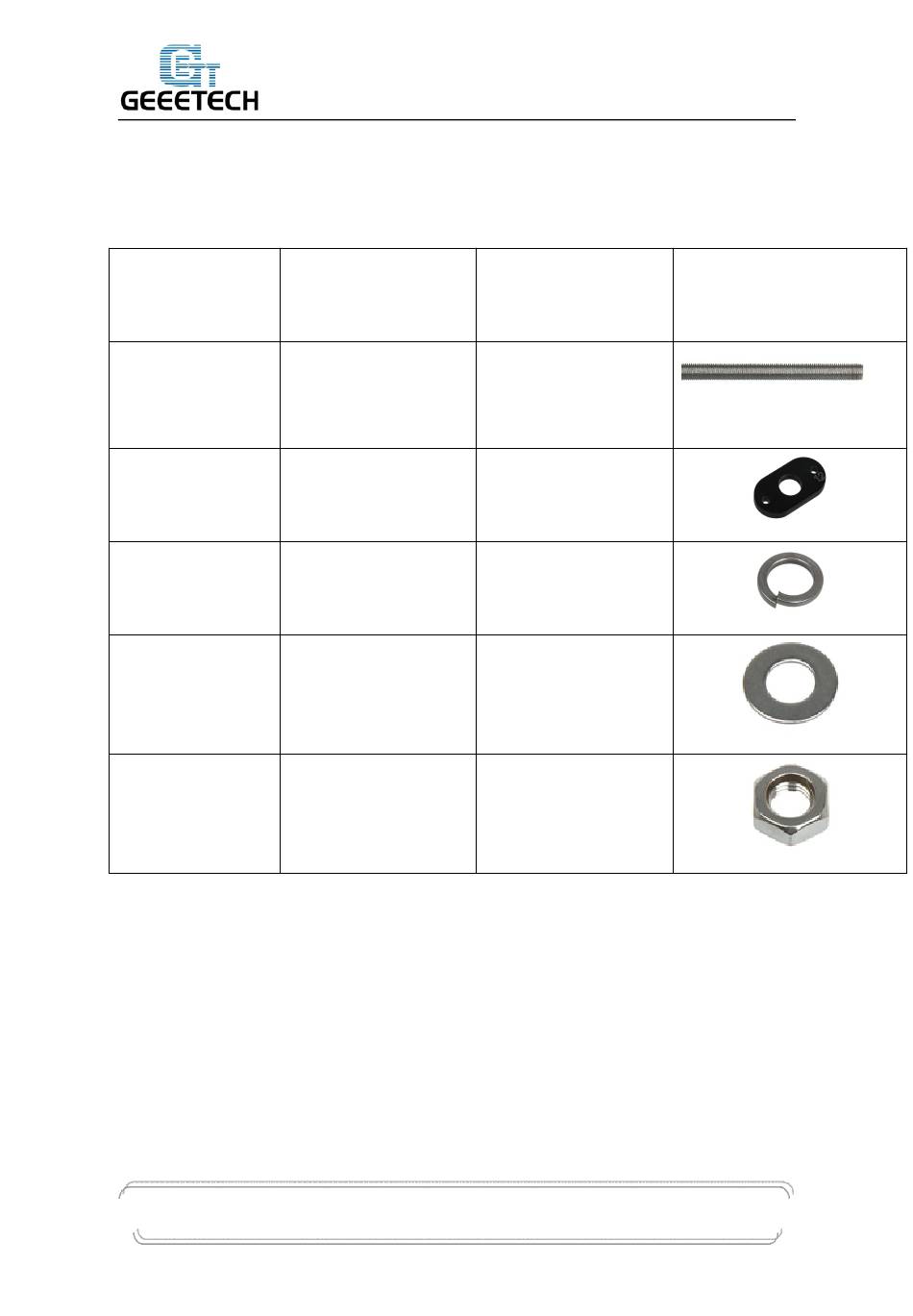

Required
parts
M10 threaded rod
Y plate connecting
plate
M8 spring washer
M10 washer
M10 nut
Thread the nuts and washers into the two M10 threaded rods separately. The order
should be:
1) Thread the acrylic fender (Y plate connecting plate) in the middle.
2) Thread the M10 washer > M8 spring washer >M10 nut > M10 nut > M10 washer
on the left
www.geeetech.com
Shenzhen GETECH CO.,LTD
GEEETECH
Required
number
2
2
6
8
8
Tel: +86 755 2658 4110
Part ID
NO.5
NO.A14
NO.18
NO.9
NO.12
Fax: +86 755 2658 4074 - 858
Pic
