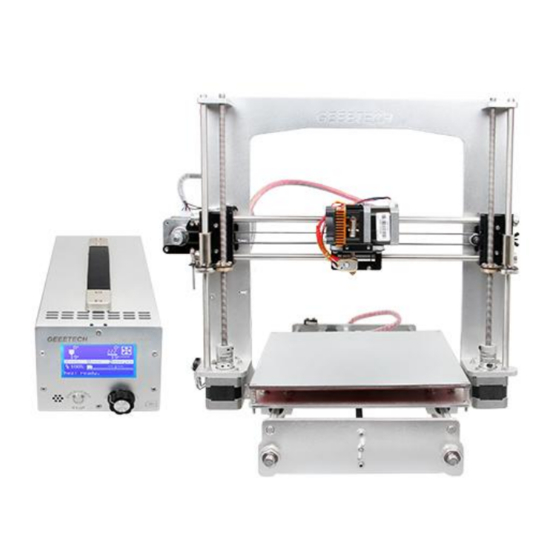

- Page 1 GeeetechPrusa I3 A pro 3D Printer...
-
Page 2: Copyright Declaration
CO., LTD. (hereinafter referred to as the "Geeetech"), and all rights reserved. No part of this specification should be reproduced or extracted in any forms or means without the prior written consent of Geeetech by any company and individuals. Technical Support... - Page 3 INSTRUCTION: This Prusa I3 A pro 3D printer is modified and optimized based on the previous Geeetech Prusa Aluminum I3 3D printer.
-
Page 4: Package List
GEEETECH As you can see, the most obvious modification is that we add a 3-in-1 3D printer control box for this Prusa I3 A pro which gathers the motherboard, power supply and LCD Cpanel in one box, saving the space taken by the printer and bringing you a neat and organized... - Page 5 GEEETECH not damaged during shipping. If anything is missing please contact with our customer service straight away, provide us the NO. , Name, and Qty. Mechanical parts Name Specifications D8*L322mm Smooth Rod Z-axis D8*L390mm Smooth Rod X-axis D8*L410mm Smooth Rod...
- Page 6 GEEETECH Lock nut Wing nut Z-axis nut M8（tin-bronze） screw M2.5x8mm screw M2.5x12mm Screw M3x6mm Screw M3x8mm screw M3x10 mm screw M3x16 mm screw M3x20 mm screw M3x25mm screw M3x45 mm Screw M4x6 mm screw M4x 12 mm screw M4x25 mm...
- Page 7 GEEETECH Lock screw M3x4 mm Lock ring With M4x4 mm jimmy bolt length 20mm Spring Linear Bearing PCS8UU Linear Bearing LM8LUU LMH8LUU Linear Bearing MR84zz Ball Bearing Placed in No.38 Driven wheel Sheet metal part holder...
- Page 8 GEEETECH Driving wheel Belt mount Sheet metal part Coupling 5-8mm 20tooth Inner Pulley diameter=5mm Timing Belts L=900mm Belt bracket With Aircraft Spacer type end 2-pin End stop Blue,red and black,300mm...
- Page 9 GEEETECH For the fan Extension Of control board wire 30cm Spiral Coil 3 meters Nylon ties Heat bed set 1set Aluminum 217mmx217mm plate x3mm AC Input: 115V/1.5A Control Box 230V/0.75A DC Output： 12V/20A 3D Power Plug...
- Page 10 GEEETECH Extruder extruder Stepper 42SHD0217-24 motor B 1.5A(U) USB cord A-BA Aluminum Plates XZ Frame I3-01-A Y Front Side I3-02 Support Y Rear Side I3-03 Support...
- Page 11 GEEETECH Z Motor Fixed I3-04 Plate Z Top Support I3-05 plate Y Building I3-20 platform Y Motor Fixed I3-09 Plate Guide BlockA I3-11 Guide BlockB I3-10...
- Page 12 GEEETECH Connecting I3-07 fender Sheet metalpart X-axis left left right X-axis right PI3F-S07 X Carriage Bearing PI3F-08 Bracket...
- Page 13 GEEETECH Extruder PI3B-S01 Holder Free Add-on Ejector pin Grater Screw- driver Starter 3 meters filament Spool holder Acrylic Download the building instruction (PDF) here: http://www.geeetech.com/wiki/index.php/Prusa_I3_A_pro_3D_Printer#Document...
-
Page 14: General Care And Maintenance
GEEETECH For detailed build instruction video, please subscribe our YouTube. https://www.youtube.com/user/geeetech/playlist GENERAL CARE AND MAINTENANCE As with all the electronic equipment, it is important to keep your printer clean to extend its life. Regularly remove dust and debris with a microfiber cloth or compressed air. - Page 15 GEEETECH Thanks for choosing Geeetech, we strive to provide a satisfied and pleasant shopping experience for you, but we do understand there may be some questions you may encounter in using our product. If so, you can contact us directly or post on our forum, our technique staff will help you resolve it.
