Serial Flash PROTO
The Serial Flash PROTO additional board features 8Mbit flash memory that can be used by the microcontroller or some
other device.
Key features:
- SPI communication;
- 75Mhz (max) clock signal;
- 3.3V DC power supply voltage; and
- low power consumption.

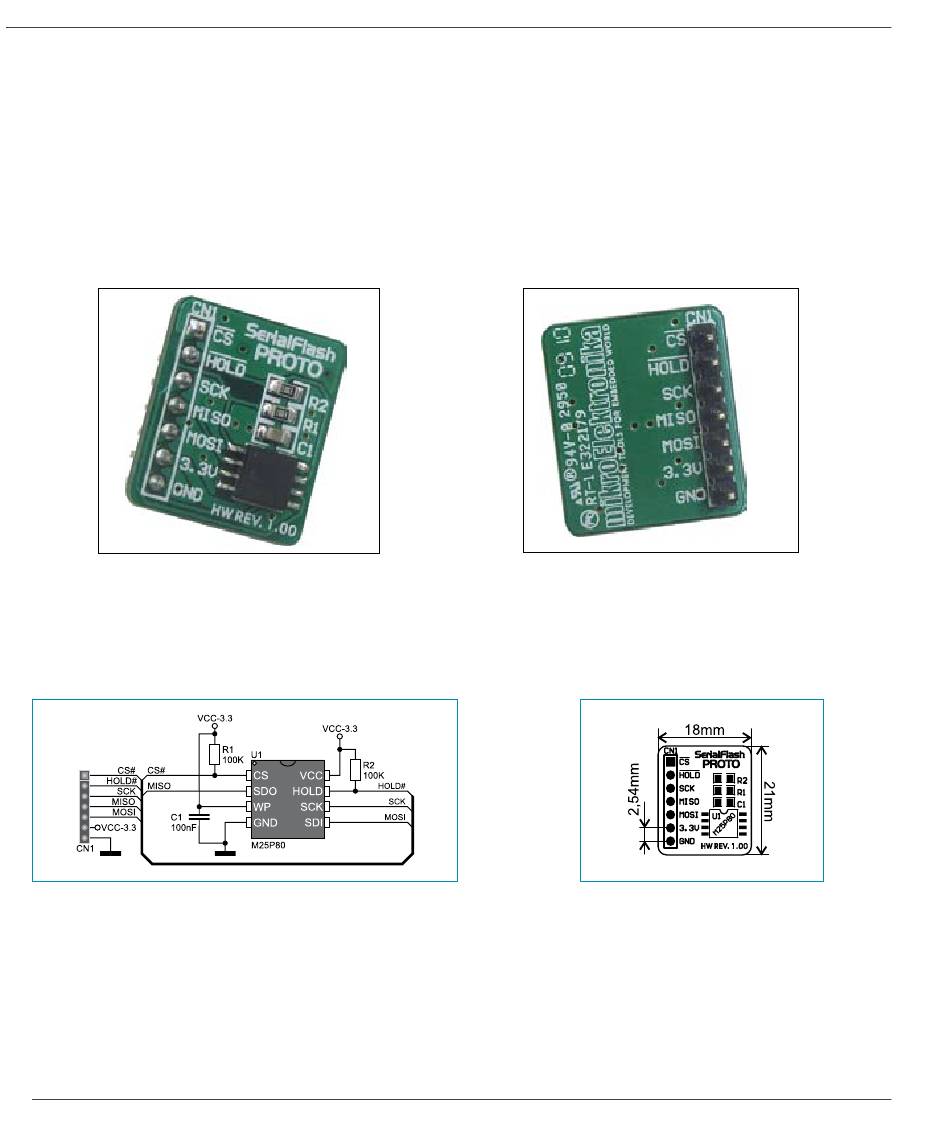

Figure 1: Serial Flash PROTO
How to connect the board?
The Serial Flash PROTO board is connected to other devices via the Serial Peripheral Interface (SPI). Connection is
established via a 1x7 connector CN1 provided on the additional board. Next to the CN1 connector, there are designations
indicating the function of pins provided on the additional board.
Figure 3: Additional board schematic
The function of pins provided on the Serial Flash PROTO board:
CS
- Chip select
HOLD
- Hold
SCK
- Serial Clock
MISO
- Serial Data output
MOSI
- Serial Data input
VCC-3.3 - 3.3V power supply voltage
GND
- Ground
MikroElektronika
Figure 2: Back side of Serial Flash PROTO
Figure 4: Dimensions of the board
