14

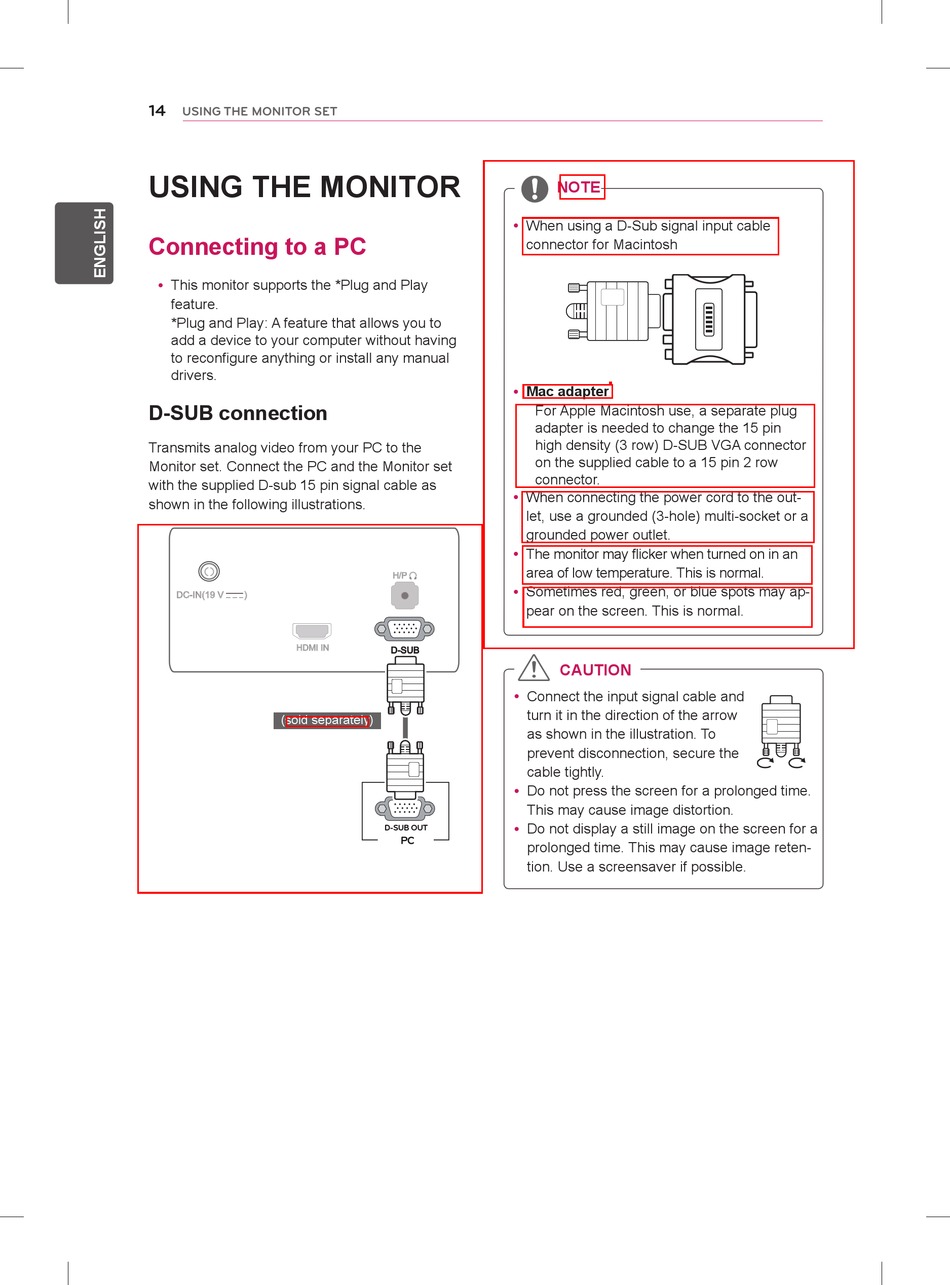

USING THE MONITOR SET

USING THE MONITOR

Connecting to a PC

This monitor supports the *Plug and Play
y
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.

D-SUB connection

Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
DC-IN(19 V
)
HDMI IN
(sold separately)
DC-IN(19 V
)
HDMI IN
When using a D-Sub signal input cable
y
connector for Macintosh
Mac adapter
y
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
When connecting the power cord to the out-
y
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
The monitor may flicker when turned on in an
y
area of low temperature. This is normal.
H/P
Sometimes red, green, or blue spots may ap-
y
pear on the screen. This is normal.
D-SUB
Connect the input signal cable and
y
turn it in the direction of the arrow
as shown in the illustration. To
prevent disconnection, secure the
cable tightly.
Do not press the screen for a prolonged time.
y
This may cause image distortion.
Do not display a still image on the screen for a
y
D-SUB OUT
PC
prolonged time. This may cause image reten-
tion. Use a screensaver if possible.
D-SUB
NOTE
CAUTION
DC-IN(19 V
)
DC-IN(19 V
)
H/P
HDMI IN
D-SUB
HDMI IN
