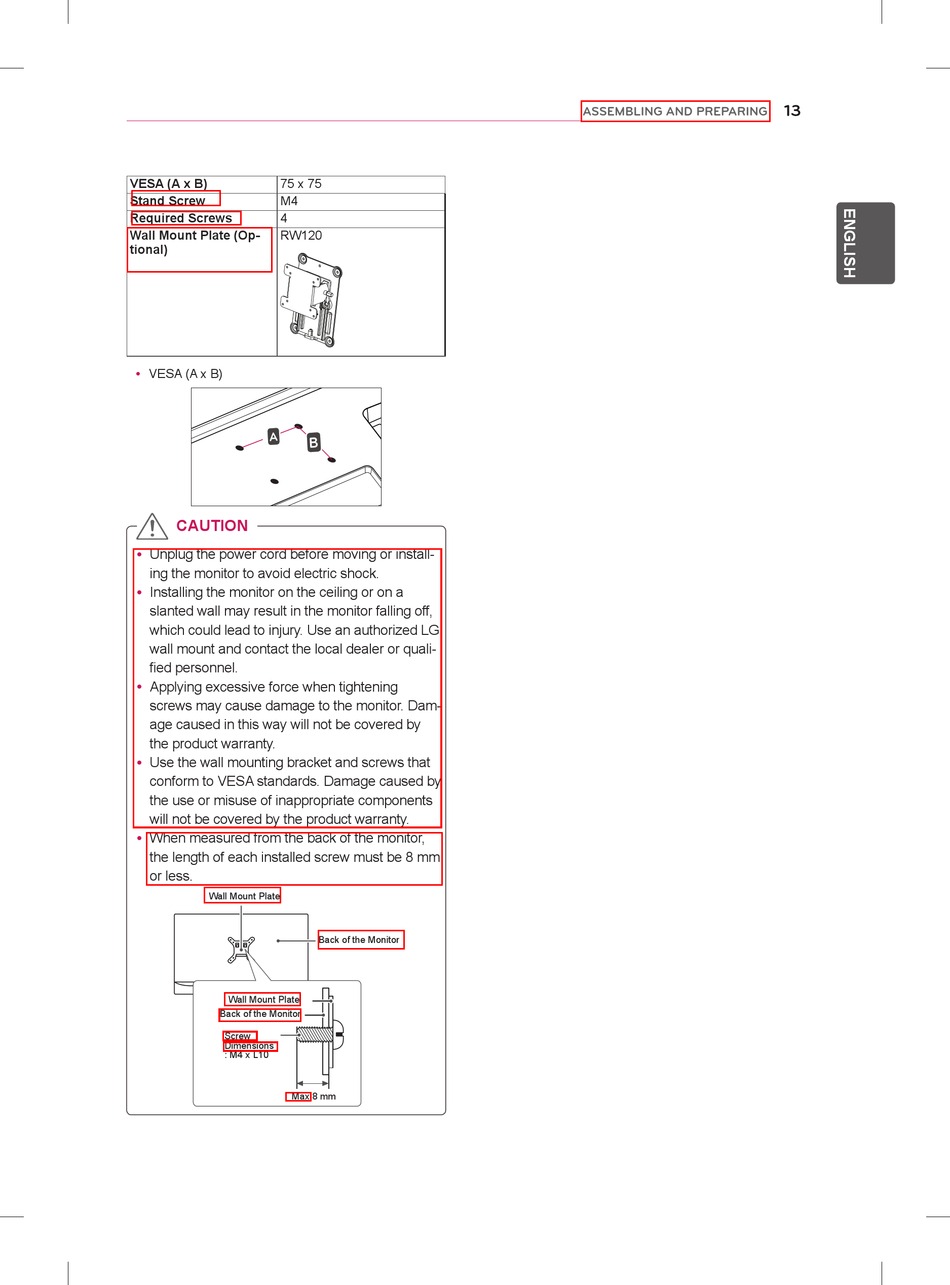

VESA (A x B)
75 x 75
Stand Screw
M4
Required Screws
4
Wall Mount Plate (Op-
RW120
tional)
VESA (A x B)
y
CAUTION
Unplug the power cord before moving or install-
y
ing the monitor to avoid electric shock.
Installing the monitor on the ceiling or on a
y
slanted wall may result in the monitor falling off,
which could lead to injury. Use an authorized LG
wall mount and contact the local dealer or quali-
fied personnel.
Applying excessive force when tightening
y
screws may cause damage to the monitor. Dam-
age caused in this way will not be covered by
the product warranty.
Use the wall mounting bracket and screws that
y
conform to VESA standards. Damage caused by
the use or misuse of inappropriate components
will not be covered by the product warranty.
When measured from the back of the monitor,
y
the length of each installed screw must be 8 mm
or less.
Wall Mount Plate
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Max 8 mm
Back of the Monitor
ASSEMBLING AND PREPARING
13
