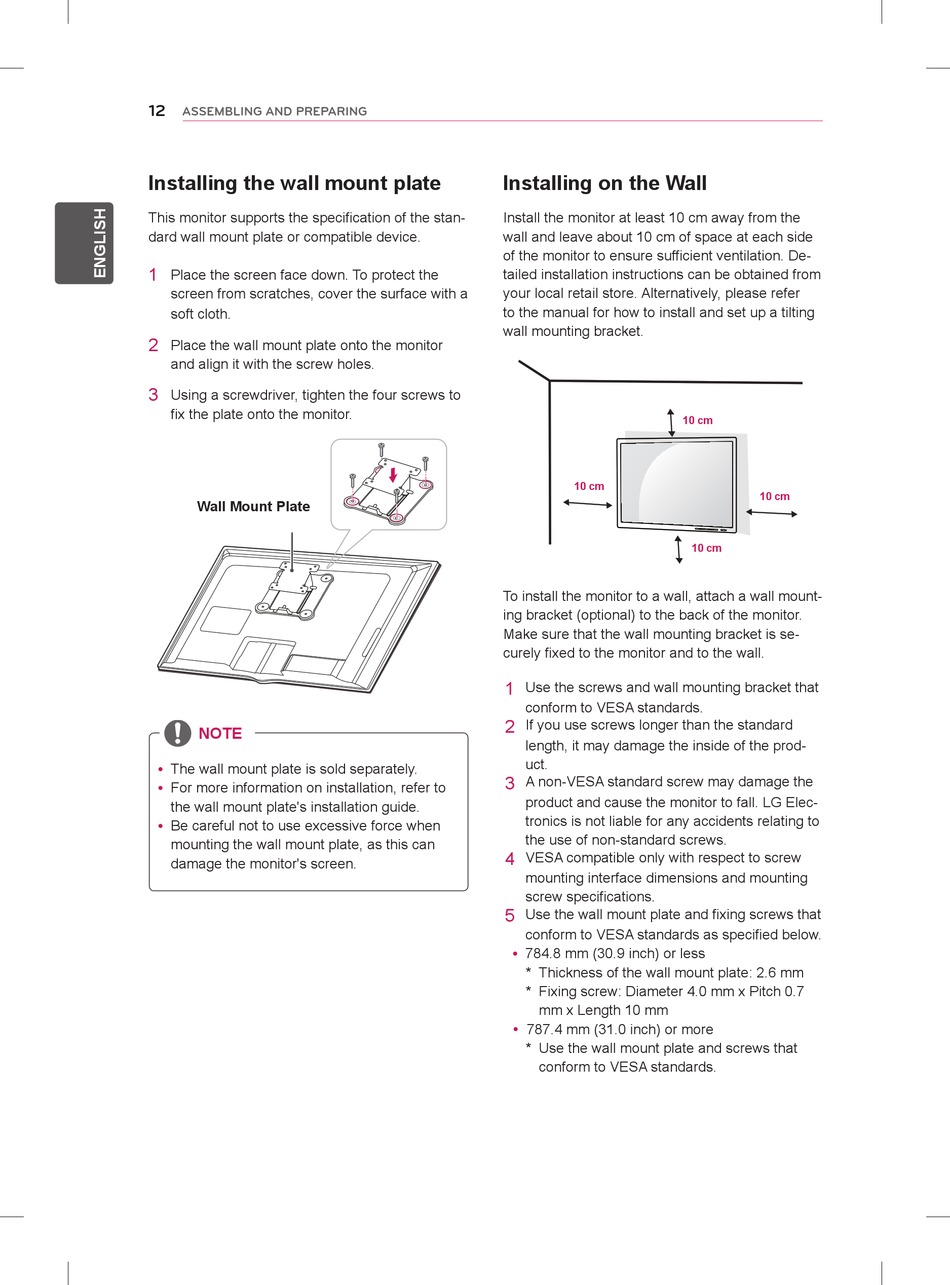

ASSEMBLING AND PREPARING

Installing the wall mount plate

This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the wall mount plate onto the monitor
and align it with the screw holes.
3
Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
Wall Mount Plate
NOTE
The wall mount plate is sold separately.
y
For more information on installation, refer to
y
the wall mount plate's installation guide.
Be careful not to use excessive force when
y
mounting the wall mount plate, as this can
damage the monitor's screen.

Installing on the Wall

Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Alternatively, please refer
to the manual for how to install and set up a tilting
wall mounting bracket.
10 cm
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
1
Use the screws and wall mounting bracket that
conform to VESA standards.
2
If you use screws longer than the standard
length, it may damage the inside of the prod-
uct.
3
A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Elec-
tronics is not liable for any accidents relating to
the use of non-standard screws.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5
Use the wall mount plate and fixing screws that
conform to VESA standards as specified below.
784.8 mm (30.9 inch) or less
y
* Thickness of the wall mount plate: 2.6 mm
* Fixing screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
787.4 mm (31.0 inch) or more
y
* Use the wall mount plate and screws that
conform to VESA standards.
10 cm
10 cm
10 cm
