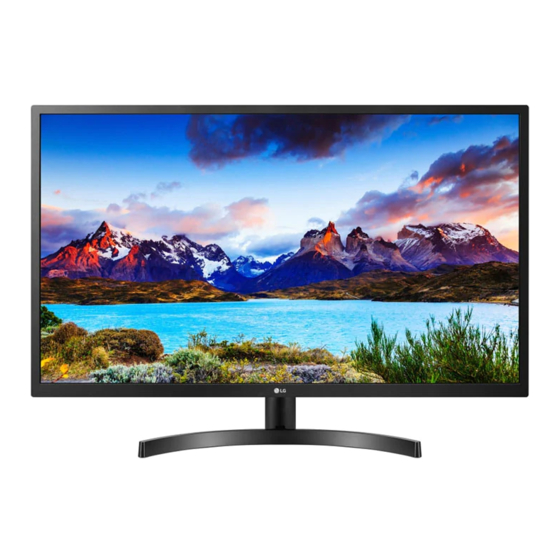

OwnEr's ManuaL
LED LCD MOnITOr
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
32ML600M
32ML60TM
www.lg.com
Copyright © 2018 LG Electronics Inc. all rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32ML600M and is the answer not in the manual?

Questions and answers

Summary of Contents for LG 32ML600M

  • Page 1 OwnEr’s ManuaL LED LCD MOnITOr (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 32ML600M 32ML60TM www.lg.com Copyright © 2018 LG Electronics Inc. all rights reserved.
  • Page 2 TabLE of CoNTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 OpEN SOurCE SOfTwArE NOTICE The terms HDMI and HDMI High-Definition Multimedia Interface, INfOrMATION ..........3 and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 3 Supported Drivers and Software LG Electronics will also provide open source code to you on CD-rOM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 4 product and button Description moving and Lifting the monitor when moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
  • Page 5 Installing on a Table adjusting the angle • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.94 Place the monitor mounted on the stand base in an upright position. inches) away from the wall to ensure sufficient ventilation.
  • Page 6 using the Kensington Lock Installing the wall mount plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. for more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NoTE at http://www.kensington.com.
  • Page 7 Mount Plate NoTE • a non-VEsa standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable Back of the Monitor for any accidents relating to the use of non-standard screws. •...
  • Page 8 uSING THE moNITor D-Sub connection Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations. • Illustrations in this manual may differ from the actual product. Press the joystick button, go to Settings Input, and then select the input option.
  • Page 9 Connecting aV Devices HDmI Connection HDMI transmits digital video and audio signals from your aV device to the monitor. NoTE • using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues. • use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  • Page 10 uSEr SETTINGS NoTE • Your monitor’ s OsD (On screen Display) may differ slightly from that shown in this manual. activating the main menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu.
  • Page 11 main menu features main menu Description Input sets input mode. power off power off Turns off the monitor. Settings Configures the screen settings. Exit Input Settings picture mode sets the picture mode. Exit Exits the main menu. auto Configuration Operate the auto Configuration for optimal display in D-suB. picture mode (for HDMI only) power off...
  • Page 12 menu Settings To view the OsD menu, press the joystick button at the bottom of the monitor and then enter the Settings. Move the joystick up/down and left/right to set the options. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
  • Page 13 Quick Settings Settings > Quick Settings Description brightness adjusts the contrast and brightness of the screen. Contrast adjusts the volume. Volume NoTE • You can adjust mute / unmute by moving the joystick button to in the Volume menu. The user can adjust it to red, green, or blue by customization. Custom sets the screen color to a reddish tone.
  • Page 14 Input Settings > Input Description Input List selects the input mode. adjusts the aspect ratio of the screen. aspect ratio full wide Displays the video in widescreen, regardless of the video signal input. original Displays video according to the aspect ratio of the video signal input.
  • Page 15 picture NoTE • The picture mode that can be set depends on the Input signal. [picture mode on SDr (Non-HDr) signal] Settings > picture Description Custom allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDr Effect Optimizes the screen for high dynamic range.
  • Page 16 [picture mode on HDr signal] Settings > picture Description Custom allows the user to adjust each element. Vivid Optimized the screen for HDr vivid colors. Standard Optimized the screen for HDr standard. Cinema Optimized the screen for HDr video. This mode is optimized for fPs games.It is suitable for very dark fPs games. picture mode This mode is optimized for rTs Game.
  • Page 17 Settings > picture Description brightness adjusts the contrast and brightness of the screen. Contrast Sharpness adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low and high middle modes.
  • Page 18 Settings > picture Description sets a response time for displayed pictures based on the movement of the picture on the screen. for a normal environment, it is recommended that you use fast. when there is a lot of motion, it is recommended that you use faster.
  • Page 19 Settings > picture Description mode 1, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter mode 2, the image becomes. Gamma mode 3 mode 4 If you do not need to adjust the gamma settings, select mode 4. set your own color temperature.
  • Page 20 Settings > picture Description Horizontal To move image left and right. Vertical To move image up and down. Configuration adjust (D-Sub only) Clock To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change. phase To adjust the focus of the display.
  • Page 21 General Settings > General Description Language Sets the menu screen to the desired language. Conserve energy by using luminance compensation algorithm. High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. SMART ENERGY SAVING Disables the feature.
  • Page 22 Settings > General Description Do you want to reset your settings? Reset to Initial Settings Cancel the reset. Returns to the default settings. Auto Configuration Settings > Auto Configuration Description Cancel the select. Auto Configuration Do you want to Auto Configuration? (D-SUB only) Operate the Auto Configuration for optimal display in D-SUB.
  • Page 23 TroubLESHooTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Is the No Signal message being displayed? This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it. •...
  • Page 24 Do you see an "unrecognized monitor, plug and play (VESa DDC) monitor found" message? • Have you installed the display driver? Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function.
  • Page 25 proDuCT SpECIfICaTIoN Color Depth 8-bit / 10-bit color is supported. 1920 x 1080 @ 60 Hz (D-sub) Max resolution 1920 x 1080 @ 75 Hz (HDMI) resolution recommended resolution 1920 x 1080 @ 60 Hz Power rating 19 V 2.0 a On mode: 36.7 w Typ.
  • Page 26 factory Support mode (preset mode, pC) D-Sub / HDmI preset mode Horizontal frequency (kHz) Vertical frequency (Hz) polarity (H/V) remarks 640 x 480 31.469 59.94 640 x 480 37.5 800 x 600 37.879 60.317 800 x 600 46.875 1024 x 768 48.363 1024 x 768 60.023...
  • Page 27 HDMI Timing (Video) Factory Support Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks (Preset Mode) 480p 31.5 576p 31.25 720p 37.5 720p 1080p 56.25 1080p 67.5 Recommend Mode 2160p 112.5 (for HDMI only) 2160p (for HDMI only)
  • Page 28 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building Englewood Cliffs,NJ 07632 Telephone (201)266-2215 This device meets the EMC requirements for home appliances (Class B) and is intended for home usage.
