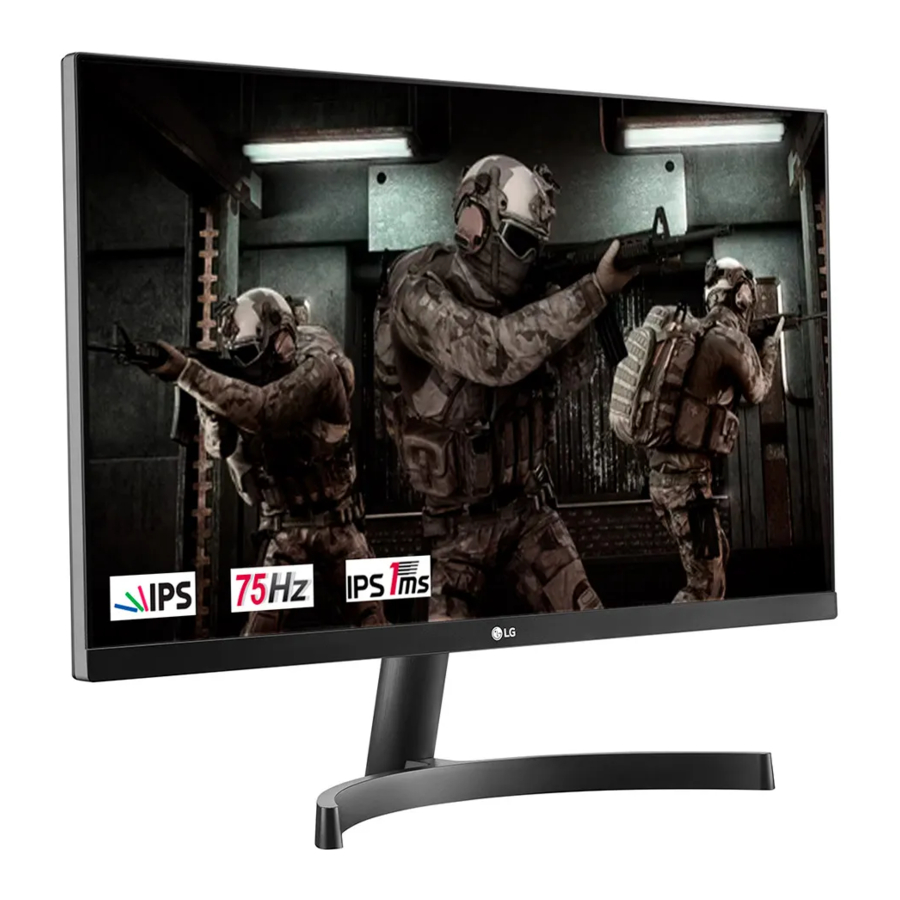

LG 24ML600M, 24ML60MP, 27ML600M Manual

ASSEMBLING AND PREPARING

• Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended to use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image problems.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

• The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Product and Button Description

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ down with your finger.

Basic Functions

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power off	Press and hold the joystick button once more than 3 seconds with your finger to turn off the monitor.
		Volume control	You can control the volume by moving the joystick button left/right. (for HDMI only)

NOTE

• The joystick button is located at the bottom of the monitor.

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

Installing on a Table

• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.94 inches) away from the wall to ensure sufficient ventilation.


• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

Adjusting the Angle

1. Place the monitor mounted on the stand base in an upright position.
2. Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -2° to 15° for a comfortable viewing experience.

The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing experience.

• To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.


Using the Kensington Lock
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.

NOTE

• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible devices.
NOTE

• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate's installation guide.
• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the screen.
• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in reverse.

Installing on the Wall
Install the monitor at least 100 mm (3.94 inches) away from the wall and leave about 100 mm (3.94 inches) of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

NOTE

• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard length, it may damage the inside of the product.
• For more information, please refer to the user manual for the wall mounting bracket.

• Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw must be 8 mm(0.3 inches) or less.

USING THE MONITOR

• Illustrations in this manual may differ from the actual product.

• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC screensaver if possible.
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

• This monitor supports the *Plug and Play feature.

* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

D-SUB connection
Transmits analog video from your PC to the Monitor set.

NOTE

• When using a D-Sub signal input cable connector for Macintosh
• Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
  • High-Speed HDMI^®/TM cable
  • High-Speed HDMI^®/TM cable with Ethernet

Connecting AV Devices

HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.

NOTE

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
  • High-Speed HDMI^®/TM cable
  • High-Speed HDMI^®/TM cable with Ethernet

Connecting Peripherals

Headphones Connection
Connect peripherals to the monitor via the headphones port.

NOTE

• Peripheral devices are sold separately.
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

USER SETTINGS

NOTE

• Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.
• WhenBeep Guide is activated, pressing the joystick button will take you to Settings right away.

Activating the Main Menu

1. Press the joystick button on the bottom of the monitor.
2. Move the joystick up/down and left/right to set the options.
3. Press the joystick button once more to exit the main menu.

Button	Menu Status		Description
	Main menu disabled		Enables the main menu.
	Main menu enabled		Exits the main menu. (Holding down the button more than 3 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
		Main menu disabled	Adjusts the monitor volume level. (24ML600M/24ML60MP/27ML600M/27ML60MP/27MN60T: for HDMI only) (24ML600S/24ML60SP/27ML600S/27ML60SP: HDMI + D-Sub)
		Main menu enabled	Enters the Input features.
		Main menu disabled	Adjusts the monitor volume level. (24ML600M/24ML60MP/27ML600M/27ML60MP/27MN60T: for HDMI only) (24ML600S/24ML60SP/27ML600S/27ML60SP: HDMI + D-Sub)
		Main menu enabled	Enters the Settings feature.
		Main menu disabled	Enters the Accessibility menu.
		Main menu enabled	Turns off the monitor.
		Main menu disabled	Enters the Accessibility menu.
		Main menu enabled	Enters the Picture Mode feature. (for HDMI only)

Main Menu Features

Menu Settings

Customizing settings
Quick Settings

Input

Settings > Input	Description
Input List	Selects the input mode.
Aspect Ratio	Adjusts the aspect ratio of the screen.
	Full Wide	Displays the video in wide-screen, regardless of the video signal input.
	Original	Displays video according to the aspect ratio of the video signal input.
	NOTE The options may disabled at the recommended resolution (1920 x 1080).


NOTE

• If thePicture Mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
• This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.
• This function can't distinguish some colors in some images.

Settings > Picture	Description
Picture Adjust	Brightness	Adjusts the brightness of the screen.
	Contrast	Adjusts the contrast of the screen.
	Sharpness	Adjusts the sharpness of the screen.
	SUPER RESOLUTION+	Off	Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
		High	Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game.
		Middle	The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video.
		Low	The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slowmoving pictures or still images.
		NOTE Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
		Sets the offset level (for HDMI only). Offset: as a reference for a video signal, this is the darkest color the monitor can display.
	Black Level	High	Keeps the current contrast ratio of the screen.
		Low	Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
	DFC	On	Adjusts the brightness automatically according to the screen.
		Off	Disables the DFC feature.
Game Adjust	Response Time	Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Setting to Faster may cause image sticking.
		Faster	Sets the response time to faster.
		Fast	Sets the response time to fast.
		Normal	Sets the response time to normal.
		Off	Does not use the response time improvement feature.
Game Adjust	FreeSync	Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. Supported Interface: HDMI Supported Graphic Card: A graphic card that supports AMD's FreeSync is necessary. Supported Version: Make sure to update the graphic card to the latest driver. For more information and requirement, refer to AMD website athttp://www.amd.com/FreeSync FreeSync and 1ms Motion Blur Reduction cannot be enabled simultaneously.
		On	FreeSync function on.
		Off	FreeSync function off.
	Black Stabilizer	You can control the black contrast to have better visibility in dark scenes. Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.) Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
Game Adjust	1ms Motion Blur Reduction	On	This mode minimizes motion blur in fast-moving videos. To take full advantage of this function, select 1920 x 1080 @ 75Hz before enabling 1ms Motion Blur Reduction. This function is available for the following vertical frequency. (75Hz)
		Off	Turns 1ms Motion Blur Reduction Mode off.
		NOTE To reduce motion blur, brightness is reduced with backlight control. 1ms Motion Blur Reduction and FreeSync feature can not used at the same time. This function is game-optimized. It is recommended to turn off when you are not using the gaming function. Flicker may occur during1ms Motion Blur Reduction operation.
	Crosshair	Crosshair provides a mark on the center of the screen for First Person Shooter (FPS) games. Users can select the Crosshair that fits their gaming environment among four different Crosshairs. When the monitor is off or enters energy saving mode, the Crosshair feature is automatically turned Off.
Color Adjust	Gamma	Mode 1, Mode 2, Mode 3	The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
		Mode 4	If you do not need to adjust the gamma settings, select Mode 4.
	Color Temp	Selects the factory default picture color. Custom: The user can adjust it to red, green or blue by customization. Warm: Sets the screen color to a reddish tone. Medium: Sets the screen color between a red and blue tone. Cool: Sets the screen color to a bluish tone.
	Red	You can customize the picture color using Red, Green, and Blue colors.
	Green
	Blue
Configuration Adjust (D-SUB only)	Horizontal	To move image left and right.
	Vertical	To move image up and down.
	Clock	To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.
	Phase	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.
Resolution (D-SUB only)	User can set the desired resolution. This option is enabled only when the screen resolution on your computer is set to the following(D-SUB only).
	NOTE The function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.
	1024x768, 1280x768, 1360x768, 1366x768,Off
	1280x960, 1600x900,Off
	1440x900, 1600x900,Off
Picture Reset	Do you want to reset your settings?	No	Cancel the select.
		Yes	Returns to the default settings.

Sound

General

Settings > General	Description
Language	To choose the language in which the control names are displayed.
SMART ENERGY SAVING	High	Enables SMART ENERGY SAVING you can save energy with this energy- high efficient.
	Low	Enables SMART ENERGY SAVING you can save energy with this energy- low efficient.
	Off	Disables SMART ENERGY SAVING.
	* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
Automatic Standby	The monitor will automatically switch to standby mode after a certain period.
OSD Lock	Prevents incorrect key input.
	On	Key input is disabled.
	NOTE All function except for the OSD Lock mode, brightness, Contrast, Input, Information and Volume are disabled.
	Off	Key input is enabled.
Information	The display information will be shown the Model, Total Power On Time, Serial Number, Resolution.
Reset	Do you want to reset your settings?	No	Cancel the select.
		Yes	Returns to the default settings.

NOTE

• The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option ofSMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.

TROUBLESHOOTING

Check the following before calling for service.

• CheckControl Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Color Depth		8-bit color is supported.
Resolution		Max Resolution		1920 x 1080 @ 75 Hz (HDMI) 1920 x 1080 @ 60 Hz (D-Sub)
		Recommended Resolution		1920 x 1080 @ 60 Hz
Power Sources		Power Rating		19 V 1.3 A
		Power Consumption		On mode: 17.5 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.3 W** Off Mode ≤ 0.3 W
AC/DC adaptor		Type ADS-25SFA-19-3 19025E, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-25FSF-19 19025EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-25FSF-19 19025EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-25FSF-19 19025EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-25FSF-19 19025EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-25FSF-19 19025EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type AD10560LF, manufactured by PI Electronics (H.K.) Ltd., or type AD2139S20, manufactured by PI Electronics (H.K.) Ltd., or type AD2139620, manufactured by PI Electronics (H.K.) Ltd.. Output: 19 V 1.3 A

The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

24ML600S
24ML60SP

Color Depth		8-bit color is supported.
Resolution		Max Resolution		1920 x 1080 @ 75 Hz (HDMI) 1920 x 1080 @ 60 Hz (D-Sub)
		Recommended Resolution		1920 x 1080 @ 60 Hz
Power Sources		Power Rating		19 V 1.6 A
		Power Consumption		On mode: 21.7 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.3 W** Off Mode ≤ 0.3 W
AC/DC adaptor		Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type ADS-45SQ-19-3 19032E, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC, or type AD10550LF, manufactured by PI Electronics (H.K.) Ltd., or type AD2138S20, manufactured by PI Electronics (H.K.) Ltd., or type AD2138620, manufactured by PI Electronics (H.K.) Ltd.. Output: 19 V 1.7 A
Environmental Conditions		Operating Conditions		Temperature		0°C to 40°C
				Humidity		Less than 80%
		Storing Conditions		Temperature		-20°C to 60°C
				Humidity		Less than 85%
Dimensions		Monitor Size (Width x Height x Depth)
		With Stand		539.1 x 415.3 x 182.0 (mm)		21.2 x 16.3 x 7.1 (inches)
		Without Stand		539.1 x 321.5 x 66.5 (mm)		21.2 x 12.6 x 2.6 (inches)
Weight (Without Packaging)		With Stand		3.6 kg		7.9 lbs
		Without Stand		3.2 kg		7.0 lbs

The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Color Depth		8-bit color is supported.
Resolution		Max Resolution		1920 x 1080 @ 75 Hz (HDMI) 1920 x 1080 @ 60 Hz (D-Sub)
		Recommended Resolution		1920 x 1080 @ 60 Hz
Power Sources		Power Rating		19 V 1.6 A
		Power Consumption		On mode: 25.5 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.3 W** Off Mode ≤ 0.3 W
AC/DC adaptor		Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type ADS-45SQ-19-3 19032E, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19032EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC, or type AD10550LF, manufactured by PI Electronics (H.K.) Ltd., or type AD2138S20, manufactured by PI Electronics (H.K.) Ltd., or type AD2138620, manufactured by PI Electronics (H.K.) Ltd.. Output: 19 V 1.7 A
Environmental Conditions		Operating Conditions		Temperature		0°C to 40°C
				Humidity		Less than 80%
		Storing Conditions		Temperature		-20°C to 60°C
				Humidity		Less than 85%
Dimensions		Monitor Size (Width x Height x Depth)
		With Stand		611.2 x 453.9 x 209.4 (mm)		24.0 x 17.8 x 8.2 (inches)
		Without Stand		611.2 x 362.6 x 72.7 (mm)		24.0 x 14.2 x 2.8 (inches)
Weight (Without Packaging)		With Stand		4.8 kg		10.5 lbs
		Without Stand		4.3 kg		9.4 lbs

The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Color Depth		8-bit color is supported.
Resolution		Max Resolution		1920 x 1080 @ 75 Hz (HDMI) 1920 x 1080 @ 60 Hz (D-Sub)
		Recommended Resolution		1920 x 1080 @ 60 Hz
Power Sources		Power Rating		19 V 2.0 A
		Power Consumption		On mode: 27.6 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.3 W** Off Mode ≤ 0.3 W
AC/DC adaptor		Type LCAP21C, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26B-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type LCAP26B-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE, or type ADS-45SQ-19-3 19040E, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19040EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19040EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19040EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type ADS-45FSQ-19 19040EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC, or type AD10530LF, manufactured by PI Electronics (H.K.) Ltd., or type AD2137S20, manufactured by PI Electronics (H.K.) Ltd., or type AD2137620, manufactured by PI Electronics (H.K.) Ltd.. Output: 19 V 2.1 A
		Type DA-48F19, manufactured by Asian Power Devices Inc. Output: 19 V 2.53 A
Environmental Conditions		Operating Conditions		Temperature		0°C to 40°C
				Humidity		Less than 80%
		Storing Conditions		Temperature		-20°C to 60°C
				Humidity		Less than 85%
Dimensions		Monitor Size (Width x Height x Depth)
		With Stand		611.2 x 453.9 x 209.4 (mm)		24.0 x 17.8 x 8.2 (inches)
		Without Stand		611.2 x 362.6 x 72.7 (mm)		24.0 x 14.2 x 2.8 (inches)
Weight (Without Packaging)		With Stand		4.8 kg		10.5 lbs
		Without Stand		4.3 kg		9.4 lbs

The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Factory Support Mode (Preset Mode, PC)

D-SUB

HDMI

HDMI Timing (Video)

Beep Guide

The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model:
Serial No:
