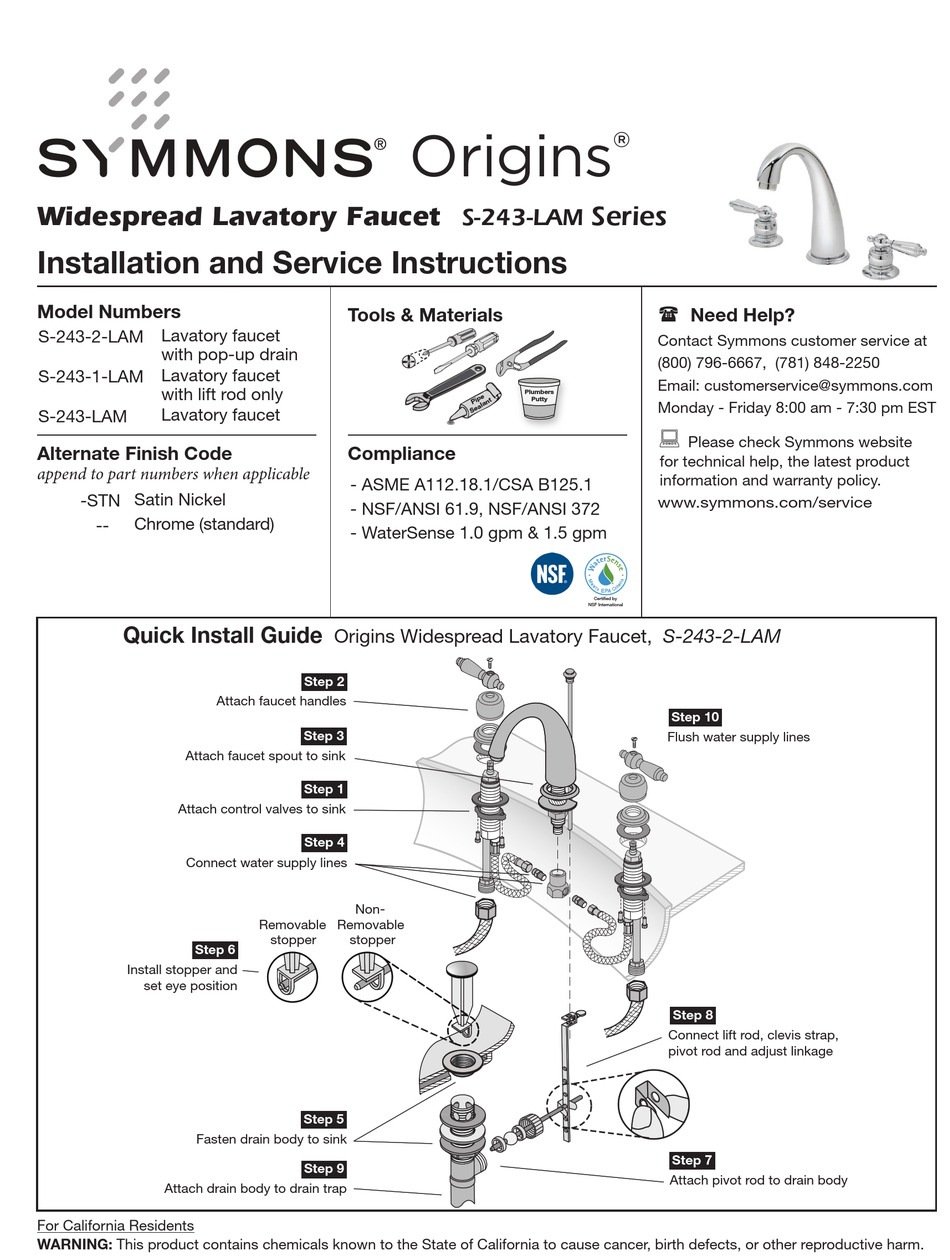

Symmons Origins S-243-LAM Series Installation And Service Instructions

Widespread Lavatory Faucet
Installation and Service Instructions
Model Numbers
S-243-2-LAM Lavatory faucet
with pop-up drain
S-243-1-LAM Lavatory faucet
with lift rod only
Lavatory faucet
S-243-LAM
Alternate Finish Code
append to part numbers when applicable
-STN Satin Nickel
Chrome (standard)
--
Quick Install Guide
Attach faucet handles
Attach faucet spout to sink
S
Attach control valves to sink
Connect water supply lines
S
Step 6
Install stopper and
set eye position
Fasten drain body to sink
Attach drain body to drain trap
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Origins
Tools & Materials
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 61.9, NSF/ANSI 372
- WaterSense 1.0 gpm & 1.5 gpm
Origins Widespread Lavatory Faucet, S-243-2-LAM
Step 2
Step 3
Step 1
Step 1
Step 4
Non-
Removable Removable
stopper stopper
Step 5
Step 9
®
Series
S-243-LAM
Plumbers
Putty
Certi ed by
NSF International
 Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 8:00 am - 7:30 pm EST

Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
