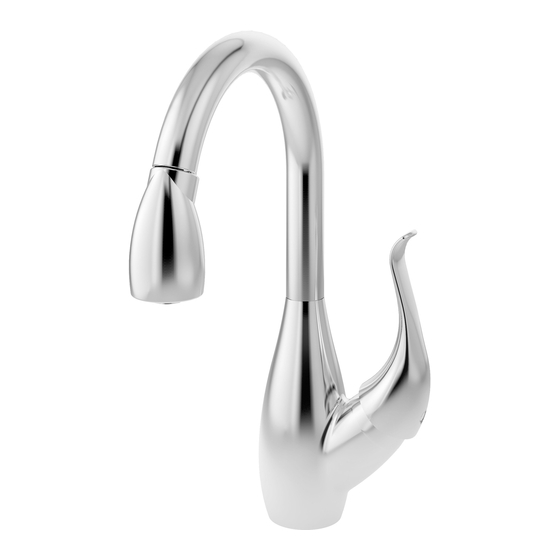

Kitchen faucet

Advertisement

Kitchen Faucet
Installation and Service Instructions
Model Numbers
S-2620-L ............Chrome finish
S-2620-STN-L ....Satin Nickel finish
S-2620-STS-L ....Stainless Steel finish

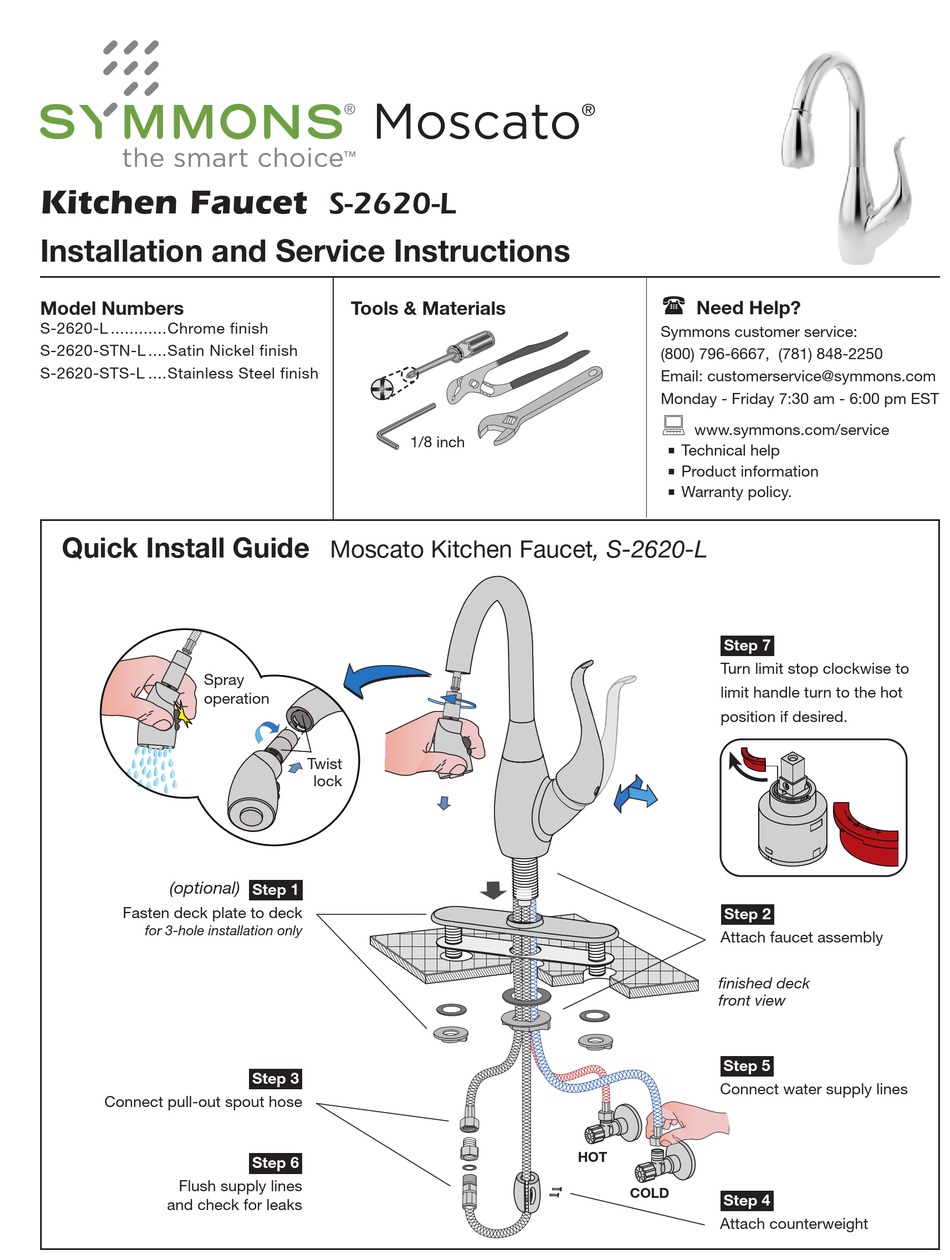

Quick Install Guide

Spray
operation
(optional)
Fasten deck plate to deck
for 3-hole installation only
Connect pull-out spout hose
Flush supply lines
and check for leaks
Moscato
S-2620-L
Tools & Materials
1/8 inch
Moscato Kitchen Faucet, S-2620-L
Twist
lock
Step 1
Step 3
Step 6
®
Need Help?
Symmons customer service:
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
www.symmons.com/service
Technical help
Product information
Warranty policy.
Step 7
Turn limit stop clockwise to
limit handle turn to the hot
position if desired.
Step 2
Attach faucet assembly
finished deck
front view
Step 5
Connect water supply lines
HOT
COLD
Step 4
Attach counterweight
