Symmons Symmetrix S-249 Series Installation And Service Instructions

Bar Sink and Lavatory Faucet
Installation and Service Instructions

INSTALLATION:

Caution: Be sure to turn off hot and cold water supplies
before installing or servicing faucet.
1. Align flat edge of escutcheon showing logo with the back of sink.
Insert faucet supplies through holes in sink. Secure faucet to sink
by tightening flange nuts (KN-116) from underside. (If sink or
counter surface is uneven, use putty or sealant to make proper
seal under base.)
2. Connect hot supply to left tube and cold supply to right tube using
appropriate connectors.
3. It is very important to thoroughly flush the supply lines to
prevent foreign matter, i.e. copper chips, sand, stones, etc.
from damaging the sealing surfaces of cartridge. Remove
aerator (bar faucet) and turn cold valve handle on to full cold posi-
tion, open cold supply. Without closing, turn hot valve handle to
full hot position and open hot supply. Let water run in hot only and
cold only positions long enough to flush supply lines thoroughly.
Shut off faucet and replace aerator. Check for leaks.

Cartridge Replacement

Faucets with standard LCT handles
1. Remove plug button (T-33, T-33R or T-33B), loosen phillip head screw
(LN-121A) and remove handle (LN-140, LN-131 or LN-102).

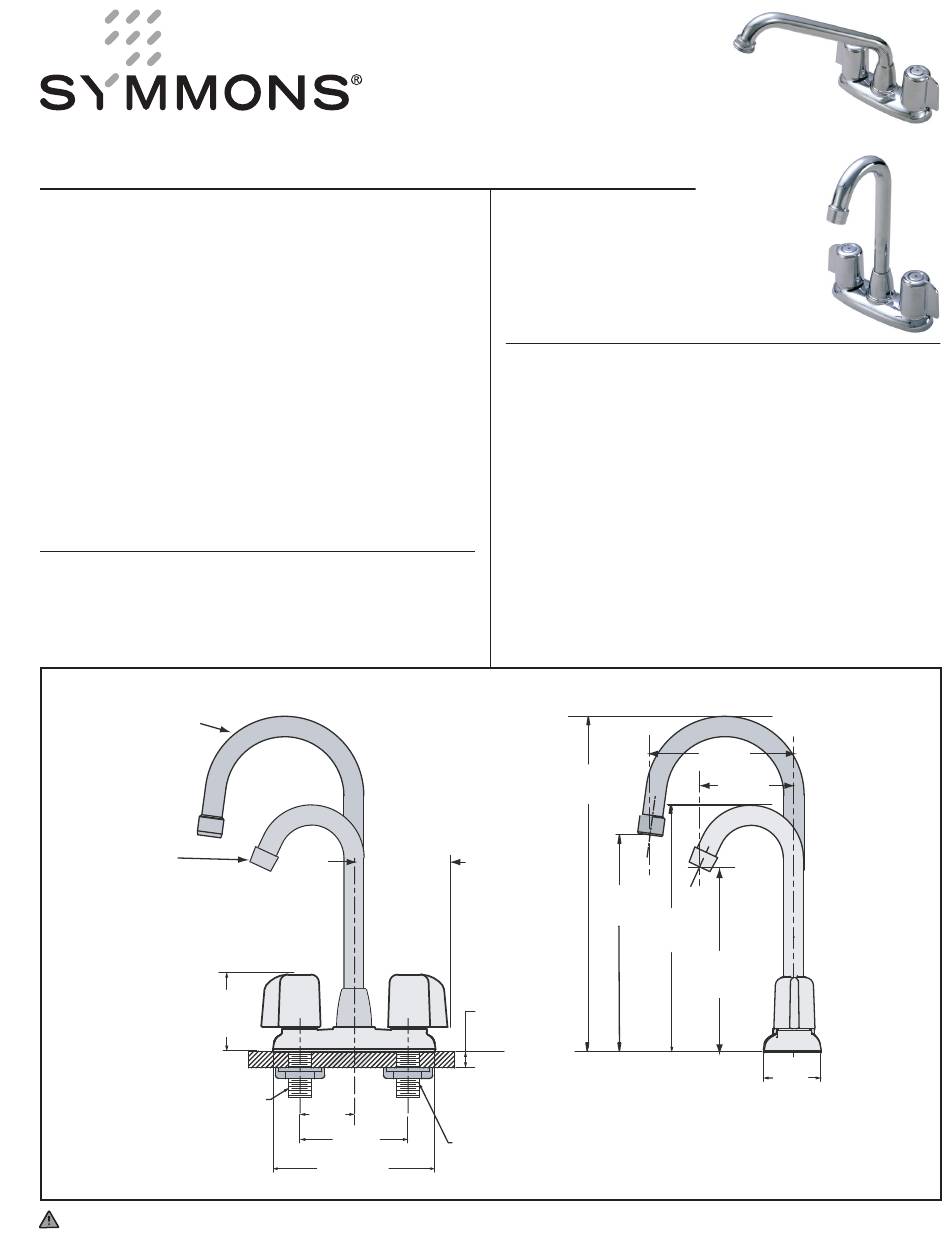

Dimensions

Symmetrix
S-245-5
Long spout
S-245,
standard spout
2-13/16"
71 mm
1/2"-14 NPSM
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or
other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Symmetrix
,
S-245 & 249 Series
Bar Sink Faucet, S-245 and S-245-5
®
3-3/8"
85mm
2"
51mm
4"
hole size
102mm
min. 1" 25 mm
5-15/16"
max. 1-1/4" 32 mm
152 mm
S-245 with std LCT handles
2. Place wrench on cartridge hex nut (KN-113, KN-114). Turn wrench
counter clockwise until cartridge is removed.
3. Install new cartridge. Turn cartridge with wrench until cartridge does
not turn easily then turn 1/4 or 1/2 turn further. Reassemble handle
in reverse fashion.
Faucets with optional LCF , LPO or LAM handles:
1. Loosen phillip oval head screw (LN-134) and remove handle (LN-152).
2. Remove collar (LN-112) by turning counter clockwise, do not use
wrench as this may damage the surface finish.
3. Place wrench on cartridge hex nut (KN-113, KN-114). Turn wrench
counter clockwise until cartridge is removed.
4. Install new cartridge. Turn cartridge with wrench until cartridge does
not turn easily then 1/4 or 1/2 turn further. Reassemble handle in
reverse fashion.
To lock spout:
1. See instructions in lock (BL-114) package.
12-3/8"
314mm
8"
203 mm
9-1/8"
232 mm
1-3/8" max
35 mm
Note: Dimensions subject to
change without notice.
®
S-249 with std LCT handles
5-1/2"
140 mm
3-1/2"
89 mm
6-13/16"
174 mm
2-1/8"
54 mm
