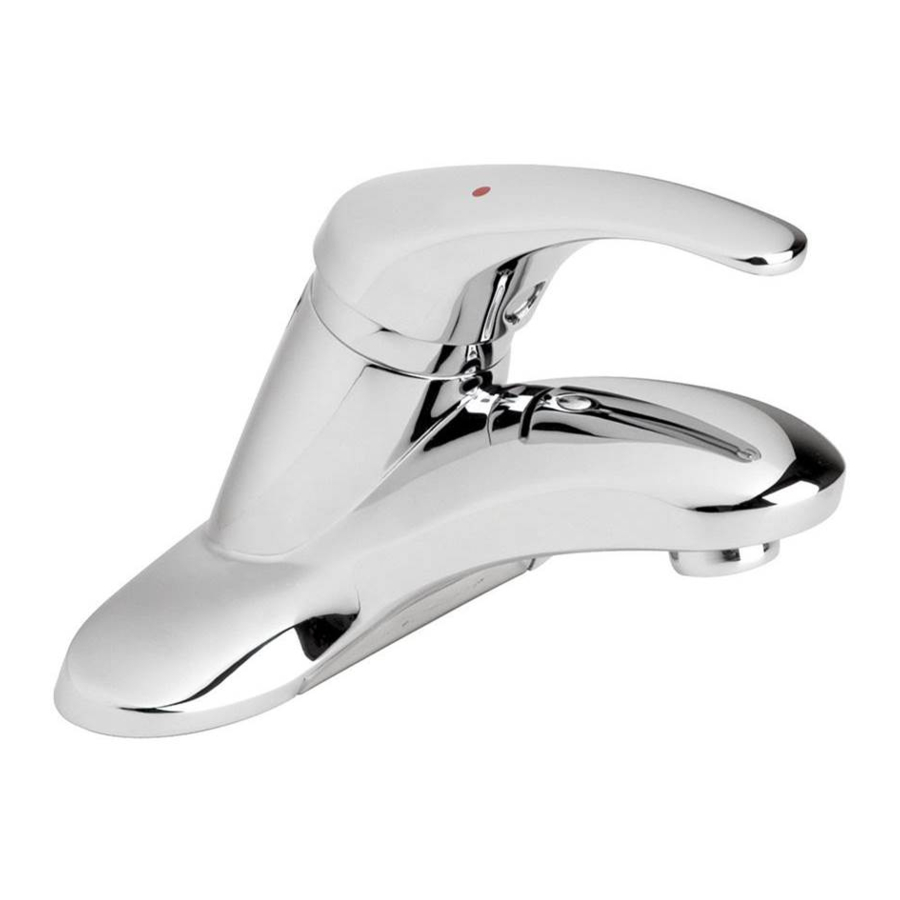

Symmons Symmetrix S-20 Series Installation And Service Instructions

Lavatory Faucet
Installation and Service Instructions
INSTALLATION:
Caution: Be sure to turn off hot and cold water supplies
before installing or servicing faucet.
1.
Loosely install the anchor bar (KN-23), spacer (KN-26) and
nut (L-36) on the mounting bolts and place gasket on base
of faucet. Push faucet supplies and anchor bolt/spacer/nut
assemblies with gasket through holes in sink. Secure faucet
to sink by tightening nuts from underside. (If sink or coun-
ter surface is uneven, use putty or sealant to make proper
seal under base.)
2. Connect hot supply to left tube and cold supply to right
tube using appropriate connectors.
3. Pop-up drain installation:
a) Remove pop-up plug, tail piece and fl ange from the drain
body. Make sure that locknut is threaded all the way
down onto the body with fl at friction washer in middle
and beveled washer on top.
b) Apply plumbers putty or sealant to bottom of fl ange.
c) Install drain body through drain opening in lavatory
and screw fl ange onto the drain body making sure that
the threads are completely engaged for proper sealing
and strength of the connection. Apply joint compound
to all threaded parts to insure proper seal.
d) Tighten locknut to compress the beveled fl ange evenly
across the bottom of the drain opening taking care not to
over tighten the locknut, causing damage to the lavatory.
e) Remove one of two ball washers from inside the
threaded cavity. Insert pop-up plug and pivot rod into
body. Add one ball washer (the second ball washer
should remain inside the body) to the outside of the ball.
Tighten the retaining nut until the ball is seated on the
internal and external ball washers.
Note: Th e pop-up plug can be installed either in the re-
movable or non-removable position, depending on the
location of the hole located in the guide at the bottom of
the plug.
f) Slide the pivot rod through one side of the spring clip,
then the appropriate adjustment hole and then other
side of the spring clip.
g) Insert lift rod through faucet housing and the top of the
lift strap and secure it in place by tightening the screw.
Note: To ensure proper operation of lift rod and pop-
up, some ad just ment of the linkage may be required.
Th ere are two possible adjustment points: 1) lift strap to
lift rod and 2) lift strap to pivot rod.
Symmetrix
S-20 Series
®
4. It is very important to thoroughly fl ush the supply lines to
prevent foreign matter, i.e. copper chips, sand, stones, etc.
from damaging the sealing surfaces of cartridge.
Remove aerator and turn valve handle on to full cold posi-
tion, open cold sup ply. Without closing, turn handle to full
hot and open hot supply. Let water run in hot only and cold
only positions long enough to fl ush supply lines thor ough ly.
Shut off faucet and replace aerator. Check for leaks.
5. Th e handle limit stop can be set to limit handle turn to the
hot position. Th e limit mechanism is factory set to allow
full handle travel. To adjust the limit stop, turn handle to
the full hot position and lift handle to open faucet approxi-
mately half way to obtain a smooth fl ow for correct initial
temperature measurement.
6. If when faucet is on and in full hot position and water
is too hot, remove plug button (KN-157), loosen set
screw (L-22) and remove handle (KN-3RB, KN-3BRB or
LN-135). Lift limit stop ring (KN-4L) using a small fl at
head screw driver and rotate counter clock wise to lower
tem per a ture. If water is not hot enough, rotate clockwise
(See Figure 1 on reverse side). Aft er correct tem per a ture is
achieved, reattach handle, reversing procedure above.
Replacing cartridge (KN-4):
1. Remove plug button (KN-157), loosen set screw (L-22) and
remove handle (KN-3RB, KN-3BRB or LN-135).
2. Engage tabs in cartridge wrench (LN-34) with slots in
compression ring (KN-2) and use screwdriver in wrench
holes or pliers on wrench and turn counter clockwise until
com pres sion ring engages with cap (LN-8). Continue turn-
ing counter clockwise so that cap/ring assembly is removed
from the body (LN-371). Remove cartridge and three ring
seal (KN-4).
3. Install new cartridge while taking care to maintain position
of the three ring seal at the base of the cartridge. Match
posts in base of cartridge with alignment holes in valve
body during assembly.
4. Reassemble faucet in reverse fashion. Th read cap onto body
fi rmly by hand. Do not use a wrench which may damage
the fi nish. Tighten com pres sion ring (KN-2) fi nger tight
using the wrench (LN-34) then 1/4 to 1/2 turn further.
5. Set hot water limit stop in accordance with installation step
5 above.
