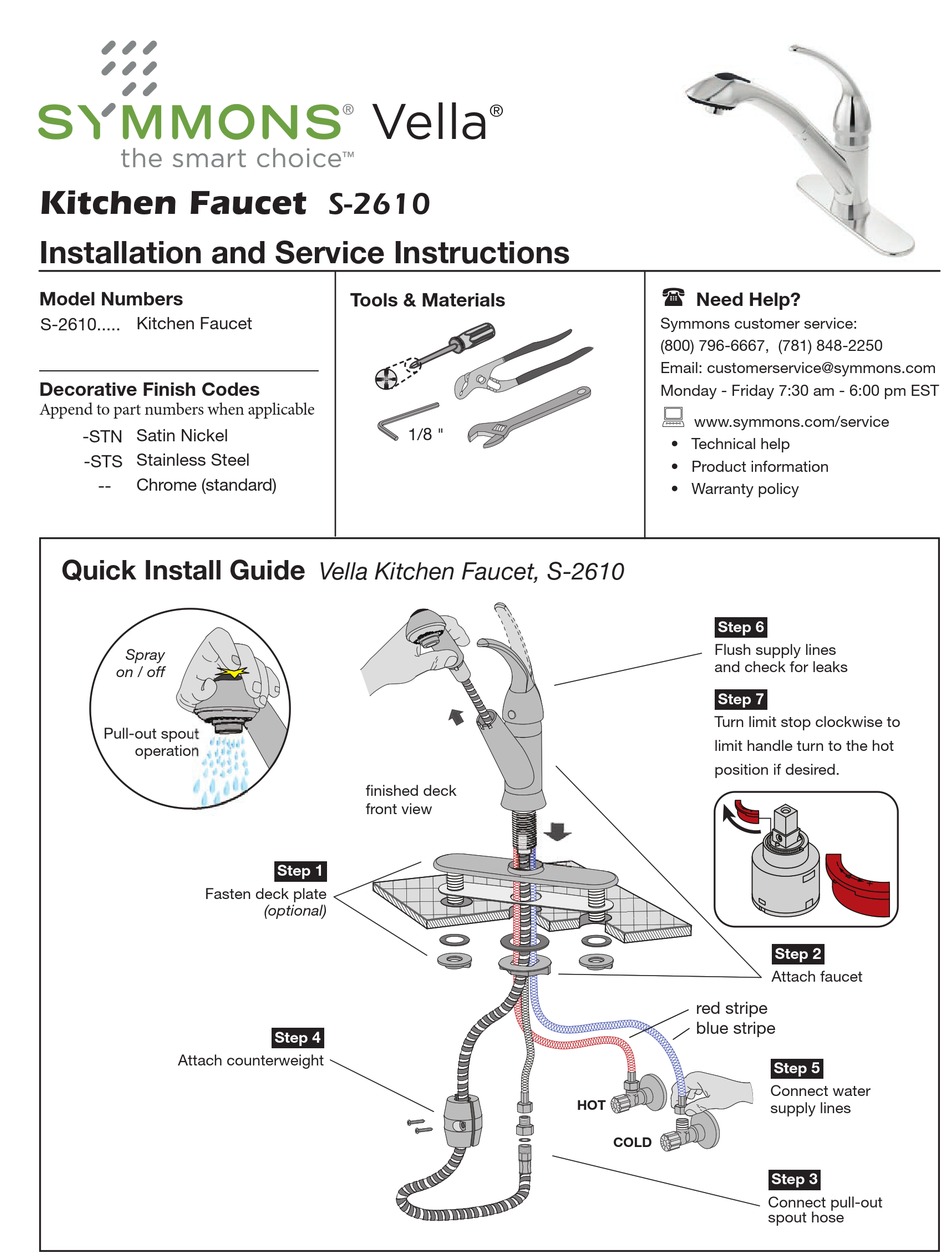

Kitchen Faucet
Installation and Service Instructions
Model Numbers
S-2610..... Kitchen Faucet
Decorative Finish Codes
Append to part numbers when applicable
-STN Satin Nickel
-STS Stainless Steel
Chrome (standard)
--
Quick Install Guide
Spray
on / off
Pull-out spout
operation
Fasten deck plate
Attach counterweight
Vella
S-2610
Tools & Materials
1/8 "
Vella Kitchen Faucet, S-2610
nished deck
front view
Step 1
(optional)
Step 4
®
Symmons customer service:
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
HOT
COLD
Need Help?
www.symmons.com/service
• Technical help
• Product information
• Warranty policy
Step 6
Flush supply lines
and check for leaks
Step 7
Turn limit stop clockwise to
limit handle turn to the hot
position if desired.
Step 2
Attach faucet
red stripe
blue stripe
Step 5
Connect water
supply lines
Step 3
Connect pull-out
spout hose
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Vella S-2610 Series
Summary of Contents for Symmons Vella S-2610 Series
- Page 1 Installation and Service Instructions Model Numbers Need Help? Tools & Materials S-2610..Kitchen Faucet Symmons customer service: (800) 796-6667, (781) 848-2250 Email: customerservice@symmons.com Decorative Finish Codes Monday - Friday 7:30 am - 6:00 pm EST Append to part numbers when applicable ...
- Page 2 Installation Instructions Installation Instructions If replacing an older faucet ensure water supply is Caution: Step 3 Connect pull-out spout hose turned before removing and then turn faucet handles to relieve water pressure. Step 1 Attach deck plate (optional) Installing deck plate is optional. Plate is typically used when replacing a faucet to cover existing holes.
- Page 3 Care of faucet fi nish Step 5 Connect supply lines Clean nish area by using mild soap and water or non-abrasive cleaner and then rinse immediately. A non-abrasive wax may be used to preserve nish area. Valve cartridge replacement Removing handle and cartridge 1/8"...
- Page 4 WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 Copyright © 2019 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-497 REV C 053119...
