1.2 Description
•
•
Rated for Reliability in Harsh Environments
•
•
•
•
•
•
Universal Power Supply Options
•
•
•
•
•
1.2

Description

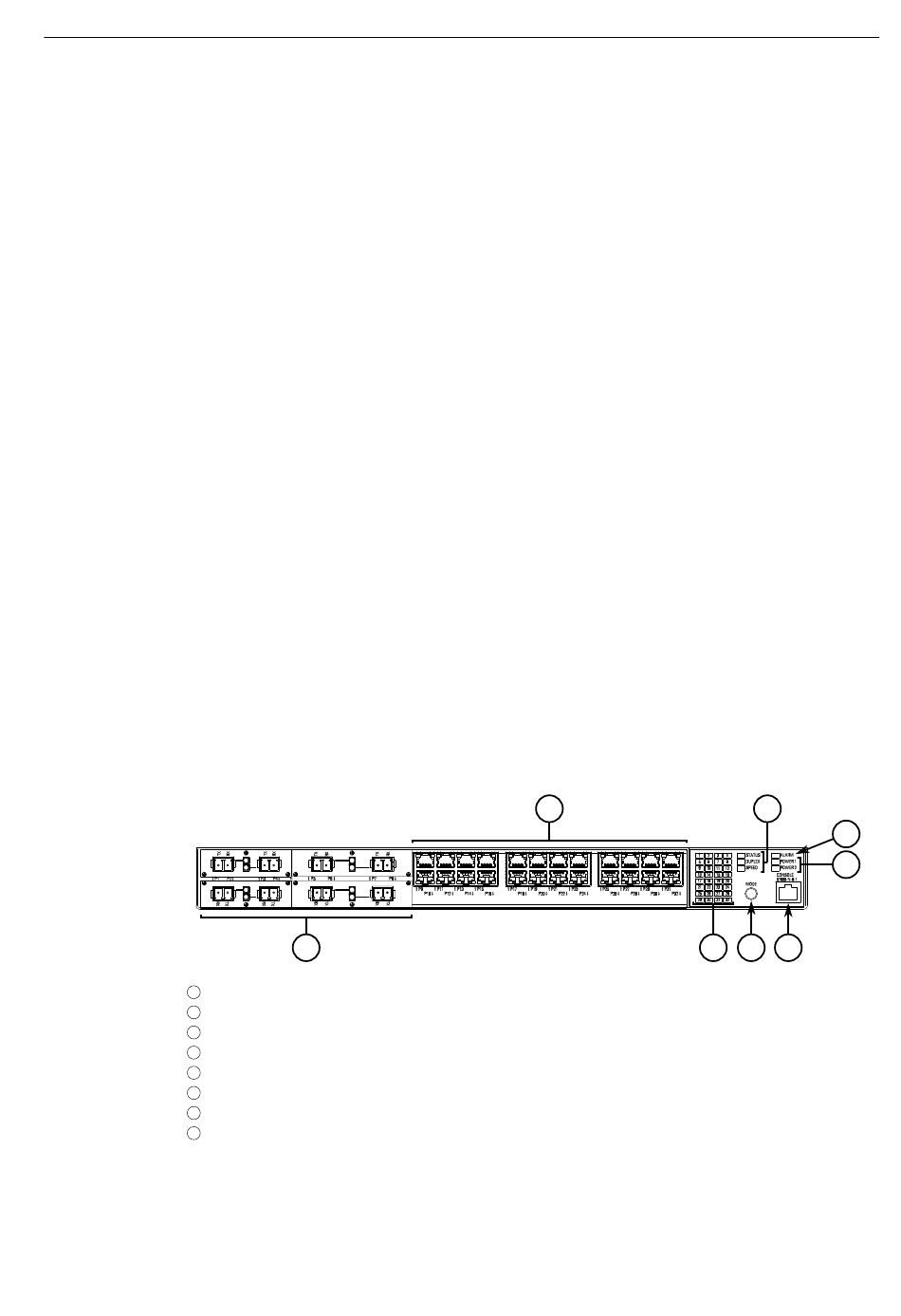

The RUGGEDCOM RSG2300 features various ports, controls and indicator LEDs on the
display panel for connecting, configuring and troubleshooting the device. The dis-
play panel can be located on the rear, front or top of the device, depending on the
mounting configuration.
1
2
3
4
5
6
7
8
Figure 1.1
2
Pluggable Optic module support: SFP, GBIC
Multiple connector types (ST, MTRJ, LC, SC)
Immunity to EMI and heavy electrical surges
Zero-Packet-Loss™ technology
-40 to 85 °C (-40 to 185 °F) operating temperature (no fans)
Conformal coated printed circuit boards (optional)
18 AWG galvanized steel enclosure
Hazardous Location Certification: Class 1 Division 2
Fully integrated, dual-redundant (optional) power supplies
Universal high-voltage range: 88-300 VDC or 85-264 VAC
Popular low voltage ranges: 24 VDC (12-36 VDC), 48 VDC (36-59 VDC)
Screw or pluggable terminal blocks for reliable, maintenance-free connections
CSA/UL 60950-1 safety approved to 85 °C (185 °F)
1
Fiber or Copper Ethernet Ports
Copper Ethernet Port
Port Status Indicator LEDs
Mode Button
RS-232 Serial Console Port (RJ45)
Display Mode Indicator LEDs
Alarm Indicator LED
Power Module Indicator LEDs
RUGGEDCOM RSG2300
2
3
Installation Manual, 01/2020, C79000-G8976-1046-15
6
7
8
4 5
RUGGEDCOM RSG2300
