Technical Specifications

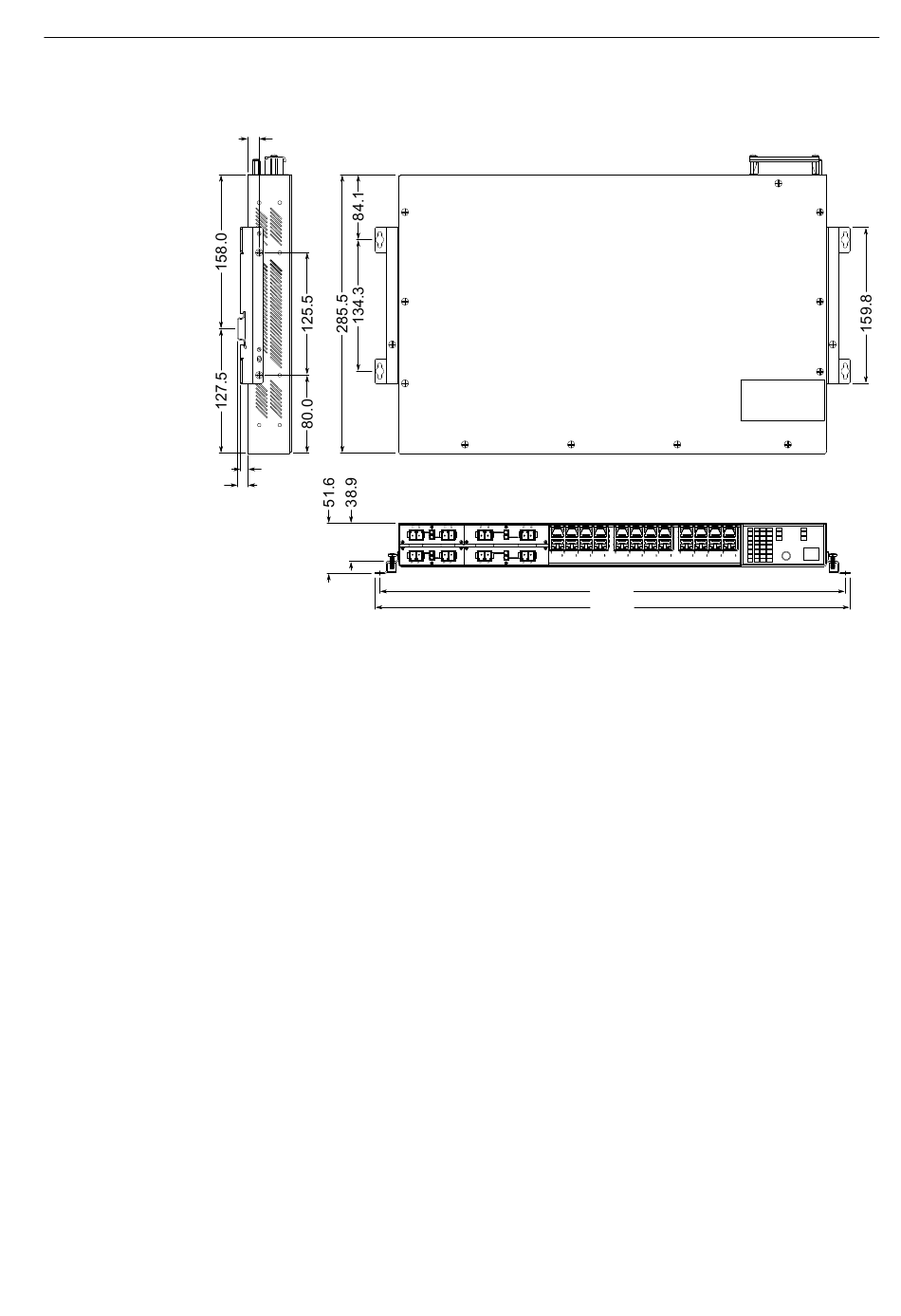

5.8 Dimension Drawings
10.4
Figure 5.3
38
11.7
7.4
P1 P2
Panel and DIN Rail Mount Dimensions
P3 P4 P5 P6 P7 P8
P9 P11 P13 P15
P10 P12 P14 P16
476.3
486.4
1 2 3 4 STATUS
5 6 7 8 DUPLEX
9 10 SPEED
11 12
13 14 15 16
17 18 19 20
MODE
P17 P19 P21 P23 P25 P27 P29 P31 21 22 23 24
P18 P20 P22 P24 P26 P28 P30 P32 25 26 27 28
29 30 31 32
RUGGEDCOM RSG2300
Installation Manual, 01/2020, C79000-G8976-1046-15
ALARM
POWER1
POWER2
CONSOL E
57600-N-8-1
