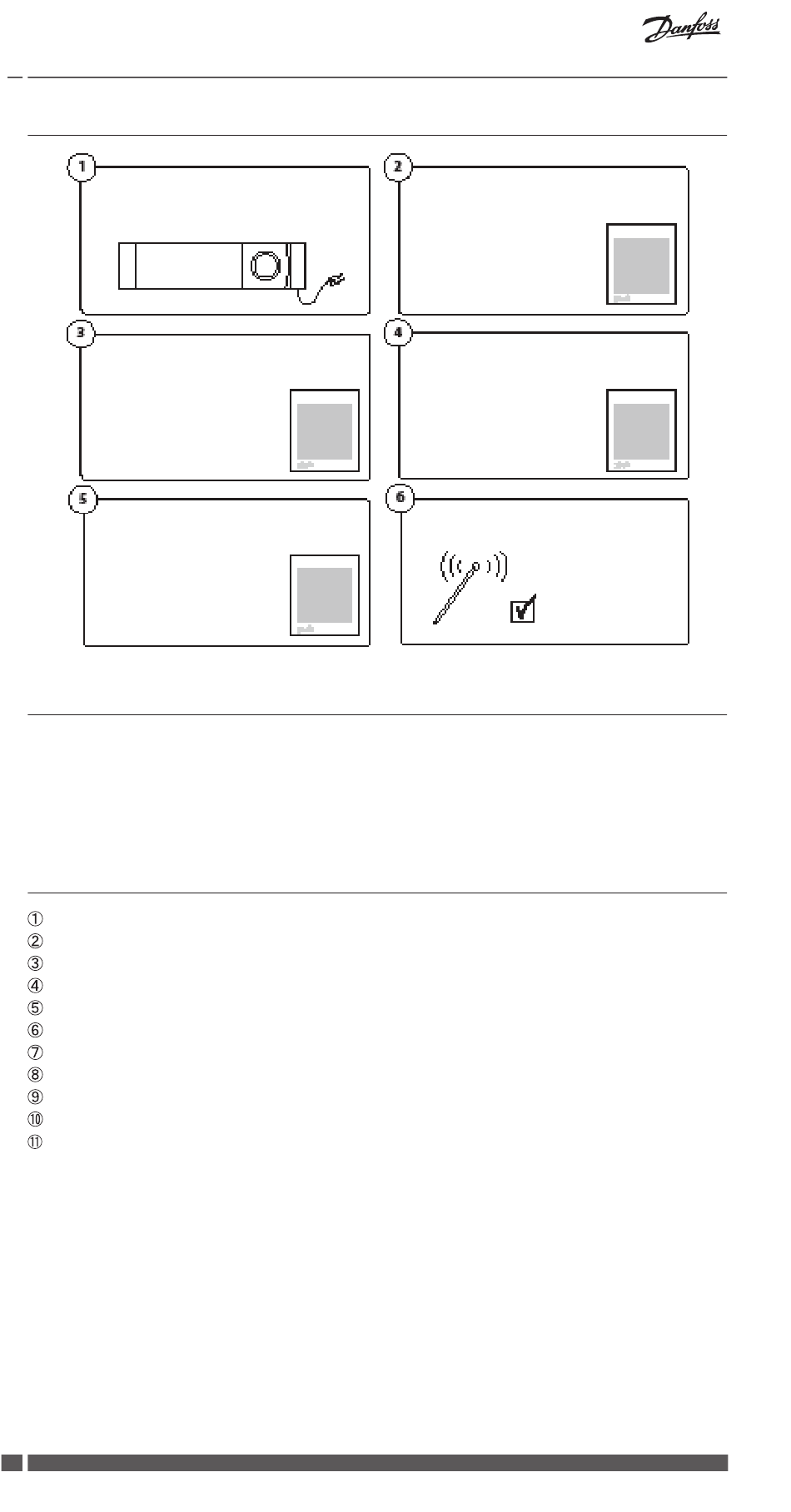

1. Quick guide for Installation

Mount the Danfoss Link™ HC, connect
all actuators (TWA) and power-up the
unit
Create rooms, add outputs and Room
Thermostats - choose output type in
actuator settings
Add any other devices to the system

2. Introduction

Danfoss Link™ is a wireless control system for a variety of heating systems.
The Danfoss Link™ HC is a part of this system allowing wireless control of manifolds for
water based floor heating/cooling.

3. Functional Overview (fig. 2)

Output LEDs.
Boiler relay.
Pump relay.
Actuator connections.
Install/Link Test.
External antenna connection.
Front cover release.
Not in use (Input 1).
Away Function (Input 2) (external ON/OFF switch).
Input for heating/cooling (Input 3) (external ON/OFF switch).
Output cable fixing.
4 06/2013
Add Danfoss Link™ HC to the
Danfoss Link™ CC as a service device
Check the configuration in
Danfoss Link™ HC setting menu
Perform a network test
