Summary of Contents for Paradox 728ULT

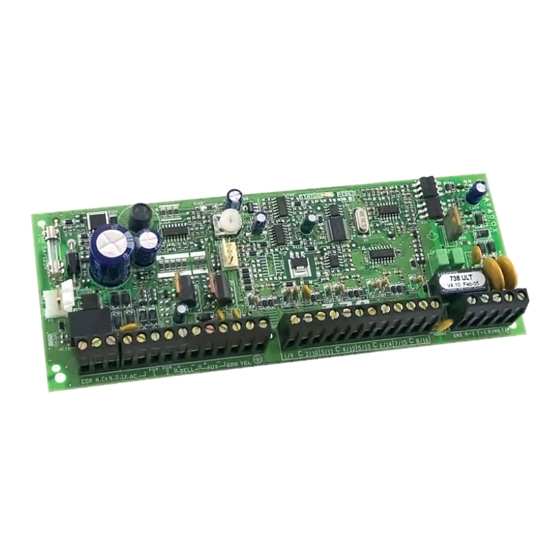

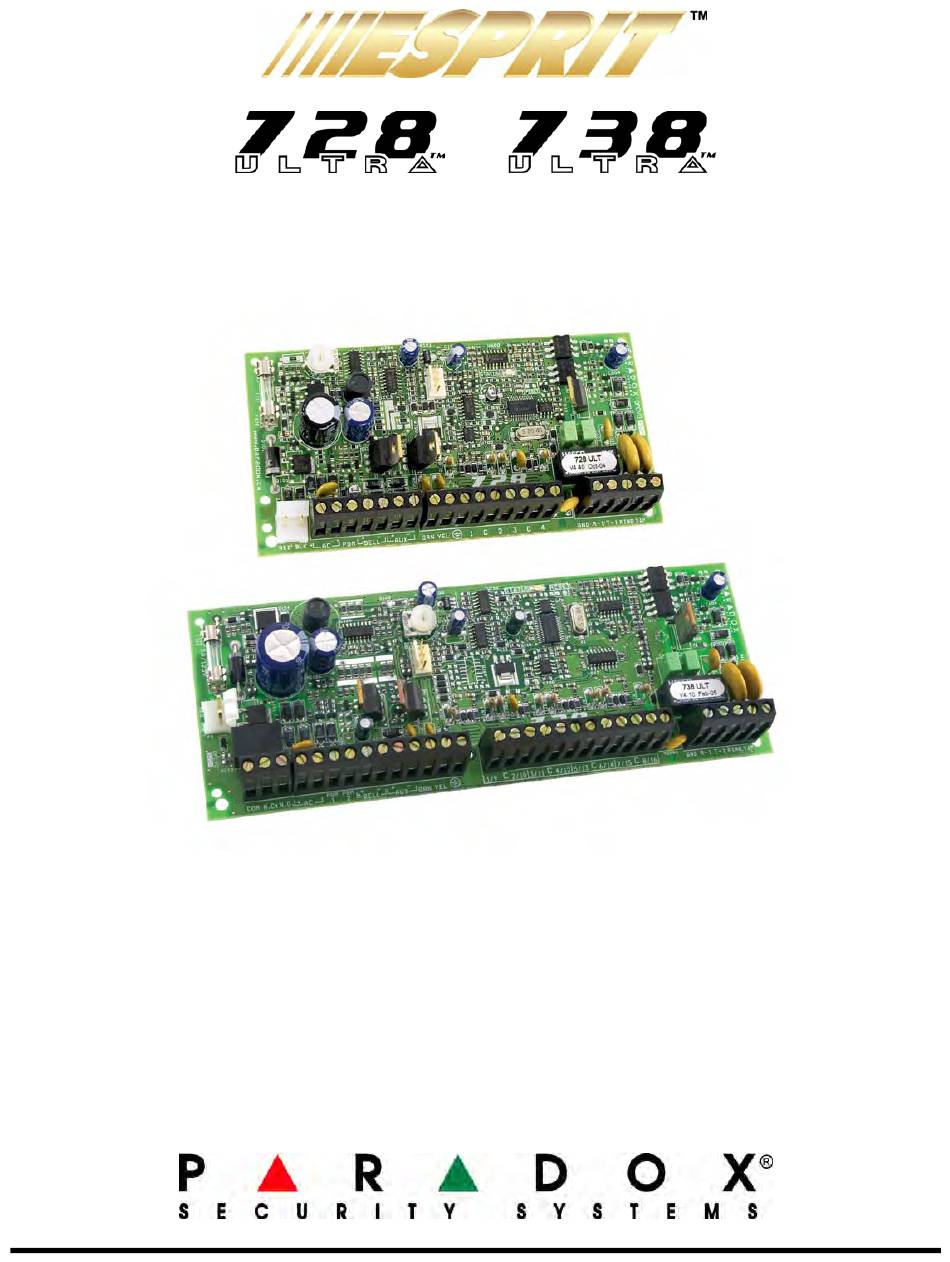

- Page 1 & Versions 4.4 (728ULT) & 4.1 (738ULT) 728ULT 738ULT Reference & Installation Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction..............1 Panel Identifier ..............14 PC Password ..............14 About This Manual..............1 Computer Telephone Number ..........15 New Features ............... 1 Call Espload................ 15 Main Features............... 1 Answer Espload ..............15 Specifications ............... 1 Cancel Communication............15 Call Back................ - Page 4 System B Zones ............... 29 Force/Away Arming ............. 40 Bypass Enabled Zones ............29 Stay Arming................. 41 Auto Zone Shutdown ..............30 One-Key Stay Arming .............. 41 EOL Zones (Enabled/Disabled) .......... 30 One-Key Instant Arming............41 Keypad Zone 1 Supervision..........30 Fast Exit ...................
-
Page 5: Introduction
Part 1: Introduction About This Manual This manual provides all the information you will need to understand panel operation, features and functions. If you are familiar with other security control panels, we recommend that you read this manual at least once to familiarize yourself with panel features and programming. -
Page 6: Installation
Part 2: Installation Location and Mounting Remove the PCB, mounting hardware and keypad from the packaging inside the panel box. The circuit board should not be mounted into the back of the cabinet until all cables are pulled into the cabinet and prepared for connection. Before mounting the cabinet, push the four (728 Ultra) or five (738 Ultra) white nylon-mounting studs into the back of the cabinet. -
Page 7: Auxiliary Power Terminals
16Vac is present at the AC terminals. If AC is present, check the keypad wiring and verify that there isn't a short between the black and red keypad wires. If the keypad does not respond, please contact your local Paradox Distributor. Telephone Line Connection Connect the incoming telephone company wires into the connections of the control panel. -
Page 8: Bell/Siren Output
Bell/Siren Output + and - terminals, power bells and/or other warning devices require a steady voltage output during an alarm. The BELL BELL bell output supplies 12Vdc upon alarm and can support one 20-watt siren or one 30-watt siren. The bell output is microprocessor- controlled and will automatically shut down if the current exceeds 3A. -
Page 9: Keypad Zone Connections
Keypad Zone Connections Each keypad comes with one input terminal which allows you to connect one detector or door contact directly to the keypad. Example: A door contact located at the entry point of an establishment can be wired directly to the input terminal of the entry point keypad instead of wiring the door contact all the way to the control panel. -
Page 10: Connecting An Anti-Tamper Switch On An Led Keypad
Table 2: Keypad Zone Recognition Table If using an LED keypad, set the Zone Select Jumper (J1) on the back of the keypad: Zone Select Jumper J1 OFF = Keypad Zone 1 Zone Select Jumper J1 ON = Keypad Zone 2 If the Zone Select Jumper is changed, the control panel will only recognize the change when the keypad is disconnected and reconnected. -
Page 11: And N.c. Contacts, With Eol Resistor (Ul/Cul)
2.10.2 N.O. and N.C. Contacts, With EOL Resistor (UL/cUL) If your security installation does not require tamper or wire fault recognition, but some detection devices use normally open contacts, connect all detection devices using a 1k end of line (EOL) resistor and program the control panel as shown in Figure 12. -
Page 12: N.c. Contacts, Without Eol Resistor, Atz Series
738 Ultra employ two ways of wiring ATZ connections: ATZ series connections and ATZ parallel connections. The control panel will recognize the installed devices as shown in Figure 15. The extra zones function exactly like any other zone displaying zone status on the keypad and sending separate alarm codes for each zone. -
Page 13: N.c. Contacts, Without Eol Resistor, With Tamper Recognition, Atz Series
2.11.2 N.C. Contacts, Without EOL Resistor, With Tamper Recognition, ATZ Series If your security installation requires tamper recognition and you are using the ATZ feature, connect the detection devices and program the control panel as shown in Figure 17. Do not use devices with normally open contacts, as this will cause the zone to remain open. -
Page 14: Fire Circuit
2.12 Fire Circuit If your security installation requires the use of smoke detectors, define zone 3 as a 24Hr fire zone. When zone 3 is defined as 24Hr, it becomes a 4-wire smoke detector fire zone (2-wire smoke detector support must be disabled, address 086 key [ OFF). -
Page 15: Status Led
2.14 Status LED The green LED is used to show the user what the status of the control panel is. STATUS • If the LED flashes once every second, operation is normal. • If the LED is ON 1 second and OFF 1 second, there is a trouble in the system. •... -
Page 16: Programming Methods
Using Espload there is no limit to the number of account files or panel defaults created and you can assign thousands of programming combinations to the PGM outputs. Espload can also be converted to the language of your choice. Contact your local Paradox Distributor for your free copy of the Espload software. Keypad When programming, use the 728 Ultra &... -
Page 17: Hex Streamlined Section Programming
4.2.2 Hex Streamlined Section Programming This is an alternate method to Hex Programming. The addresses (000 to 043 and 300 to 527) programmed in the Hex Programming method are grouped into 68 sections where each section contains four addresses (i.e. section 00 = addresses 000 to 003). -
Page 18: Panel Settings For Espload
Part 5: Panel Settings for Espload Panel Answer Options Streamline - Section 00 Hex Programming - Address 003 Default: Answering Machine Override Disabled; Number of Rings = 08 The following two options will define how the control panels answer an incoming call from a computer using the Espload software. In order for the Espload software to remotely communicate with the control panel, call the installation site twice using the Espload Software. -
Page 19: Computer Telephone Number
Computer Telephone Number Streamline Section 02 and 03 Hex Programming - Address 008 to 015 The control panel will dial this telephone number when trying to initiate communication with the PC (see Call Espload below). There is no default telephone number and you can enter any number from 0 to 9 up to a maximum of 16 digits. If you would like to enter any special keys or functions, refer to Table 5 on page 18. -
Page 20: Event Reporting
Part 6: Event Reporting Figure 25: Event Reporting Account 1 and 2 Have the same number Section 08 Partitioned Addresses Account 1 and 2 032 to 035 Have the same number System A = Account #1 System B = Account #2 Monitoring Station Telephone Number #1 Sections 04 &... -
Page 21: Reporting Options
Reporting Options Feature Select Programming Address 086; Keys [ ] and [ STAY AWAY FORCE Default: Reporting Disabled When a specific event occurs in the system, the control panel will attempt to report the appropriate event code (if programmed) to the monitoring station. -
Page 22: Monitoring Station Telephone Number 1 (Mstn1)
Figure 26: Reporting Options MSTN = Monitoring Station Telephone Number The following set of timing diagrams represents the dialing sequence of each of the three reporting options. Regular Reporting: Sequence ends and keypad Dialing displays “communication failure” Disconnected trouble key [7]. Split Reporting: All codes are sent to MSTN2 except when the system is in alarm, codes will be sent to MSTN1. -
Page 23: System Account Codes
System Account Codes Streamline - Section 08 Hex Programming - Addresses 032 to 035 All report codes are preceded by a 3- or 4-digit system account code to ensure correct identification to the monitoring station, identifying from which security system the event originated. For example, if a zone opens, the control panel will first send the account code followed by the appropriate report code. -
Page 24: Ademco Contact Id (Programmable Codes)
System Event Event Code Addresses Contact ID Message Contact ID Code # Timer Loss/Timer Programmed 501 and 509 Time/Date Reset TLM Trouble Restore Telco 1 Fault Test Report Periodic Test Panic #1 (keys 1 and 3) Panic Alarm Panic #2 (keys 4 and 6) Medical Panic #3 (keys 7 and 9) Fire Alarm... -
Page 25: Ademco Express
6.5.3 Ademco Express This high-speed reporting format communicates 2-digit (00 to FF) events programmed at addresses 300 to 527 at a speed of 2 seconds per event. Unlike other Ademco formats, the Contact ID Event Codes are not used. Please note this format must use a 4-digit system account code (see System Account Codes on page 19). -
Page 26: Reporting Event Codes
Reporting Event Codes Streamline - Sections 11 to 67 Hex Programming - Addresses 300 to 527 An Event code is a 2-digit hexadecimal value, consisting of numbers from 00 to FF. Each address between 300 and 527 represents a specific event, as described below and in the 728 Ultra & 738 Ultra System Programming Guide. When an event occurs in the system, the control panel will attempt to transmit the 2-digit Event code programmed at the corresponding address to the monitoring station. -
Page 27: Trouble/Trouble Restore Codes
6.9.7 Trouble/Trouble Restore Codes Streamline - Sections 60 to 63 Hex Programming - Addresses 496 to 511 Each of the these addresses represent a specific trouble or restore condition. The control panel will report the appropriate event code to the monitoring station when one of the following conditions occurs or after the condition has returned to normal. -
Page 28: Timed Test Transmission (738 Ultra Only)
Address 090 Key [3] ON: The time programmed in address 046 is changed from days to hours and address 047 will be ignored. The Auto Test report will be transmitted after the number of hours programmed at address 046 and the minutes programmed at address 048 have elapsed. -
Page 29: Zone Definitions
Part 7: Zone Definitions Figure 27: 728 Ultra Zone Related Features Zone Speed (applies to all zones) Address 053 EOL Zones (applies to all zone inputs) Address 088; [ ] key ATZ Zone Doubling (applies to all zone inputs) Address 090; key [8] System A/Stay Zones Address 090;... - Page 30 Figure 28: 738 Ultra Zone Related Features Zone Speed (applies to all zones) Address 053 EOL Zones (applies to all zone inputs) Address 088; [ ] key ATZ Zone Doubling (applies to all zone inputs) Address 090; key [8] System A/Stay Zones Address 090;...
-
Page 31: Zone Speed
Zone Speed Decimal Programming Address 053 Default: 600mS The zone speed applies to all zones whether the system is armed or disarmed. The zone speed defines how quickly the control panel will respond to an open zone. The control panel will not display and/or respond to an open zone until the programmed zone speed elapses. -
Page 32: 24Hr And 4-Wire Smoke Detector Fire Zones
24Hr and 4-Wire Smoke Detector Fire Zones 728 Ultra: Feature Select Programming Address 100; Keys [1] to [10 (0)] 738 Ultra: Feature Select Programming Addresses 100 and 102; Keys [1] to [10 (0)], [ ]/[11] and [ ]/[12]) STAY FORCE AWAY Using Feature Select Programming on page 13, select which zones will be defined as 24Hr zones. -
Page 33: Entry Delay 1
Entry Delay 1 Decimal Programming Address 050 Default: 45 seconds Any zone that has not been identified as either Instant Zones, Follow Zones, Entry Delay 2, or 24Hr and Fire Zones will automatically default to Delay 1. You can program the Delay 1 period between 001 and 255 seconds into address 050. If a zone defined as Delay 1 opens in an armed system, the control panel will wait the pre-programmed period of time before generating an alarm. -
Page 34: Auto Zone Shutdown
7.11.1 Auto Zone Shutdown Feature Select Programming Address 086; Key [ ] or [ TRBL Default: Auto Zone Shutdown Disabled The control panel will automatically bypass any bypass enabled zones which initiate 5 consecutive alarms in the same- armed period. Therefore, the zone will no longer generate an alarm. After the control panel has bypassed a zone, it will report an event code to the monitoring station if programmed at addresses 448 to 457 (728 Ultra) or 465 (738 Ultra). -
Page 35: Arm/Disarm And Alarm Options
Part 8: Arm/Disarm and Alarm Options Figure 29: Arming/Disarming Related Features Auto Arm Time Addresses 044 and 045 Timed Auto Arming Address 086; key [5] Auto Arming Options Address 090; key [2] No Movement Auto Arming Address 086; key [6] No Movement Time Address 055 System A/Stay Arm... -
Page 36: Timed Auto Arming
Timed Auto Arming Feature Select Programming Address 086; Key [5] Default: Timed Auto Arming Disabled The alarm system will automatically arm itself at a specified time every day. Please note that as with Regular arming, the system will not arm if a zone is open, but will always report a "late to close" to the monitoring station. If this occurs, the system will not arm until the next day. -
Page 37: One-Key Stay/System A Arming
One-Key Stay/System A Arming Feature Select Programming Address 088; Key [8] Default: Disabled Press and hold the [ ] key for 2 seconds to Stay arm the system if partitioning is disabled. If the system is partitioned, the STAY control panel will arm System A. Key [8] OFF: One Key Stay/System A Arming Disabled Key [8] ON: One Key Stay/System A Arming Enabled ] + Installer code + [0] [8] [8] + [8] ON/OFF + [... -
Page 38: Silent Zones And Silent Panics Option
8.10 Silent Zones and Silent Panics Option Feature Select Programming Address 086; Key [9] Default: Generate a Silent Alarm If the [9] key is on, silent zones or silent panics only transmit a report to the monitoring station. The system will not indicate an alarm and will not have to be disarmed. -
Page 39: Pgms (Programmable Outputs)
Part 9: PGMs (Programmable Outputs) We strongly suggest using the Espload software to program the PGM(s). PGM Types Streamline - Sections 09 Hex Programming - Address 039 The 728 Ultra and 738 Ultra control panels have either one (728 Ultra) or two (738 Ultra) programmable outputs (PGMs). When a PGM closes, a ground is supplied to activate any device or relay connected to it, providing up to a maximum of 50mA (UL 30mA). -
Page 40: Pgm Options
6. Record these numbers and program them into the control panel or use the Espload Software to download the data directly to the control panel. If you do not have a copy of the Espload Software, you can obtain a free copy from your local Paradox distributor. Table 14: Commonly Used PGM Options... -
Page 41: Other Options
Part 10: Other Options 10.1 Telephone Line Monitoring (TLM) Feature Select Programming Address 086; Keys [2 ] and [1] Default: TLM Disabled When enabled, the system verifies the existence of a telephone line every 4 seconds. If the system detects a trouble, the LED will flash ON for 1 second and OFF for 1 second. -
Page 42: Panel Time
Silent operation: When using the panic keys, the control panel will emit a single confirmation beep. The control panel will transmit the event codes programmed at addresses 513, 514 and 515. The alarm will latch (no audible alarm) and the light on the keypad will flash until the system is disarmed by a valid user code. -
Page 43: Tamper Bypass Options
10.8 Tamper Bypass Options Feature Select Programming Address 090; Key [6] Default: Generate alarm on bypassed zone tamper With this option enabled, the control panel will not generate an alarm if a tamper is detected on a bypassed zone while the system is armed. -
Page 44: User/Keypad Functions
Part 11: User/Keypad Functions The innovative Esprit keypads take a new approach to security features and functions. Each numeral from 1 to 10 (728 Ultra) or 12 (738 Ultra) on the LED keypad represents each zone, from 1 to 10 (or 1 to 12) respectively, on the control panel. When using the LED keypad with the 738 Ultra, if the [2 ] key flashes, press the [2 ] key to view the status of zones 13 to 18 which are represented by keys [1] to [6]. -
Page 45: Stay Arming
11.4 Stay Arming Stay arming allows the user to remain in the protected area while partially arming the system. This means that the user can stay in and move around the establishment, while certain designated zones are armed. For example, entry/exit points like doors or windows, the basement, or perhaps all the zones on the perimeter of the establishment may be armed when going to sleep at night, while the other zones remain deactivated. -
Page 46: One-Key System A Arming
If a mistake is made entering the code or if a zone in the desired system is open when entering the code, the keypad will emit a rejection beep. When the access code is correctly entered, the keypad will emit a confirmation beep. The keypad can display the status of both systems. -
Page 47: Keypad Chime Zones (On Led Keypads)
previous bypass status will be re-established. This eliminates the need to re-enter the bypass entries every time the system is armed. If a user is in the process of entering new bypass entries on the keypad, pressing the [ ] key will override new information and reinstate previous bypass entries. -
Page 48: Timer Loss - Key [8]
11.12.7 Timer Loss - Key [8] The illumination of the [8] key indicates that the control panel’s internal clock must be reprogrammed. To reprogram the timer press: ] + (Installer, Master or User code 1) + [ ] + 2 digits (00 to 23) representing hours + 2 digits (00 to 59) ENTER representing minutes + [ ENTER... -
Page 49: Warnings
Warranty Except for telephone company provided ringers, all connections to the Paradox Security Systems Ltd. (“Seller”) warrants its products to be free telephone network shall be made through standard plugs and telephone from defects in materials and workmanship under normal use for a period of company provided jacks, or equivalent, in such a manner as to allow for one year. - Page 50 Requirements and Guidelines for UL Installations Warning: For UL installations, the metallic enclosure must be UL has only evaluated the 728ULT for compatibility with the grounded to the cold water pipe or to the grounding rod. Ademco model 685, FBI model CP220FB, SUR-GUARD SG- MLR2-D6 and Silent Knight model 9000.
-
Page 51: Index
Index Numerics ................28 ................15 24Hr Zones Call Back ...............15 2-Wire smoke detector Call Espload ..............10 ............15 Connections Cancel Communication ..............28 Recognition ............43 Chime Zones, Keypad ........10 4-Wire smoke detector connections ..........34 Closing Delinquency Timer ..............34 Code Priority ........36 Commonly Used PGM Options Table ..............1 About this manual Communicator Formats... - Page 52 ............21 Reporting Format Panel ............. 12 Hexa Programming .............. 14 Answer Options ....... 13 Hexa Streamlined Section Programming ............... 14 Identifier ............14 Settings for Espload ................38 Time Input Connections Panic For Single Zones. See Single Zone Connections ................
- Page 53 ..............22 .............40 Restore Codes User / Keypad Functions .............40 Restrict Arming User Code Programming ............34 ................11 On Battery Failure User Codes ............34 On Tamper Trouble ..........38 Wire Fault Recognition Options ............10 Serial Output Connector ............22 Shutdown Codes, Zone ............34 Silent Panics Option ................28 Zone 4 ............34...
- Page 54 Notes...
- Page 56 For technical support in Canada or the U.S., call 1-800-791-1919 for English or 1-866-912-0600 for French, Monday to Friday, 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.ca. 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444...
