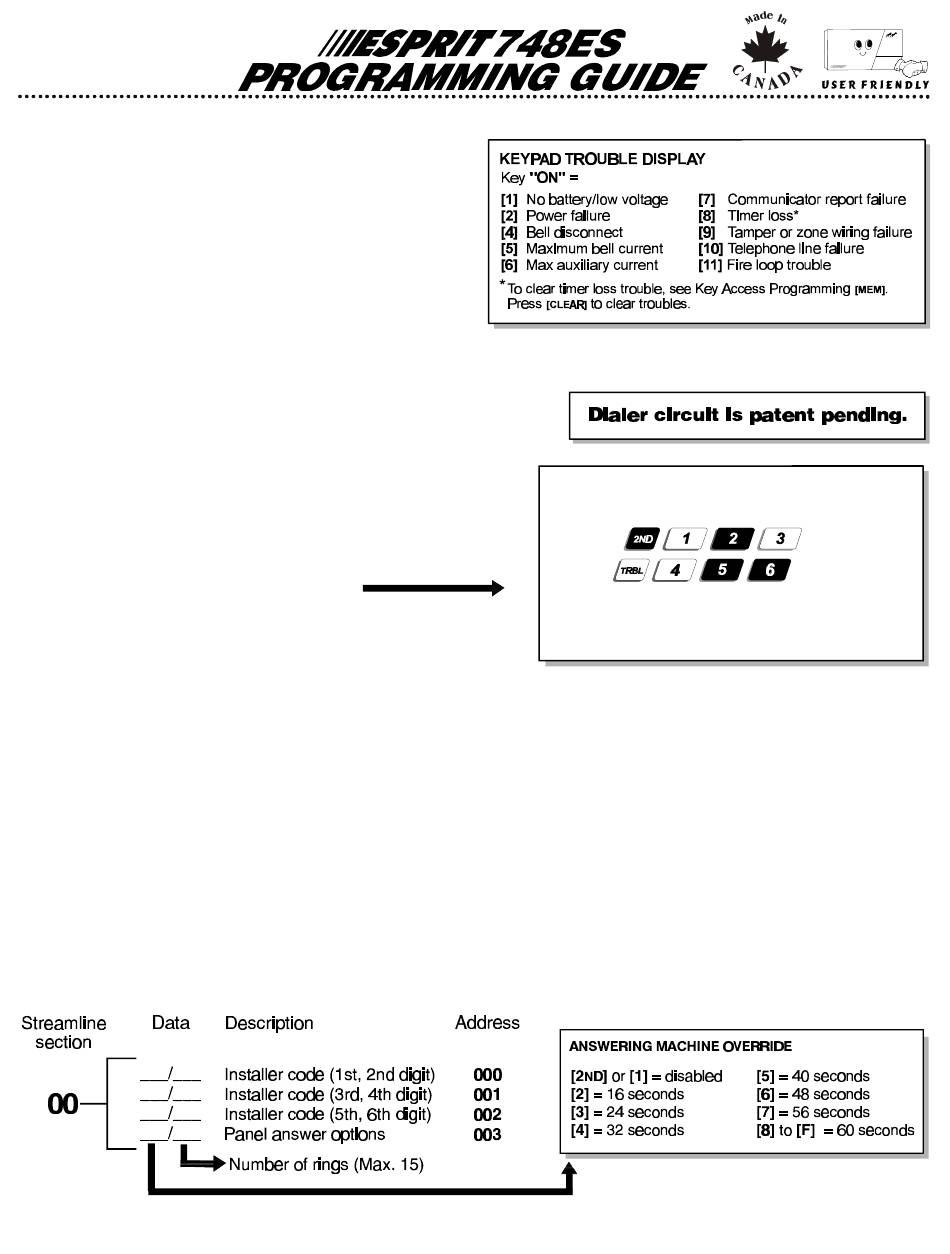

Paradox Esprit 748ES Programming Manual

Paradox Esprit 748ES Programming Manual

Hide thumbs Also See for Esprit 748ES:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
CONTROL PANEL RESET:
Installer lock must be unlocked.
(Address 058: enter any value other than 147)
Power down reset
(1) Remove battery and AC to power down the unit.
(2) Connect a jumper between "reset jumper" pins.
(3) Connect AC then the battery.
(4) Wait 10 seconds.
(5) Remove jumper.
Factory default installer and master codes will be reinstated. Values entered at addresses 008-043, 062-126 and 300-527
as well as all user codes, will be erased ([2
HEXA PROGRAMMING:
All digits from 0 to F are valid. Values are programmed into
memory locations from address 000 to 043 and from address
300 to 527.
1) Press [
] + installer code.
ENTER
2) [
] will flash (programming mode).
ENTER
3) Enter 3 digit memory address.
4) Current value will be displayed on keypad.
5) Enter 2 digit data.
6) Go to step 3 for next address.
To exit programming mode, press [
STREAMLINED SECTION PROGRAMMING
Can be used to program sections 00 to 67. (addresses 000 to 043 and 300 to 527)
Press [
], installer code, and [7].
ENTER
Enter a 2-digit section number, followed by 8 digits to program that section (confirmation beep). Data will be saved auto-
matically and the software advances to the next programming section. To exit programming mode press [
INSTALLER CODE:
Full access to programming, except access codes. (addresses 127-299) No access to arming/disarming. Can be used to
modify installer code. Use only numeric keys from [1] to [10]. (key [10] = 0)
PANEL ANSWER OPTIONS:
First digit disables "Answering Machine Override" (key [2
second call (see table below). Second digit determines number of rings required before panel will answer. If [2
entered, panel will not answer. (Default value is [2
SOFTWARE VERSION 3.10
] [2
ND
ND
].
CLEAR
([2
] and [
ND
747474
(reset code
)
]). Programmed values of all other addresses do not change.
HEXA DISPLAY
If key is lit = 8
If key is lit = 8 = 4
] keys alternately flash.)
ENTER
(addresses 000, 001, 002)
(address 003)
] or key [1]), or determines period of time between first and
ND
] [8].)
ND
- 1 -
= 4
=
2
=
=
2
=
No display = SKIP (empty)
10 = [0] = [A]
SECTION 00
48ESEP-02
Value of
1
2
ND
digit = 10
( 8 + 2 = 10)
Value of
1
ST
digit = 3
( 2 + 1 = 3)
1
= "3A"
VALUE
No light = 0
].
CLEAR
SECTION 00
][2
] is
ND
ND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Esprit 748ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradox Esprit 748ES

Summary of Contents for Paradox Esprit 748ES

  • Page 1 48ESEP-02 SOFTWARE VERSION 3.10 CONTROL PANEL RESET: Installer lock must be unlocked. (Address 058: enter any value other than 147) Power down reset (1) Remove battery and AC to power down the unit. (2) Connect a jumper between "reset jumper" pins. (3) Connect AC then the battery.

  • Page 2: Telephone And Account Numbers

    PG748ES TELEPHONE AND ACCOUNT NUMBERS: (reset empty) If only one central station phone number is used, program the same number for telephone number 1 and 2. [10] = the number "0" = switch from pulse to tone while dialing [11] = pause 4 seconds [12] = end of number...

  • Page 3: Communicator Formats

    PG748ES Streamline Data Description Address section ___/___ Future use TIME CORRECTION: ___/___ 1st digit: value must be entered i.e. (address second digit) 2nd digit: time correction (See table) - No adjustment - Minus 4 sec. ___ ___ - Plus 4 sec. - Minus 8 sec.

  • Page 4: Reporting Codes

    PG748ES REPORTING CODES: (reset code = “empty" ] [2 All digits from are valid. Enter (skip) = digit will not be reported except for contact I.D. programmable codes. For single digit reporting enter "skip" ( ) as first digit. If CONTACT I.D. format (all codes) is selected, addresses 300 to 527 (sections 11 to 67) do not have to be programmed. (Select Contact I.D (all codes) - key [10] for both central station numbers at section...
  • Page 5 PG748ES REPORTING CODES: (reset code "empty" DISARMING (opening) CODES: Streamline Data Description Address Streamline Data Description Address section section See previous page ___/___ User code 25 ___/___ User code 26 ___/___ Espload ___ __ User code 27 ___/___ Master ___/___ User code 28 ___/___ ___/___...
  • Page 6 PG748ES REPORTING CODES: (reset code "empty" ZONE 1 TO 12 RESTORE CODES: ZONE 13 TO 24 RESTORE CODES: Streamline Data Description Address Streamline Data Description Address section section ___/___ Zone 1 ___/___ Zone 13 Keypad 1 ___/___ Zone 2 ___/___ Zone 14 Keypad 2 ___/___...

  • Page 7: Decimal Programming

    PG748ES DECIMAL PROGRAMMING 3 Digit Decimal Value Programming Used to program addresses 044 to 061. Values entered must contain 3 digits between "000" and "255". ([10] = 0) Decimal value programming: 1) Press [ ] + installer code. ([ ] key will flash.) ENTER ENTER 2) Enter 3 digit address (044 to 061).

  • Page 8: Feature Select Programming

    PG748ES DECIMAL PROGRAMMING 049: ___/___/___ (seconds) Exit delay (factory default 60 seconds) 050: ___/___/___ (seconds) Entry delay 1 (factory default 45 seconds) 051: ___/___/___ (seconds) Entry delay 2 (factory default 45 seconds) 052: ___/___/___ (minutes) Bell cut-off time (factory default 5 minutes) 053: ___/___/___ ( x 15 mSec.) Zone speed (factory default 600 mSec.) 054: ___/___/___ (minutes) Power failure report delay (factory default 30 minutes) (000 = disabled) 055: ___/___/___ ( x 15 minutes) "No movement"...

  • Page 9: Reporting Options

    PG748ES FEATURE SELECT PROGRAMMING (continued) (On/off status of key lights determines which feature is selected.) 086: Address 086, Key [2 ] [1] See "TLM" table Keyswitch = regular arm stay arm / System A Keyswitch arming enabled Call back enabled Auto arm on time enabled enabled...

  • Page 10: Key Access Programming

    PG748ES Note: Do not use the Intellizone feature and an entry delay for the same zone, otherwise an alarm may occur as a user tries to disarm the system. KEY ACCESS PROGRAMMING Programs features quickly, without entering addresses or section numbers. To activate “key access programming”, press [ ], followed by installer, master or user code 1.

  • Page 11: Single Zone Connections

    PG748ES The system hardware will recognize the following zone conditions: Note: Keypad zones always use (1K ) EOL resistor. SINGLE ZONE CONNECTIONS ZONE connection, without EOL resistor (N.C. contacts) address 088, key [ ] = "on" key [10] = "off " (reset) key [11] = "off "...
  • Page 12 UL Falcon model 5454, ULC BRK 2412. Not permitted on UL listed systems Power supervision relay model MR3-UL. Paradox Security Systems Graphic Dept 780 Industrial Blvd., St-Eustache, Montreal, Quebec, Canada J7R 5V3 Fax: (450) 491-2313 http://www.paradox.ca PRINTED IN CANADA - 09/01...
