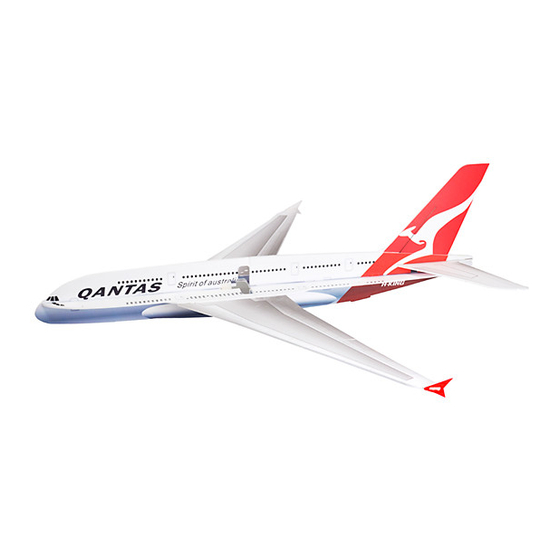

H-KING Glue-N-Go A380 PP Kit Instruction Manual
  1. Manuals
  2. Brands
  3. H-KING Manuals
  4. Toy
  5. Glue-N-Go A380 PP Kit
  6. Instruction manual

H-KING Glue-N-Go A380 PP Kit Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Glue-N-Go A380 PP Kit and is the answer not in the manual?

Questions and answers

Related Manuals for H-KING Glue-N-Go A380 PP Kit

Summary of Contents for H-KING Glue-N-Go A380 PP Kit

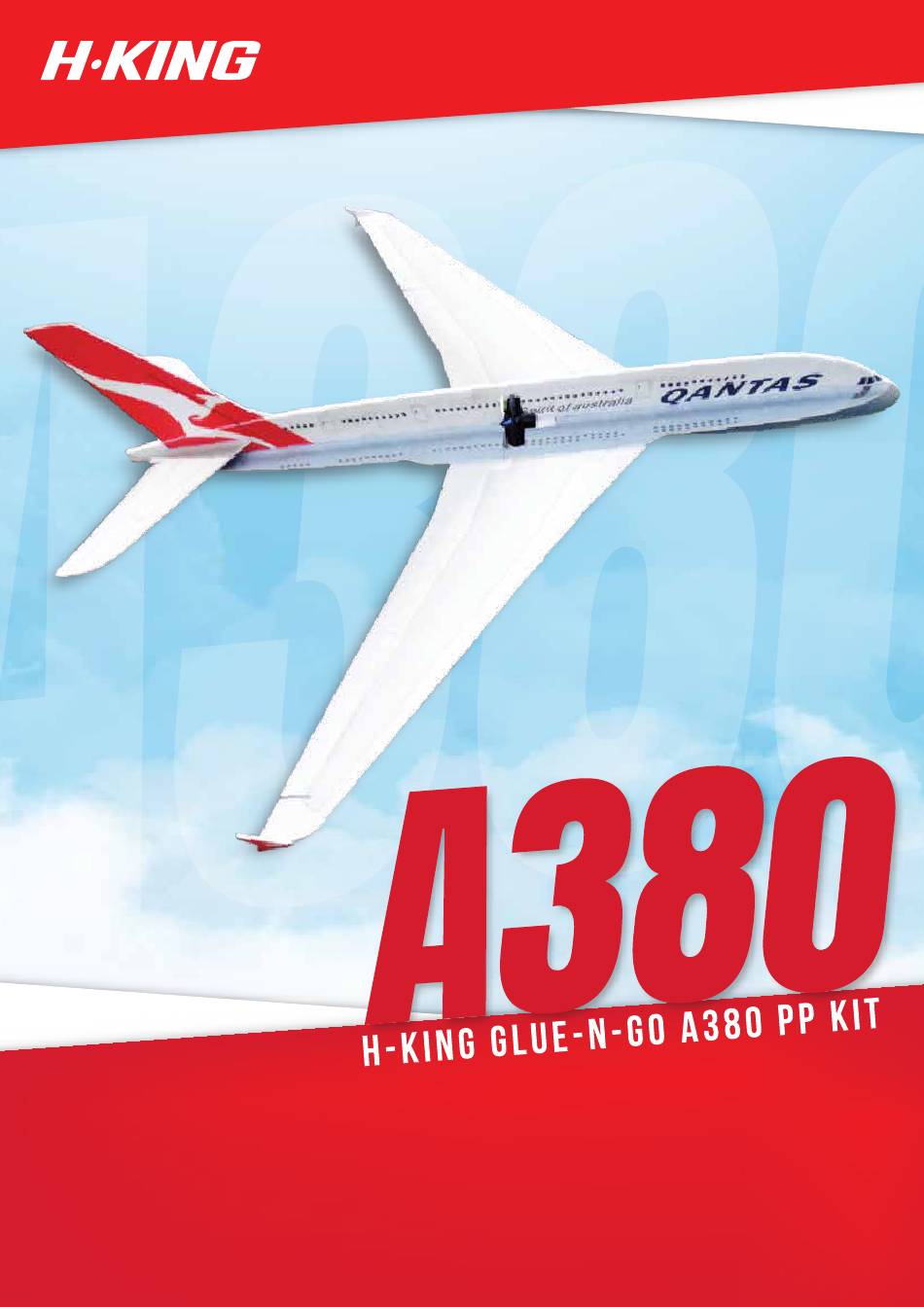

  • Page 1 INSTRUCTION MANUAL...

  • Page 3: Packing List

    Packing List 1: PP A380 fuselage *1 6: 2mm Quick rod adjuster *4 2: Carbon tube 5mm *6 7: Hinge *4 3: Carbon strip 5*1mm *4 8: Hook and loop tape *1 4: Pull rod 1.2mm *4 9: M3 screws *4 5: Motor mount *1 Tools 1: 1.5mm allen wrench...

  • Page 4: Electronic Equipment

    Electronic Equipment (Recommended) Motor ： 2212/2216 2200KV-2600KV*1 Battery ： 1300-2200mah 3S 40-60C Prop ： 5×5 3 blades x 1 pc Y cord: 2 pcs ESC ： 40A x 1 pc 30cm extension x 2 pcs Servo ： 9 grams x 4 pcs 50cm extension * 1 pcs (one is a reversed servo) Butt joint and hot glue the vertical fuselages together as shown.
  • Page 5 Notice don’t let glue flow into the carbon strip’s groove. Hot glue the horizontal fuselages together as shown.
  • Page 6 Glue the carbon strips onto the fuselage by using foam-safe CA glue. Apply foam-safe glue on both sides of the fuselage, then wait for a while and press both fuselage halves together.
  • Page 7 Then glue the vertical fuselages together. Make sure the carbon strip are inserted into the groove on both sides. Ensure the working table is flat and even. Then get some heavy weights to put it on top of the fuselage until the glue is dry. Use a Xacto knife to cut a slot as shown.
  • Page 8 Then cut off the bulge as shown by using a knife. Assemble the horizontal fuselage on wing by using hot glue. Align the motor hole. Then wait for the glue to dry. Assemble the horizontal fuselage on wing using by hot glue.
  • Page 9 Then flip the plane over and put the plane on a work table. Install and glue the carbon rod through the hole on the vertical fuselage as shown. Glue carbon tube on wing by using foam-safe glue as shown.
  • Page 10 Assemble the horizontal tail onto the fuselage by using hot glue. Keep the vertical straight and true. Then glue the carbon tube on the horizontal tail (very similar to the wing installation).
  • Page 11 Glue the carbon tube onto the horizontal tail (very similar to the wing installation). Stick the carbon strips onto the vertical tail by using foam-safe glue. Install motor on motor mount with 4 pcs M3 screws.
  • Page 12 Before we install all the electronic components onto the airframe, make sure the servo arms are perpendicular to the servo case. This is to ensure that the servo horns are travelled symmetrically in both directions. Notice: A reversed servo is used for the horizontal tail.
  • Page 13 Position the aileron servo and glue the servo into place as shown. Install the supplied push rods onto the push rod adjusters and trim it accordingly. Install both control horns on the elevator by using the hot glue as shown.
  • Page 14 Position each of the elevator servo halfway(Note: one servo is in reversed rota- tion) into the servo cutout. Once satisfied with the fit, hot glue the servo in place as shown. Ensure the control surfaces are all levelled. Then install the push rod onto the quick rod adjuster and lock it in place with the grub screws.
  • Page 15 Install a receiver and an Esc onto the fuselage by using the supplied hook and loop tape. Please tidy up all the servo leads by using some nylon cable ties to prevent from the prop catching the servo leads. Position the battery according to the C of G location. Once satisfied with the C of G, mark the battery location on the fuselage and you may secure it on the fuse- lage by using the supplied hook and loop tape.
  • Page 16 Install winglet on the wing tip by using hot glue Position the vertical tail to the fuselage, slide the carbon strip into the slot on the fuselage and secure it by using hot glue. Ensure the vertical fin is perpendicular to the wing and the stabiliser.
  • Page 17 Fix aileron on wing and horizontal tail using foam glue. Notice : Don’t use fiber tape or other kinds of tape. Foam glue is a good hinge for PP sheets. C of G location is right at the red dot shown in the picture below.
