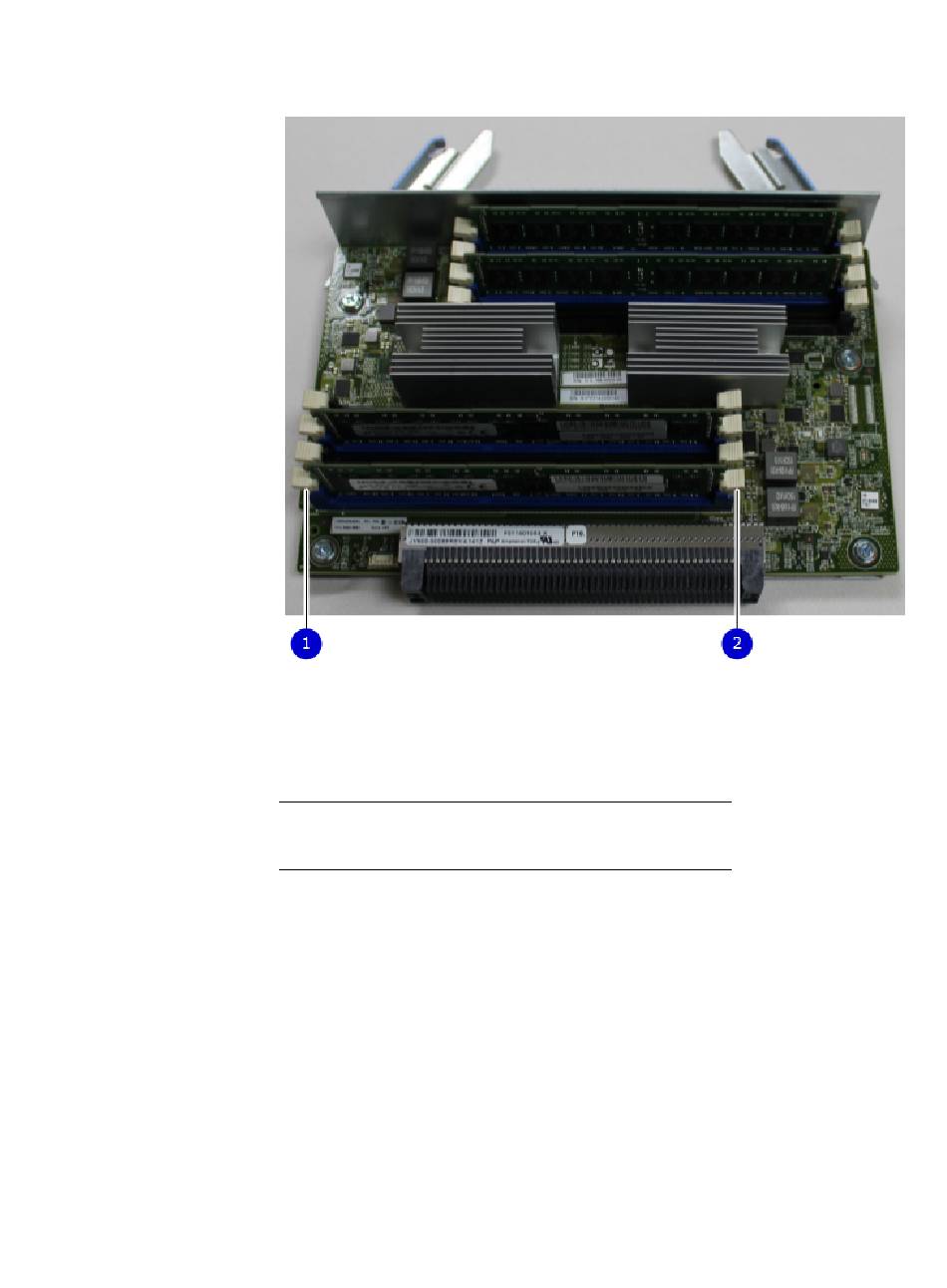

Figure 9 Removing DIMM
1. Side release latch
2. Side release latch
7. Push down on the release latches to release the DIMM. After the DIMM pops up, grasp
the DIMM by its edges and remove it.
Note
Hold DIMMs only by the edges. Do not touch the components.
DIMM and Memory Riser Card Replacement and Memory Upgrade
Remove and install a DIMM
13
