3. The I/O module
3.3

BUFFER/FEEDER

Festo P.BE-CB-COMP-EN en 1102d

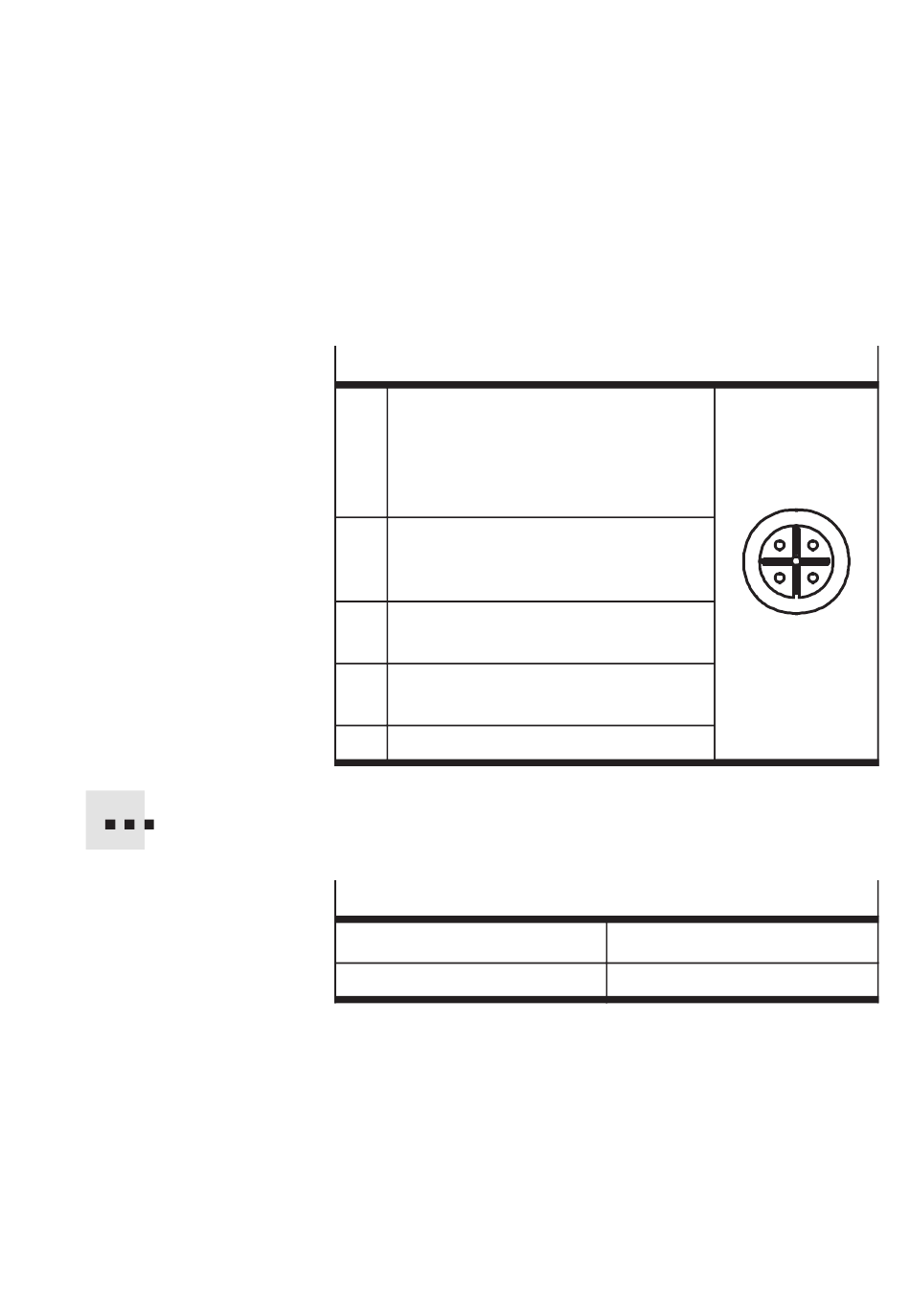

Connection assignment
BUFFER/FEEDER connector socket
O/1 24 V DC/Box ready
– Reference voltage for sensors
(switched off in Stop status)
– Ready status
– Control for transporting device
O/2 Feeder
Controlling the supply system
(small parts conveyor)
3 GND
Reference voltage for sensors
I/4 Buffer
Buffer zone sensor 1
5 Do not connect
Direct connection can optionally be made with a Festo Duo
cable (see Accessories, Appendix A.6).
Identifying the Duo cable
Signal x
Signal x + 1
Controlling the small parts conveyor (feeder)
If it is possible to connect an external enable signal (24 V DC)
to the small parts conveyor, connect this signal via pin O/2 on
the BUFFER/FEEDER plug.
3
2
Buffer zone sensor 1
Small parts conveyor (feeder)
4
1
5
