2. Fitting and commissioning
1
Mounting profile
2
Optical channel
of the camera
– Inside height:
40 mm
– Inside passage:
60 mm
3
Glass surface on
the prism
support (opening
for laser beam)

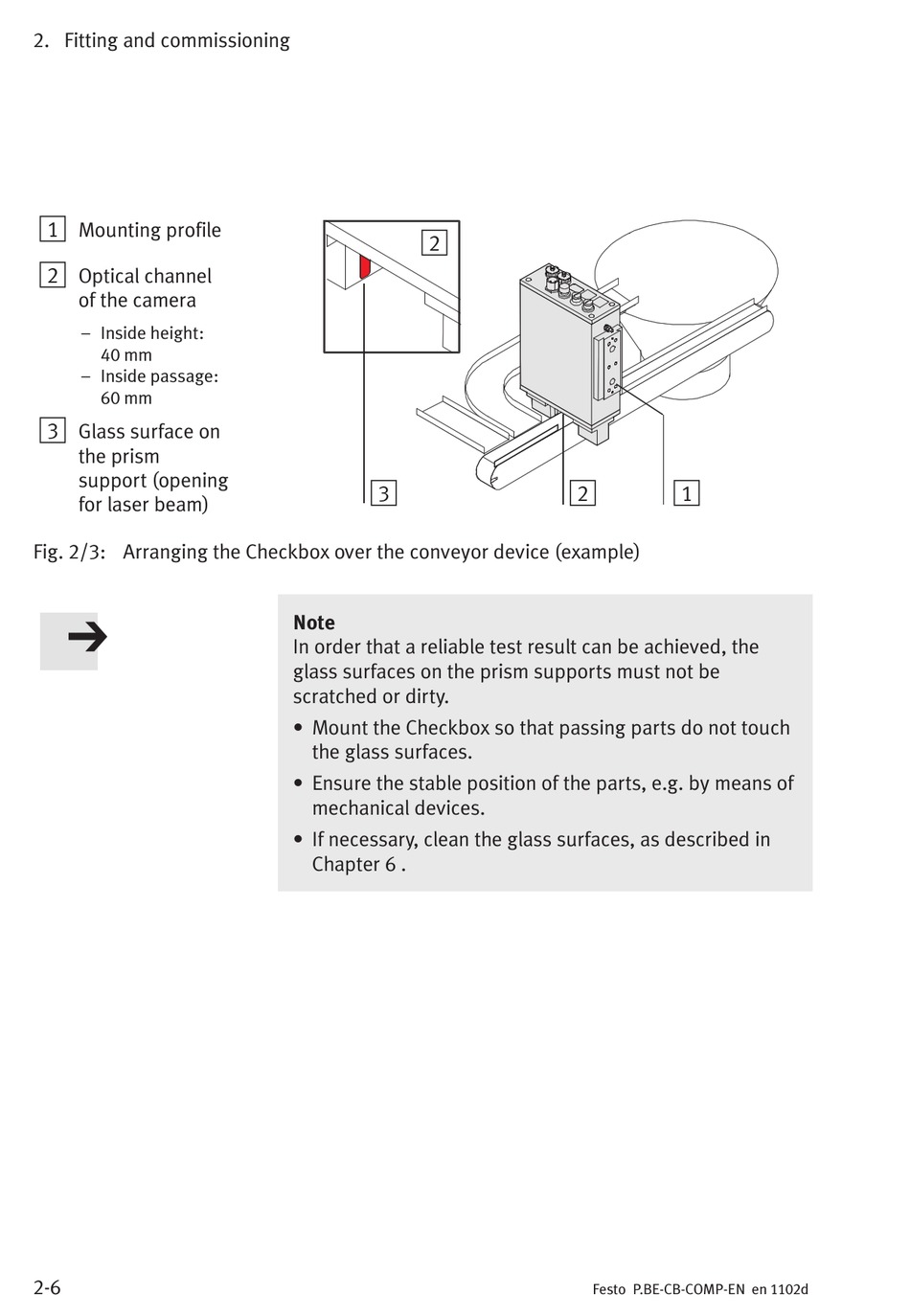

Fig. 2/3: Arranging the Checkbox over the conveyor device (example)
2-6
2
3
Note
In order that a reliable test result can be achieved, the
glass surfaces on the prism supports must not be
scratched or dirty.
• Mount the Checkbox so that passing parts do not touch
the glass surfaces.
• Ensure the stable position of the parts, e.g. by means of
mechanical devices.
• If necessary, clean the glass surfaces, as described in
Chapter 6 .
2 1
