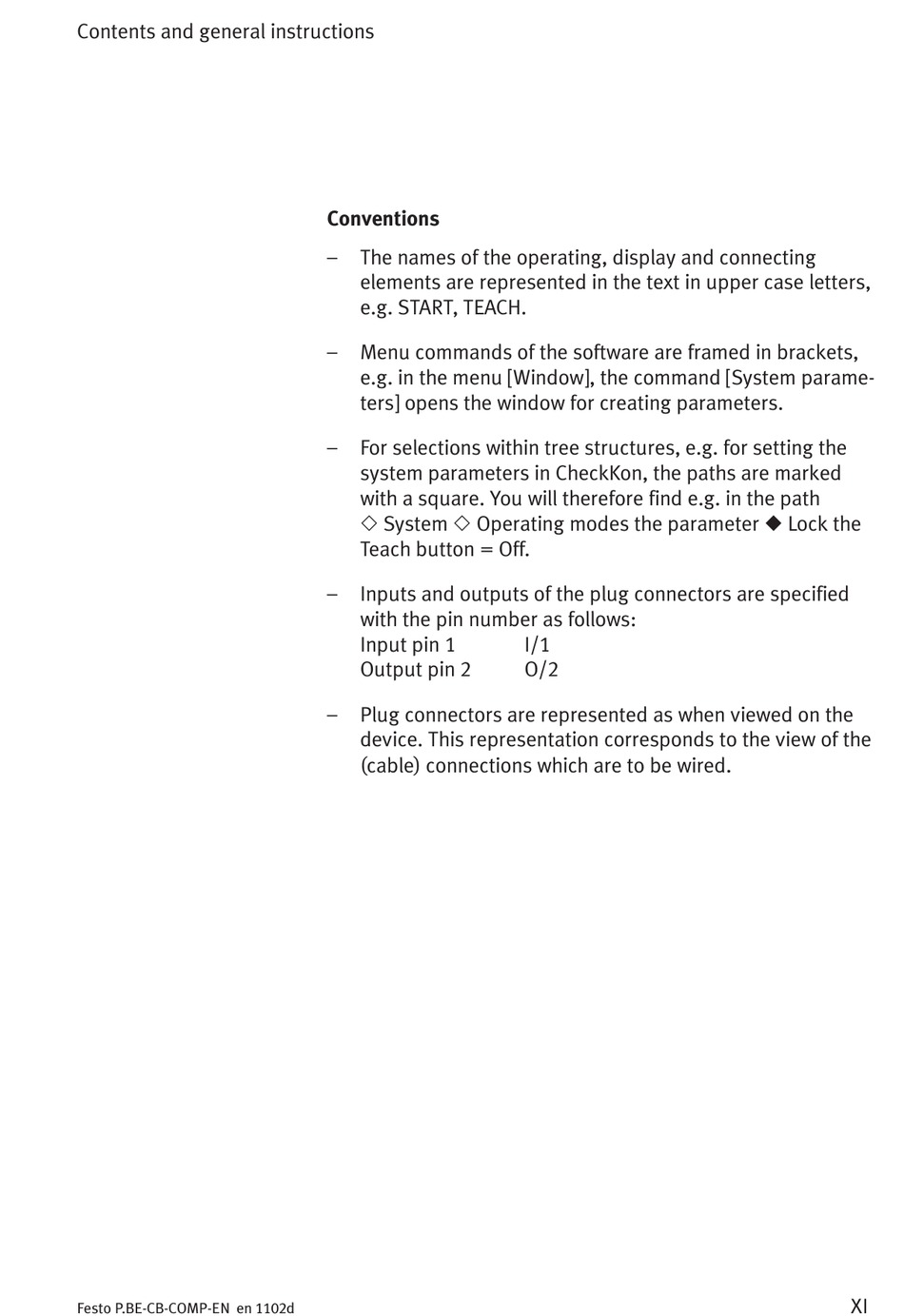

Festo Checkbox Compact CHB-C-X Manual page 13

Contents and general instructions
Festo P.BE-CB-COMP-EN en 1102d
Conventions
– The names of the operating, display and connecting
elements are represented in the text in upper case letters,
e.g. START, TEACH.
– Menu commands of the software are framed in brackets,
e.g. in the menu [Window], the command [System parame-
ters] opens the window for creating parameters.
– For selections within tree structures, e.g. for setting the
system parameters in CheckKon, the paths are marked
with a square. You will therefore find e.g. in the path
Z System Z Operating modes the parameter z Lock the
Teach button = Off.
– Inputs and outputs of the plug connectors are specified
with the pin number as follows:
Input pin 1
Output pin 2
– Plug connectors are represented as when viewed on the
device. This representation corresponds to the view of the
(cable) connections which are to be wired.
I/1
O/2
XI
