6. Slide the drawer back into the drive tray by pushing it from the center and closing both levers.
Risk of equipment malfunction – Make sure to completely close the drive drawer by pushing both levers.
Attention:
You must completely close the drive drawer to allow proper airflow and prevent overheating.
7. Attach the bezel to the front of the drive tray.

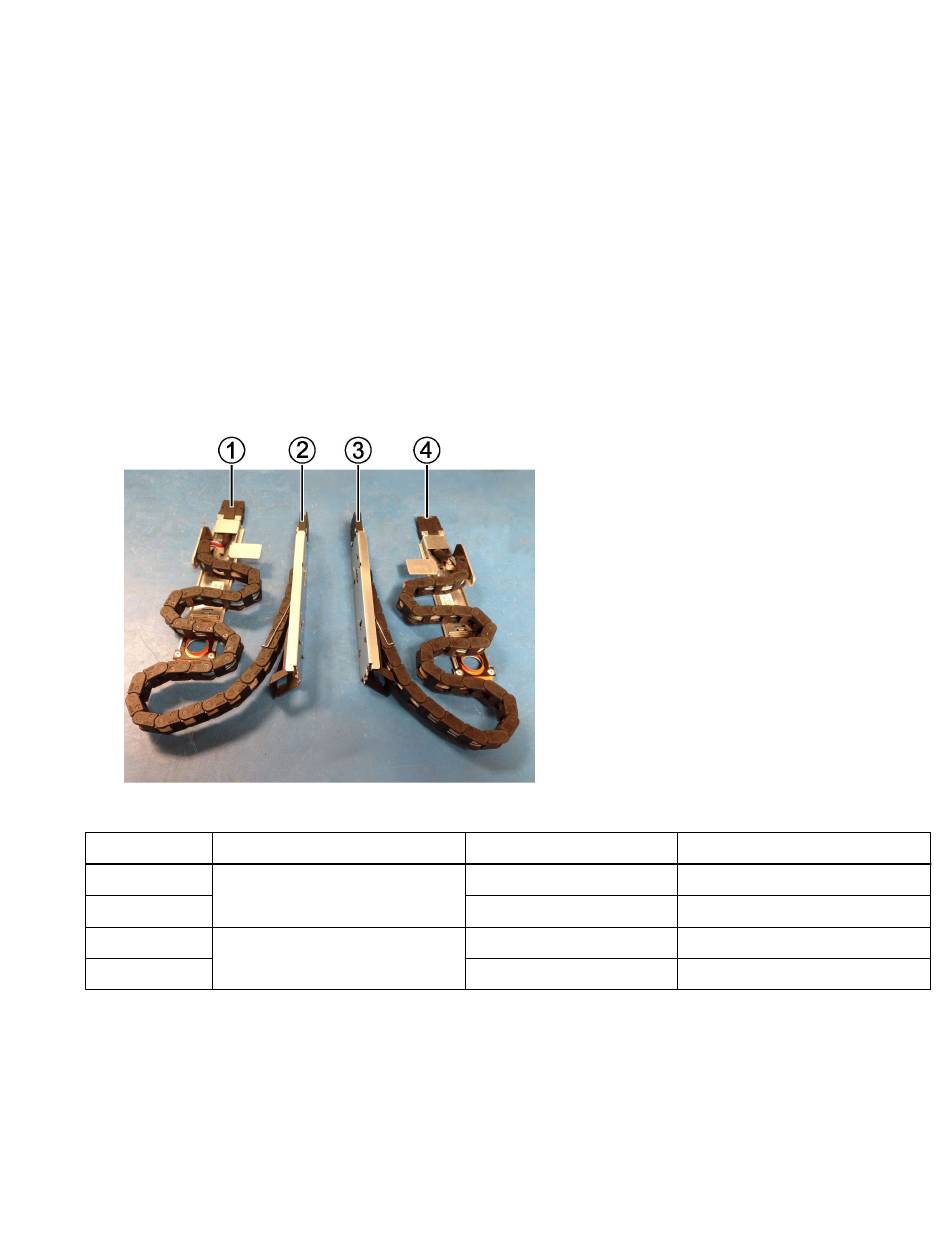

Attaching the cable chains
The final step in installing a drive drawer is attaching the left and right cable chains to the drive tray. When attaching a cable
chain, reverse the order you used when disconnecting the cable chain. You must insert the chain's horizontal connector into the
horizontal bracket in the enclosure before inserting the chain's vertical connector into the vertical bracket in the enclosure.
Before you begin
• You have replaced the drive drawer and all of the drives.
• You have two replacement cable chains, marked as L (left) and R (right).
Callout
1
2
3
4
Steps
1. From the back of the drive tray, remove the fan canister on the left side, and set it aside.
2. If the tray is powered on, ensure that the right fan goes to its maximum speed.
Possible equipment damage due to overheating – If the tray is powered on, do not remove both fans at the
Caution:
same time. Otherwise, the equipment might overheat.
3. Follow these steps to attach the left cable chain:
Attaching the cable chains
Cable chain
Left
Right
Connector
Horizontal
Vertical
Vertical
Horizontal
Connects to
Drive drawer
Midplane
Midplane
Drive drawer
