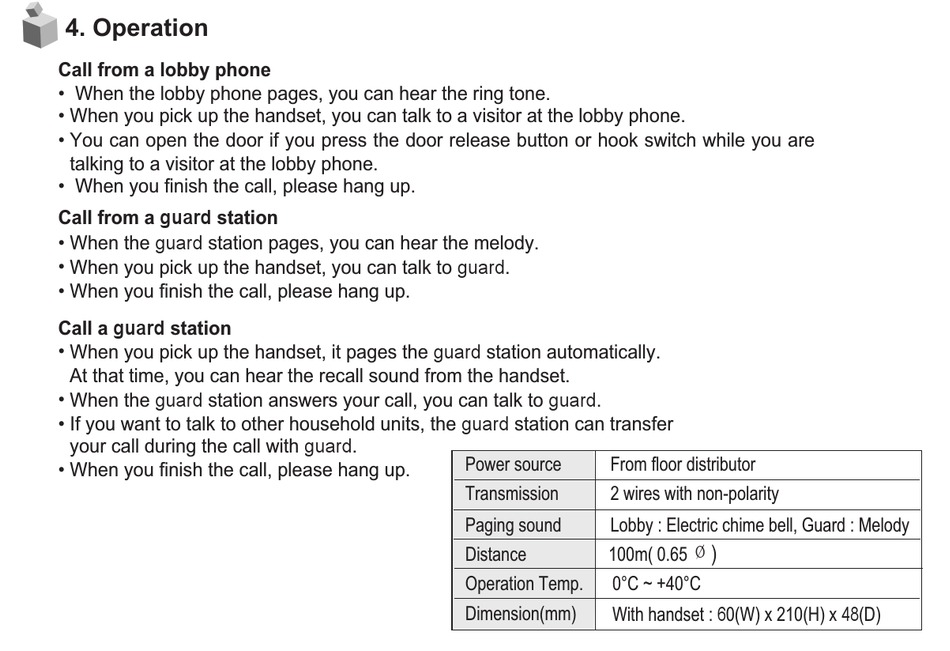

4. Operation
Call from a lobby phone
• When the lobby phone pages, you can hear the ring tone.
• When you pick up the handset, you can talk to a visitor at the lobby phone.
• You can open the door if you press the door release button or hook switch while you are
talking to a visitor at the lobby phone.
• When you finish the call, please hang up.
Call from a guard station
• When the guard station pages, you can hear the melody.
• When you pick up the handset, you can talk to guard.
• When you finish the call, please hang up.
Call a guard station
• When you pick up the handset, it pages the guard station automatically.
At that time, you can hear the recall sound from the handset.
• When the guard station answers your call, you can talk to guard.
• If you want to talk to other household units, the guard station can transfer
your call during the call with guard.
• When you finish the call, please hang up.
Power source From floor distributor
Transmission 2 wires with non-polarity
Paging sound Lobby : Electric chime bell, Guard : Melody
Distance 100m( 0.65
Operation Temp. 0°C ~ +40°C
Dimension(mm)
With handset : 60(W) x 210(H) x 48(D)
Ø)
