Commax DP-SS User Manual

User Manual

APARTMENT HOUSE INTERCOM (ROOMSTATION)

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

www.safemag.ru

DP-SS

Table of Contents

Do you have a question about the DP-SS and is the answer not in the manual?

Page 1: User Manual
User Manual DP-SS APARTMENT HOUSE INTERCOM (ROOMSTATION) • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2: Controls And Functions

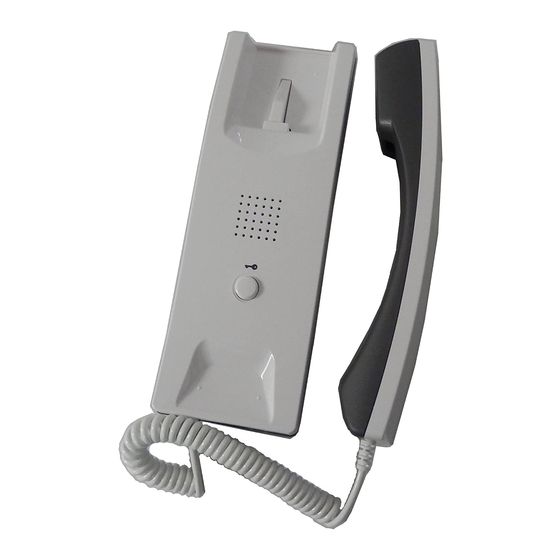

www.safemag.ru 1. CONTROLS AND FUNCTIONS ① HANDSET ② HOOK S/W ③ DOOR RELEASE BUTTON ④ SPRING CORD www.safemag.ru...
Page 3: Operation Instruction
www.safemag.ru 2. OPERATION INSTRUCTION 1. Hear a call sound from receiver ① When visitor press the call button on the doorstation 2. Converse with visitor after raise up handset 3. After ascertain the visitor, press the door release button ③ to open door NOTE : No need to connect extra power by reason of it’s supplied power source from doorstation www.safemag.ru...
Page 4: Wiring Diagram
www.safemag.ru 3. WIRING DIAGRAM www.safemag.ru...
Page 5: Installation
www.safemag.ru 4. INSTALLATION 1) Please attach a bracket on the wal correctly with screw. 2) After the attachment of bracket, please Adjust the groove of the product with a Bracket and then pull it down. www.safemag.ru...
