5 Manufacturing
This chapter describes the mechanical dimensions of SIM900B.
5.1
Mechanical Dimensions of SIM900B

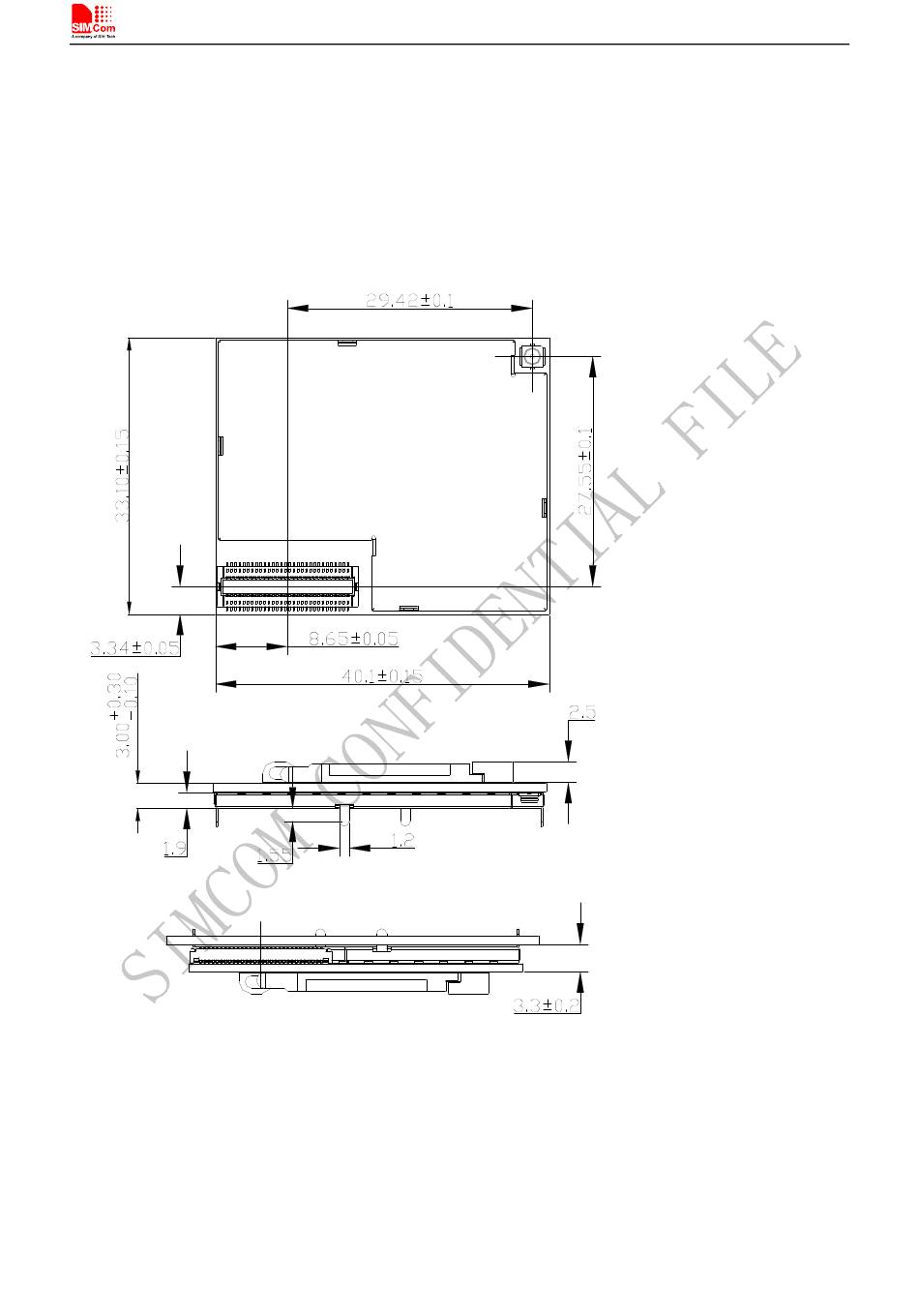

Following figure shows the Mechanical dimensions of SIM900B (top view, side view and bottom view).
Figure 32: Top an Side Mechanical dimensions of module （Unit: mm）
40
SIM900B_Hardware Design_V2.01
2012-05-07
