6 Manufacturing

6.1

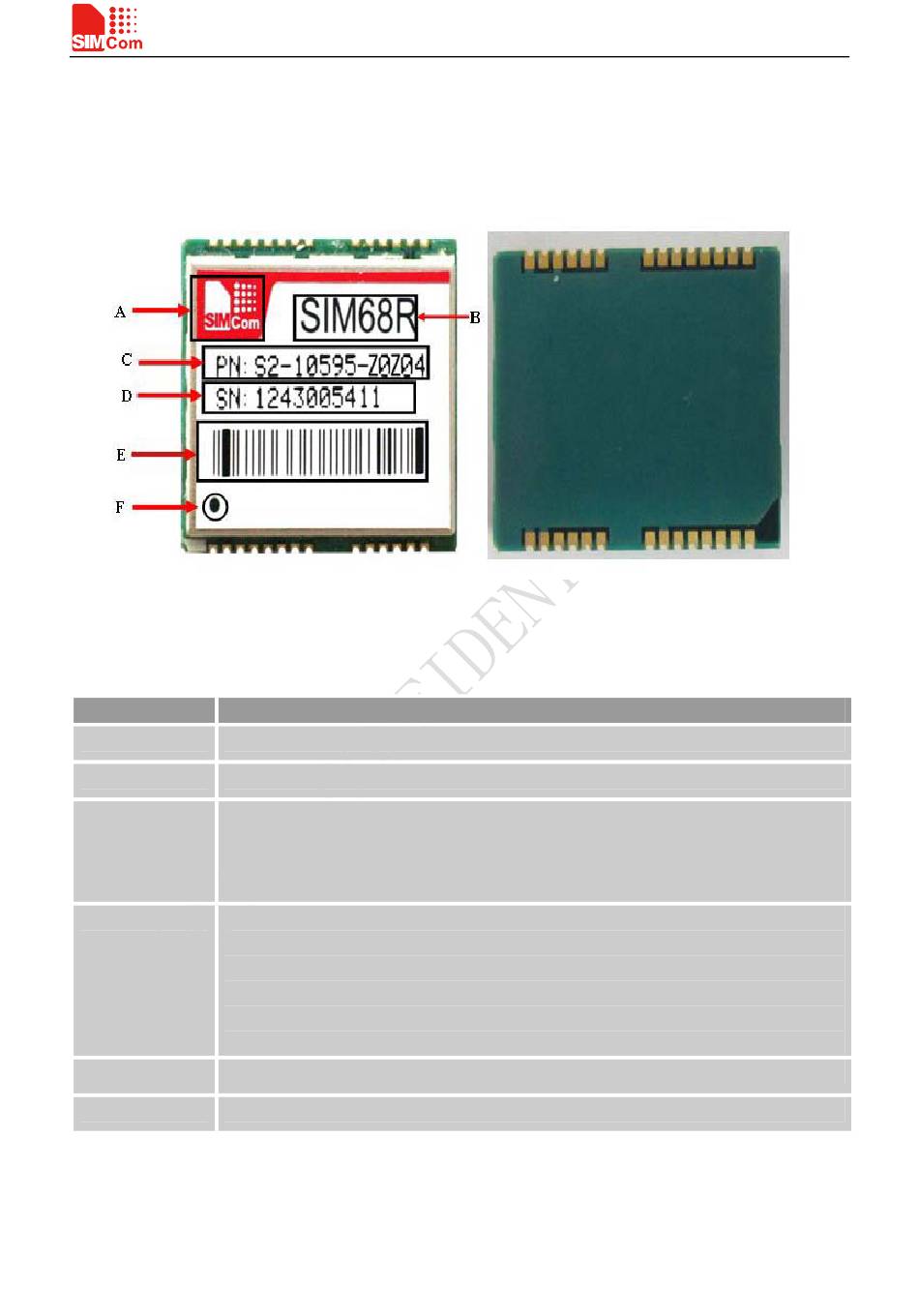

Top and Bottom View of SIM68R

Table 11: Illustration of module information
Item Description
A LOGO
B Module name
C Module part number
Hardware number and software number included;
ex.S2-10595 is hardware number
D Module serial number
The first number stands for factory code;
The second number stands for year code;
The third to eighth numbers is the SN number in hexadecimal numeric;
The last two numbers stands for MNEA sentence baud rate, "11" stands for 115200, "96"
stands for 9600;
E Module bar code
F PIN 1 Mark
6.2

Assembly and Soldering

The SIM68R module is intended for SMT assembly and soldering in a Pb-free reflow process on the top side of
the PCB. Suggested solder paste stencil height is 150um minimum to ensure sufficient solder volume. If required
SIM68R_Hardware Design_V1.02
Figure 13: Top and bottom view of SIM68R
Z0Z04 is software number
32
