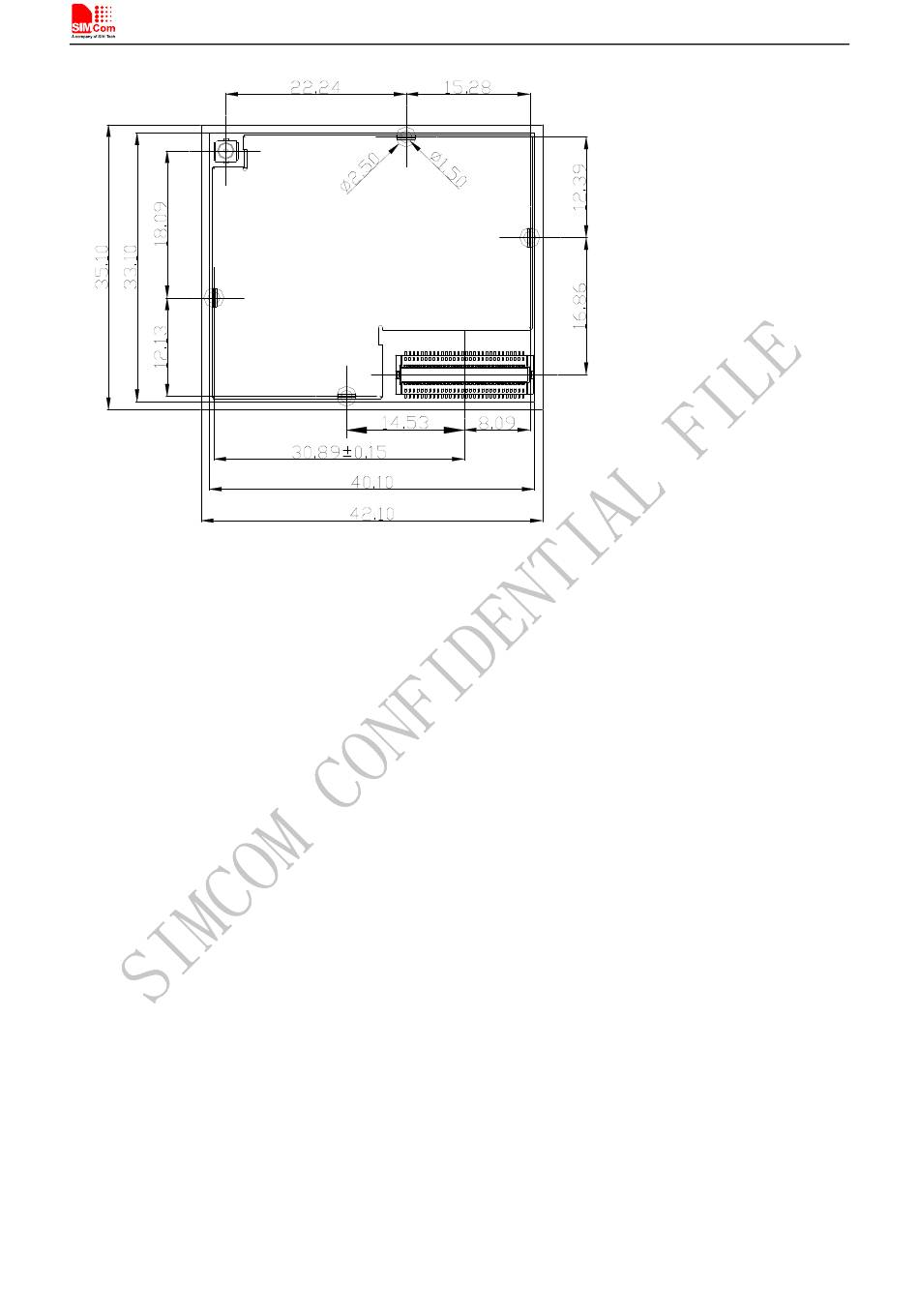

Figure 33: Recommended PCB footprint outline（Unit: mm）
5.2
Mounting SIM900B onto the application platform
Use the connector BB530-06001-20R to fix the SIM900B onto the customer platform.
5.3
Board-to-board connector
SIMCom recommends to use RUNFENG Company's BB530-06001-20R as the board-to-board connector. This
high density SMT connector is designed for parallel PCB-to-PCB applications. It is ideal to use in VCRs,
notebook PCs, cordless telephones, mobile phones, audio/visual and other telecommunications equipment where
reduced size and weight are important. Following is the parameter of BB530-06001-20R. User can contact
SIMCom for more information.
