Table 9: Pin description (Molex SIM card holder)
Pin name Signal
C1 SIM_VDD
C2 SIM_RST
C3 SIM_CLK
C4 GND
C5 GND
C6 VPP
C7 SIM_DATA
C8 SIM_PRESENCE
3.9

LCD Display/SPI Interface

SIM900B provides a serial LCD display interface. It could also be used as SPI interface in the embedded AT
application. For details about embedded AT application, please refer to document [6].
Note: This function is not supported in the standard firmware. If user wants this function, the firmware must be customized.
Please contact SIMCom for more details.
SIM900B_Hardware Design_V2.01

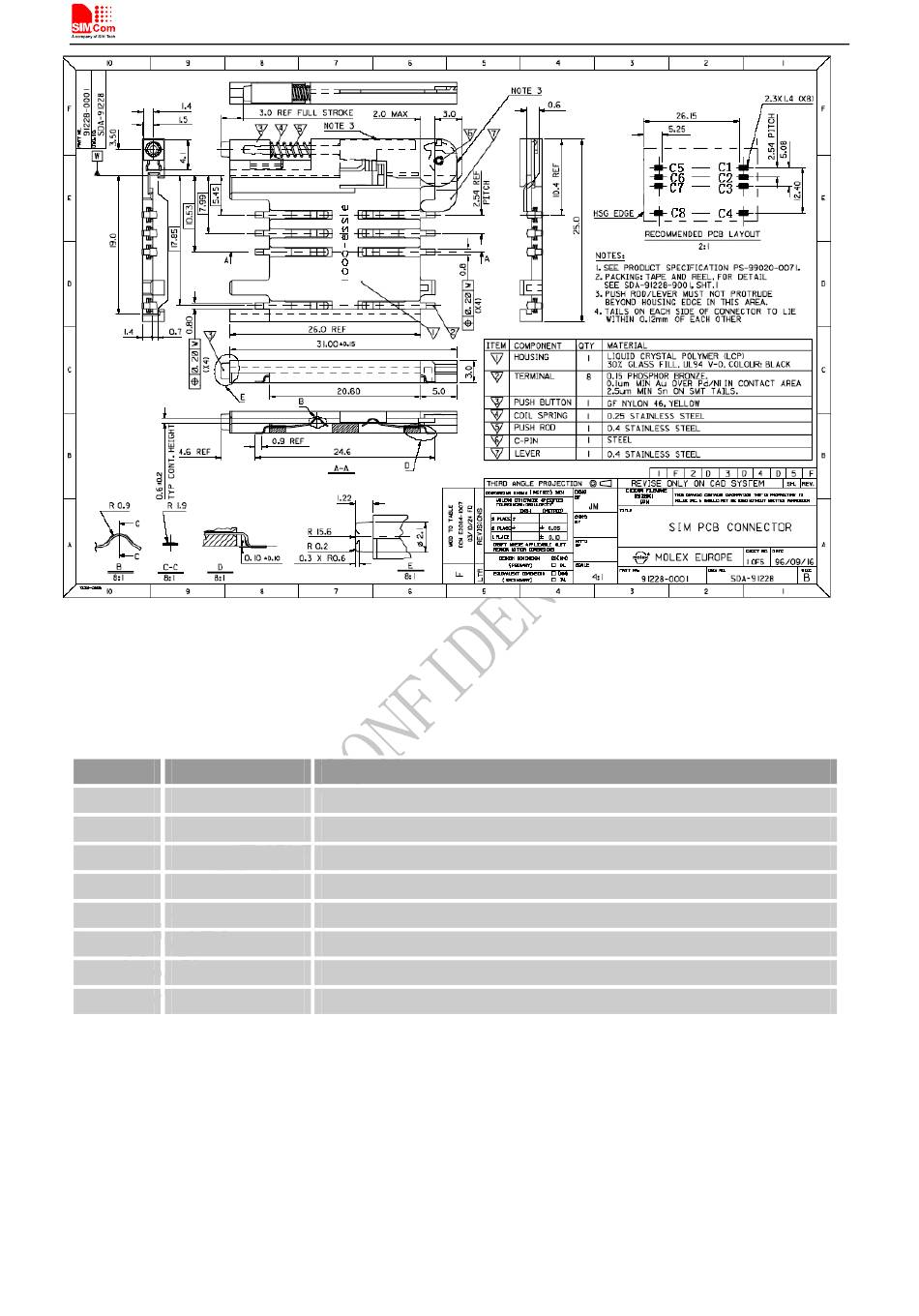

Figure 25: Molex 91228 SIM card holder
Description
SIM card power supply
SIM card reset
SIM card clock
Connect to GND
Connect to GND
Not connect
SIM card data I/O
Detect SIM card presence
29
Smart Machine Smart Decision
2012-05-07
