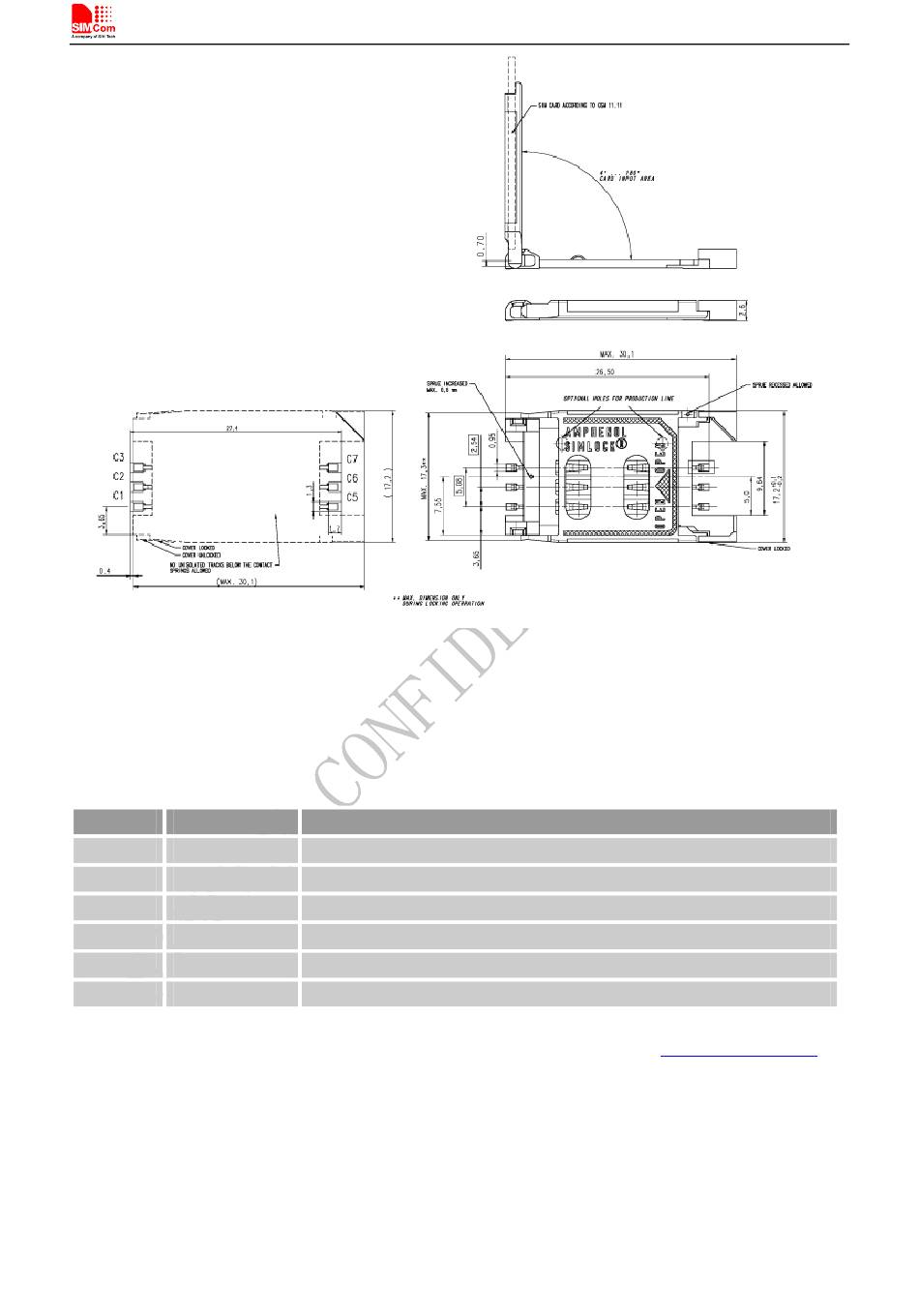

Figure 24: Amphenol C707 10M006 5122 SIM card holder
Table 8: Pin description (Amphenol SIM card holder)
Pin name
Signal
C1
SIM_VDD
C2
SIM_RST
C3
SIM_CLK
C5
GND
C6
VPP
C7
SIM_DATA
For 8 pins SIM card holder, SIMCom recommends to use Molex 91228. User can visit
more information about the holder.
SIM900B_Hardware Design_V2.01
Description
SIM card power supply
SIM card reset
SIM card clock
Connect to GND
Not connect
SIM card data I/O
28
Smart Machine Smart Decision
http://www.molex.com
for
2012-05-07
