6 Manufacturing
6.1
Top and Bottom View of SIM900D
These test points are only used for module manufacturing and testing. They are not for customer using.
6.2
Typical Solder Reflow Profile
For details about secondary SMT, please refer to document [9].
SIM900D_Hardware Design_V2.02

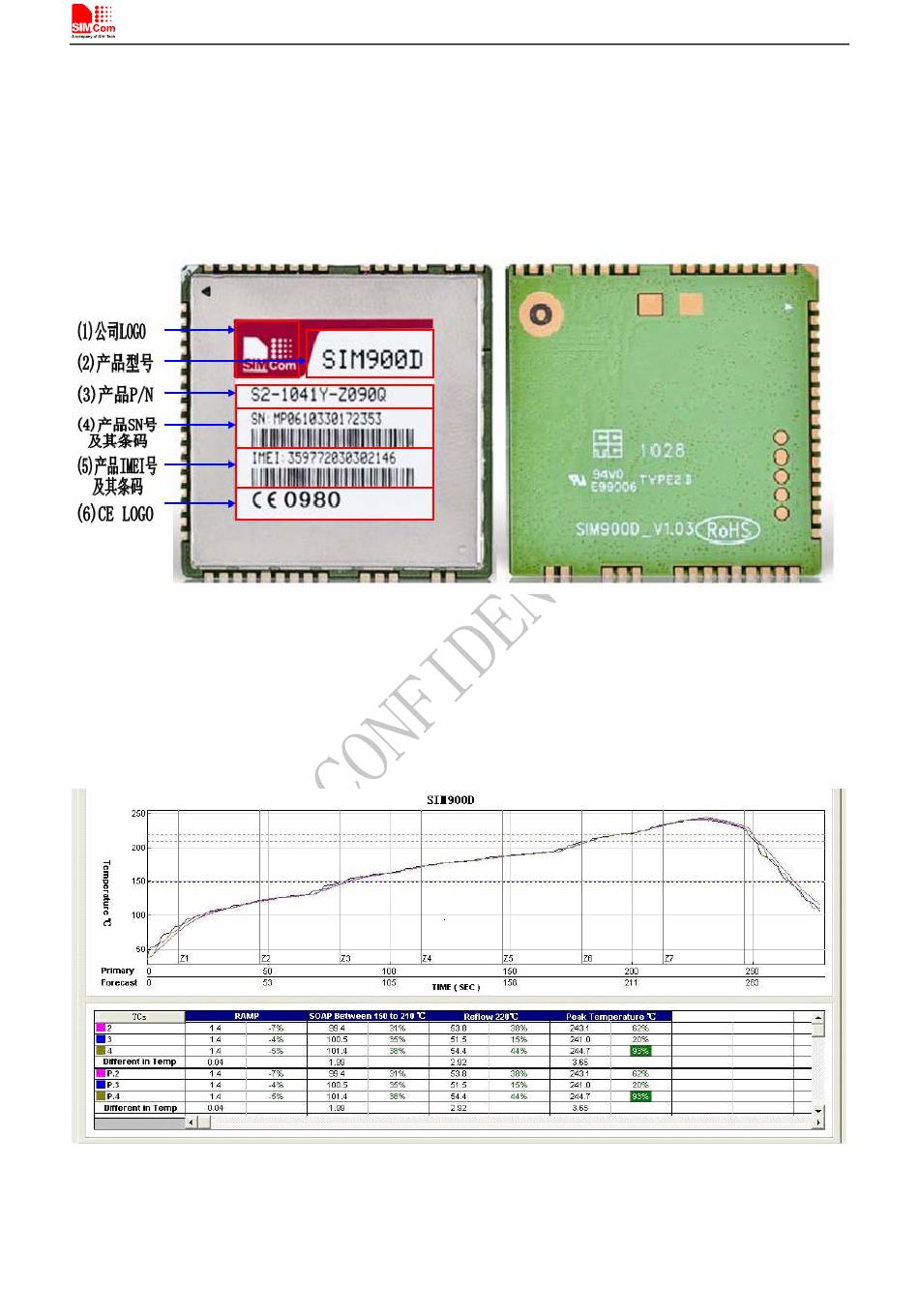

Figure 38: Top and bottom view of SIM900D
Figure 39: Typical Solder Reflow Profile
47
Smart Machine Smart Decision
2012-05-07
