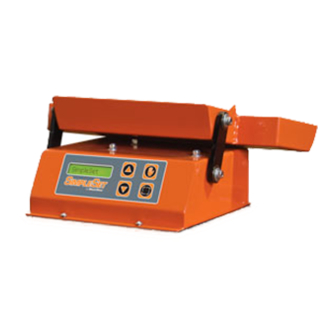

Simple Set
Safety, Operation, Maintenance
& Parts Manual
SSW, SSW-R
rev. A.00 - A.03
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
February 2010
Form #1611

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simple Set SSW and is the answer not in the manual?

Questions and answers

Related Manuals for Wood-mizer Simple Set SSW

Summary of Contents for Wood-mizer Simple Set SSW

  • Page 1 Simple Set Safety, Operation, Maintenance & Parts Manual SSW, SSW-R rev. A.00 - A.03 Safety is our #1 concern! Read and understand all safety information and instructions before oper- ating, setting up or maintaining this machine. February 2010 Form #1611...

  • Page 2: Table Of Contents

    Table of Contents Section-Page SECTION 1 SETUP & OPERATION Initial Setup ....................1-1 Operation ....................1-2 Troubleshooting..................1-3 Error Messages ..............1-3 Diagnostic Lights ..............1-4 Simple Set Up/Down Gear Settings Adjustment ....1-5 Simple Set PID Settings............1-6 SECTION 2 REPLACEMENT PARTS Simple Set Kit, Complete (Standard) .............2-1 Simple Set Kit, Complete (Standard Remote)........2-3 Sensor Assembly ..................2-4 Simple Set Control (Standard)..............2-5...

  • Page 3: Setup & Operation

    Setup & Operation Initial Setup SECTION 1 SETUP & OPERATION Initial Setup See Figure 1-1. Turn the sawmill control key switch to the ON (#1) position. Simple Set will start up in manual mode. As the control powers up, the software revision is displayed. This information can be helpful should you require service.

  • Page 4: Operation

    Setup & Operation Operation Language: To date, the only available language is English. Press the Auto button to scroll back to the Set Speed menu or the Manual but- ton to exit. Operation Manual: With Simple Set in manual mode, operate the sawmill up/down system as nor- mal with the sawmll control drum switch.

  • Page 5: Troubleshooting

    Setup & Operation Troubleshooting Troubleshooting 1.3.1 Error Messages See Table 1-1. A description of Simple Set error messages is provided below. Error Description E02 Sensor This message is displayed if Simple Set cannot detect the encoder sensor magnet when entering auto mode. Check that the gear box extension is aligned with the sensor.

  • Page 6: Diagnostic Lights

    Setup & Operation Troubleshooting 1.3.2 Diagnostic Lights See Figure 1-2. LED indicator lights are provided on the encoder sensor housing and the display circuit board and H-bridge module inside the Simple Set control box. Observing the LED lights during operation can help identify problems with the sensor, drum switches or Simple Set control.

  • Page 7: Simple Set Up/Down Gear Settings Adjustment

    Setup & Operation Troubleshooting 1.3.3 Simple Set Up/Down Gear Settings Adjustment 1. Make sure the power to the control box is on. 2. Press the UP arrow and Manual buttons simultaneously on the Simple Set control panel to display the Speed setting. See Figure 1-3.

  • Page 8: Simple Set Pid Settings

    Setup & Operation Troubleshooting 1.3.4 Simple Set PID Settings 1. Make sure the power to the control box is on. 2. Press the UP arrow and Manual buttons simultaneously on the Simple Set control panel to display the Speed setting. See Figure 1-5.

  • Page 9: Replacement Parts

    Replacement Parts Simple Set Kit, Complete (Standard) SECTION 2 REPLACEMENT PARTS Simple Set Kit, Complete (Standard) 3H1040D DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. KIT, FACTORY-INSTALLED SIMPLE SET (STANDARD) KIT, FIELD-INSTALLED SIMPLE SET (STANDARD) SSW-R Simple Set Control (See Section 2.4) Screw, 1/4-20 x 1/2”...
  • Page 10 Replacement Parts Simple Set Kit, Complete (Standard) Washer, 3/8” SAE Flat F05011-3 SSW-R Field Installed Kit Only (Includes parts above plus): Bolt, 1/4-20 x 1/2” Hex Head F05005-15 Washer, 1/4” Split Lock F05011-14 Washer, 1/4” SAE Flat F05011-11 Nut, 1/4-20 Hex Nylon Lock F05010-69 Sheave, Modified AK64 x 5/8”...

  • Page 11: Simple Set Kit, Complete (Standard Remote)

    Replacement Parts Simple Set Kit, Complete (Standard Remote) Simple Set Kit, Complete (Standard Remote) HD0236 DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. SIMPLE SET OPERATOR CONTROL (See Section 2.5) SIMPLE SET REMOTE POWER BOX (See Section 2.6) INSTALLATION KIT, REMOTE SIMPLE SET SSW-R-1...

  • Page 12: Sensor Assembly

    Replacement Parts Sensor Assembly Sensor Assembly 3H1040-2D DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. SENSOR ASSEMBLY, SIMPLE SET 053369 Extension, Simple Set Gearbox Shaft 057852 Bracket, Simple Set Sensor Mount 057872 Washer, 5/16” SAE Flat F05011-17 Washer, 5/16”...

  • Page 13: Simple Set Control (Standard)

    Failure to do so may result in injury. Failure to do so may Wood-Mizer Products, Inc. result in serious injury. 800-525-8100 Reorder #S11753 Wood-Mizer Products, Inc. 800-525-8100 Reorder #015400 Wood-Mizer Phone #’s...
  • Page 14 Replacement Parts Simple Set Control (Standard) Bushing, 5/16” ID x 3/8” OD x 1/4” Bronze 016655 Plate, Simple Set Control Cover Link 006872 Washer, 5/16” Belleville F05011-93 Washer, 5/16” SAE Flat F05011-17 Washer, 1/4” SAE Flat F05011-11 Bolt, 5/16” x 1/2” Shoulder 1/4-20 Thread Stainless F05006-69 Nut, 1/4-20 Hex Half Nylon Lock F05010-156...

  • Page 15: Simple Set Control (Standard Remote Operator)

    Failure to do so may result in injury. Failure to do so may result in serious injury. Wood-Mizer Products, Inc. 800-525-8100 Reorder #S11753 Wood-Mizer Products, Inc. 800-525-8100 Reorder #015400 Wood-Mizer Phone #’s...
  • Page 16 Replacement Parts Simple Set Control (Standard Remote Operator) Bushing, 5/16” ID x 3/8” OD x 1/4” Bronze 016655 Plate, Accuset Control Cover Link 016704 Washer, 5/16” Belleville F05011-93 Washer, 5/16” SAE Flat F05011-17 Washer, 1/4” SAE Flat F05011-11 Bolt, 5/16” x 1/2” Shoulder 1/4-20 Thread Stainless F05006-69 Nut, 1/4-20 Hex Half Nylon Lock F05010-156...

  • Page 17: Simple Set Control (Standard Remote Power Box)

    Replacement Parts Simple Set Control (Standard Remote Power Box) Simple Set Control (Standard Remote Power Box) HD0236-2 DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. H-BRIDGE ASSEMBLY, REMOTE SIMPLESET 053681 H-Bridge Assembly, SimpleSet 053373 Plate, Remote SimpleSet Front 053633 Standoff, .100”...

  • Page 18: Electrical Information

    Electrical Information Wiring Diagram (Standard) SECTION 3 ELECTRICAL INFORMATION NOTE: SimpleSet wiring for remote sawmills is provided in the sawmill wiring diagrams. Wiring Diagram (Standard) Controller Module Driver Module Encoder Up/Down Motor Up/Down Switch Red wire from SSW moved from Drum Switch #2 to Circuit Breaker Rev.
  • Page 19 INDEX electrical information wiring diagram (standard) operation initial start-up operation troubleshooting diagnostic lights error messages replacement parts complete kit (remote) complete kit (standard) control (remote operator) 2-7, 2-9 control (standard) sensor assembly Index SS09doc042913...
