Metra Electronics 95-9607B Installation Instructions

Porsche 911 (991) 2012-2016, boxster (981) 2013-2016, caymen(981) 2014-2016

Download this manual

KIT COMPONENTS

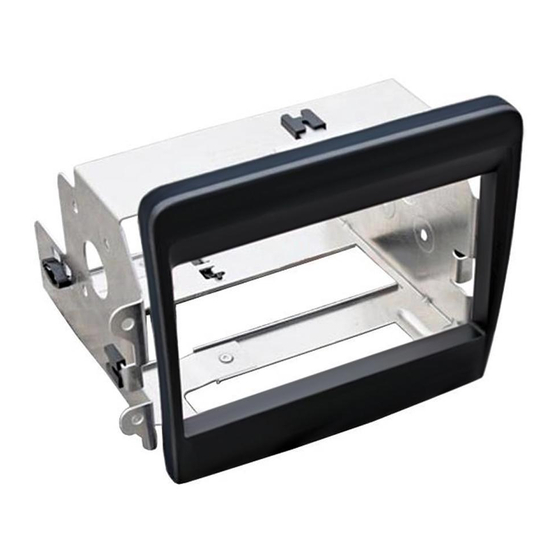

• A) Radio housing with brackets and trim

Metra. The World's Best Kits.

Porsche

911 (991) 2012-2016

Boxster (981) 2013-2016

Caymen (981) 2014-2016

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

MetraOnline.com

95-9607B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly . .................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: TBA

Antenna Adapter: 40-EU10 (w/NAV)

40-EU56 (w/o NAV)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Torx screwdriver

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 3/27/18 INST95-9607B

Need help?

Do you have a question about the 95-9607B and is the answer not in the manual?

Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 3/27/18 INST95-9607B...
Page 2 DASH DISASSEMBLY 1. Unclip the center console side panels starting from the rear, then pull back to release the front of the panels. (Figure A) 2. Remove (4) Torx screws securing the Please visit Metraonline.com for radio, then unplug and remove the Dash Disassembly illustrations. radio. (Figure B) Continue to Kit Assembly 1.800.221.0932 MetraOnline.com...
Page 3 KIT ASSEMBLY 1. Slide the radio into the 95-9607B assembly from the back, and then secure the radio using the screws provided with the radio. (Figure A) 2. Locate the factory wiring harness and antenna connection in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation. 3. Secure the completed assembly to the dash using the factory screws. 4. Reassemble the dash in reverse order of disassembly to complete the installation. (Figure A) REV. 3/27/2018 INST95-9607B...
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 3/27/18 INST95-9607B...
