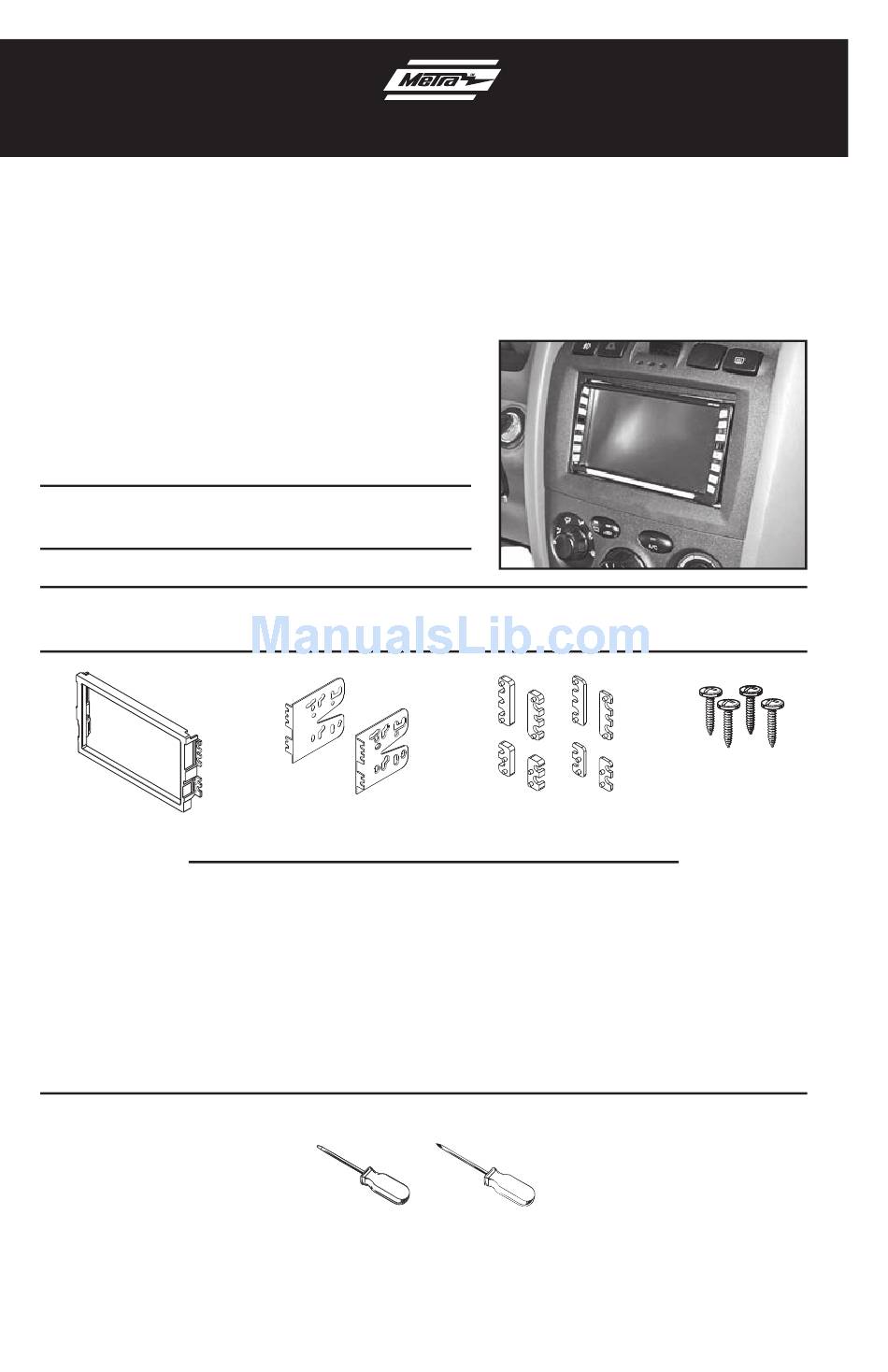

INSTALLATION INSTRUCTIONS FOR PART 95-7309
KIT FEATURES
• Double DIN head unit provision
• Stacked ISO DIN head unit provision
KIT COMPONENTS
• A) Double DIN trim plate • B) Double DIN brackets • C) Spacers, thick and thin
• D) (4) #10 x 3/4" Phillips screws
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-7300 - Hyundai harness 1990-2001
• 70-7301 - Hyundai Kia harness 1999-2008
• 70-2003 - GM harness 1998-2008
Antenna Adapter:
• 40-GM 10 - GM antenna adapter
APPLICATIONS
Hyundai 1995-2006
95-7309
B
TOOLS REQUIRED
• Flat blade screwdriver • Phillips screwdriver
C
thick
thin
D

Advertisement

loading
Need help?

Need help?

Do you have a question about the 95-7309 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 95-7309

Summary of Contents for Metra Electronics 95-7309

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7309 APPLICATIONS Hyundai 1995-2006 95-7309 KIT FEATURES • Double DIN head unit provision • Stacked ISO DIN head unit provision KIT COMPONENTS • A) Double DIN trim plate • B) Double DIN brackets • C) Spacers, thick and thin •...
  • Page 2 Dash Disassembly 95-7309 Hyundai Elantra 1996-2000 1. Unclip and remove the dimmer switch panel then remove (1) Phillips screw exposed behind. (Figure A) 2. Unclip and remove shifter trim panel. (Figure B) 3. Remove (1) Phillips screw at bottom of radio trim panel.
  • Page 3 Dash Disassembly 95-7309 Hyundai Tiburon 1997-2001 1. Unclip and remove the panel surrounding the shift lever. (Figure A) 2. Unclip and remove the radio trim panel. (Figure B) 3. Remove (2) Phillips screws securing the radio. Continue to kit assembly...
  • Page 4 Dash Disassembly 95-7309 Hyundai Sonata 1995-1998 1. Unclip and remove trim panel around the shifter. (Figure A) 2. Remove (1) Phillips screw at bottom of radio trim panel. 3. Unclip and remove radio trim panel. (Figure B) 4. Remove (4) Phillips screws securing the radio.
  • Page 5 Dash Disassembly 95-7309 Hyundai Sonata 1999-2001 1. Unclip and remove the trim panel in front of the shift lever and remove (2) Phillips screws exposed underneath. (Figure A) 2. Unclip and remove the shift lever trim panel. (Figure A) 3. Remove (2) Phillips screws at bottom of radio trim panel.
  • Page 6 Dash Disassembly 95-7309 Hyundai Santa Fe 2001-2006 1. Remove the ashtray and the (2) Phillips screws exposed in the cavity. (Figure A) 2. Unclip and remove trim panel with climate controls. (Figure B) 3. Remove (2) Phillips screws facing up at bottom of radio trim panel.

  • Page 7: Double Din Head Unit Provision

    Kit Assembly 95-7309 Double DIN head unit provision 1. Slide the appropriate bracket into the trim plate aligning the holes in the trim plate to the clips on the bracket. (Figure A) 2. Slide the DDIN radio unit into the trim...
  • Page 8 Kit Assembly 95-7309 Stacked ISO DIN head unit provision 1. Slide the appropriate bracket into the trim plate aligning the holes in the trim plate to the clips on the bracket. (Figure A) 2. Slide the stacked ISO DIN units into the...

  • Page 9: Herramientas Requeridas

    INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-7309 APLICACIONES Hyundai 1995-2006 95-7309 CARACTERÍSTICAS DEL KIT • Provisión de unidad central doble DIN • Provisión de unidad central ISO DIN vertical COMPONENTES DEL KIT • A) Placa de moldura DDIN • B) Soportes DDIN • C) Espaciadores, grueso y delgado •...
  • Page 10 Desmontaje del tablero 95-7309 Hyundai Elantra 1996-2000 1. Desenganche y quite el panel del interruptor atenuador y quite (1) tornillo Phillips que queda a la vista. (Figura A) 2. Suelte y retire el panel de moldura de la palanca de velocidades. (Figura B) 3.
  • Page 11 Desmontaje del tablero 95-7309 Hyundai Tiburon 1997-2001 1. Desenganche y quite el panel que rodea la palanca de velocidades. (Figura A) 2. Desenganche y quite el panel de la moldura del radio. (Figura B) 3. Retire los (2) tornillos Phillips que sostienen el radio.
  • Page 12 Desmontaje del tablero 95-7309 Hyundai Sonata 1995-1998 1. Desenganche y quite el panel de la moldura alrededor de la palanca de velocidades. (Figura A) 2. Quite (1) tornillo Phillips de la parte de abajo del panel de la moldura del radio.
  • Page 13 Desmontaje del tablero 95-7309 Hyundai Sonata 1999-2001 1. Desenganche y quite el panel de la moldura del frente de la palanca de velocidades y quite los (2) tornillos Phillips que quedan a la vista abajo. (Figura A) 2. Desenganche y quite el panel de la moldura de la palanca de velocidades.
  • Page 14 Desmontaje del tablero 95-7309 Hyundai Santa Fe 2001-2006 1. Quite el cenicero y los (2) tornillos Phillips que quedan a la vista en la cavidad. (Figura A) 2. Desenganche y quite el panel de moldura junto con los controles del clima.
  • Page 15 Ensamble del kit 95-7309 Provisión de unidad central doble DIN 1. Deslice el soporte correspondiente en la placa de la moldura, alineando los orificios de la placa con los ganchos del soporte. (Figura A) 2. Deslice la unidad del radio DDIN en el...
  • Page 16 Ensamble del kit 95-7309 Provisión de unidad central ISO DIN vertical 1. Deslice el soporte correspondiente en la placa de la moldura, alineando los orificios de la placa con los ganchos del soporte. (Figura A) 2. Deslice las unidades ISO DIN verticales...
