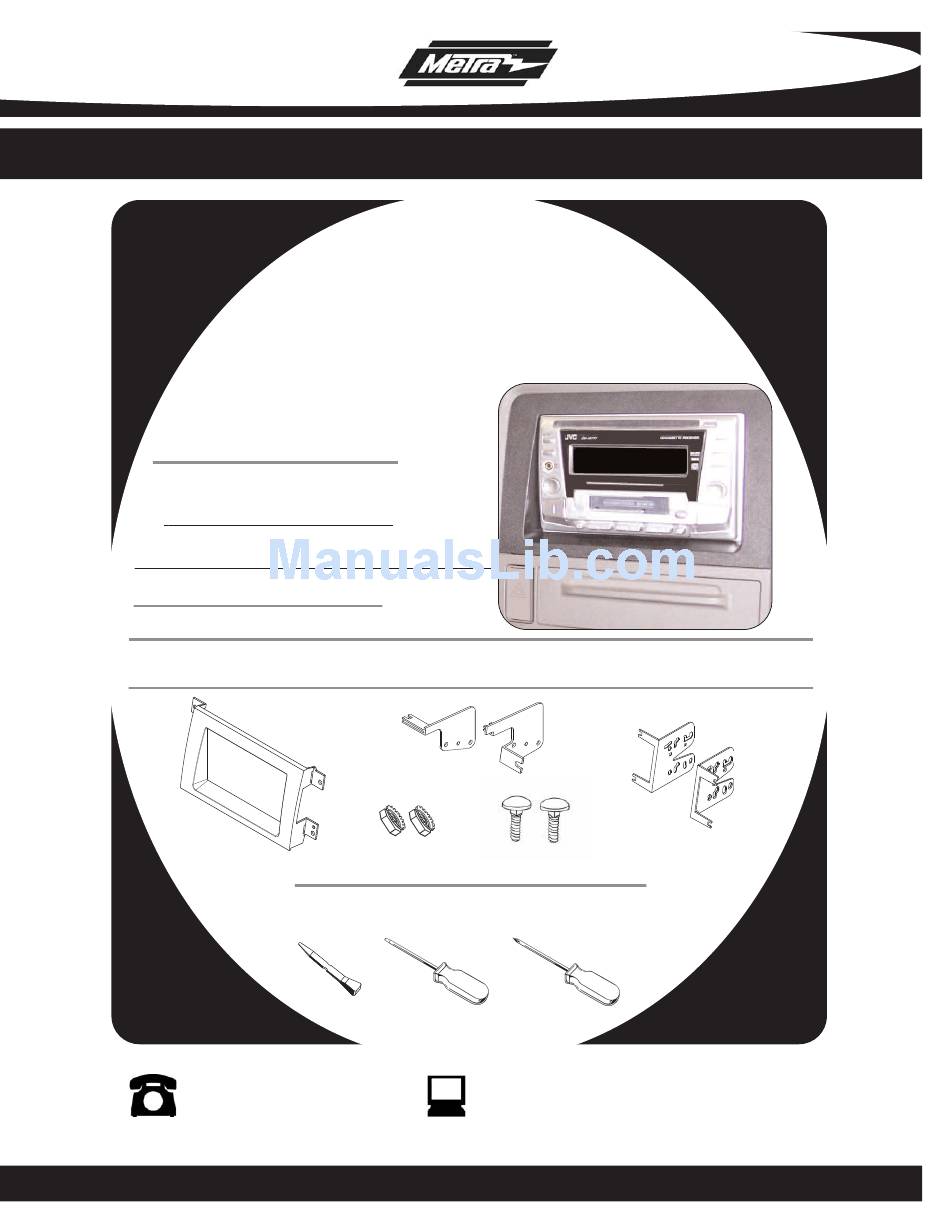

INSTALLATION INSTRUCTIONS FOR PART 95-7870
95-7870G/
95-7870T
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO DIN Radio Provision
• Painted To Match Factory Dash:
G = GRAY, T= TAN
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
• 70-1729 - Honda harness 2009-up or 70-1721 1998-2008
• 40-HD10 - Honda Antenna Adapter 2005-up

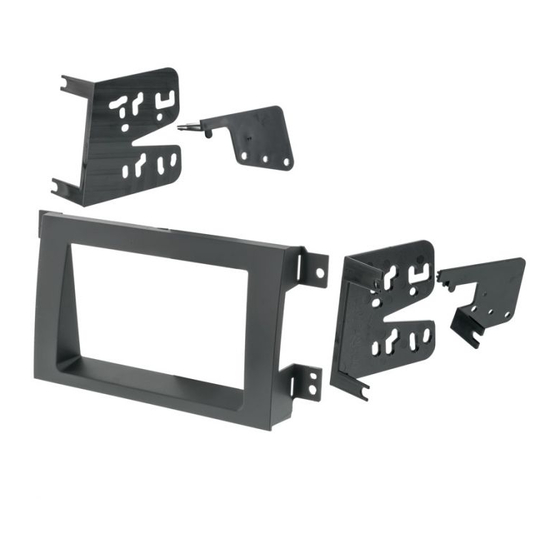

KIT COMPONENTS
• A) Double DIN Radio Housing • B) Double Din Radio Housing Brackets (to hold factory pocket below radio)
• C) Double DIN Brackets • D) Kep Nuts • E) Carriage Bolts
A
Panel Removal Tool or
Small Flat Blade Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
Honda Ridgeline
2005-2009
B
D
E
TOOLS REQUIRED:
Phillips Screwdriver
www.metraonline.com
C
Advertisement
Related Manuals for Metra Electronics 95-7870G
Summary of Contents for Metra Electronics 95-7870G
- Page 1 • A) Double DIN Radio Housing • B) Double Din Radio Housing Brackets (to hold factory pocket below radio) • C) Double DIN Brackets • D) Kep Nuts • E) Carriage Bolts TOOLS REQUIRED: Panel Removal Tool or Phillips Screwdriver Small Flat Blade Screwdriver 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION...
- Page 2 95-7870 T ABLE OF CONTENTS Dash Disassembly Honda Ridgeline - 2005-2009 ......1 Kit Assembly ........2, 3, 4 Final Assembly .
- Page 3 95-7870 DASH DISASSEMBL Y HONDA RIDGELINE 2005-2009 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove entire panel sur- rounding radio and a/c control all the way over to left side of steering wheel. (Figure A) Remove (5) Phillips screws securing the radio and pocket assembly.
- Page 4 95-7870 KIT ASSEMBL Y HONDA RIDGELINE 2005-2009 Attach the corresponding radio hous- DDIN Trimplate Housing ing bracket to the double DIN radio housing using the included carriage bolts and kep nuts. (Figure A) DDIN Brackets Position the factory pocket into the assembled double DIN radio housing Carriage Bolts/Kep Nuts assembly and secure with the factory...
- Page 5 95-7870 KIT ASSEMBL Y HONDA RIDGELINE 2005-2009 DOUBLE DIN HEAD UNIT PROVISION Slide the appropriate double DIN bracket into the trim plate aligning the holes in the trim plate to the clips on the bracket. (Figure A) Slide the double DIN radio unit into the housing bracket assembly and secure the unit to the kit using the screws supplied with the head unit.
- Page 6 95-7870 KIT ASSEMBL Y HONDA RIDGELINE 2005-2009 STACKED ISO DIN HEAD UNIT PROVISION Slide the appropriate double DIN bracket into the trim plate aligning the holes in the trim plate to the clips on the bracket. (Figure A) Slide the stacked ISO DIN units into the housing bracket assembly and secure the unit to the kit using the screws supplied with the head unit.
- Page 7 95-7870 KIT ASSEMBL Y FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) 2 Re-connect the negative battery terminal and test the unit for proper operation.
- Page 8 INST95-7870 INSTRUCTIONS 1-800-221-0932 www.metraonline.com Rev. 03-19-09 © COPYRIGHT 2004-2009 METRA ELECTRONICS INST95-7870...
