INSTALLATION INSTRUCTIONS FOR PART 95-7354B
Hyundai Santa Fe 2013-up

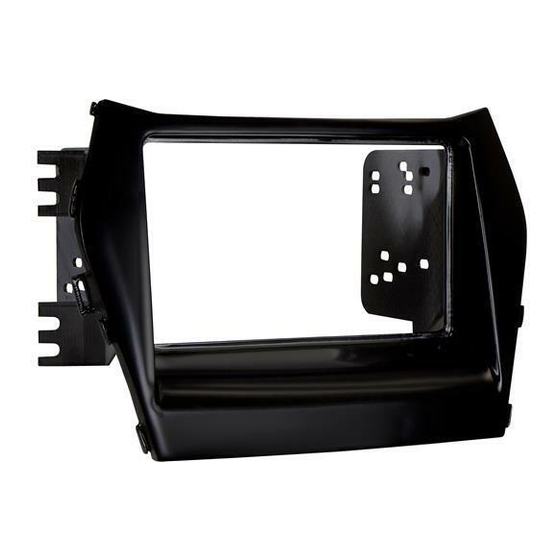

KIT FEATURES
• DDIN radio provision
• Painted Matte Black
KIT COMPONENTS
• A) Radio Panel • B) Radio Brackets • C) (4) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304 Kia/Hyundai harness 2010-up
Antenna Adapter: • Not Required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Small Flat Blade Screwdriver
METRA. The World's best kits.
APPLICATIONS
95-7354B
C
™
1-800-221-0932
Dash Disassembly
– Hyundai Santa Fe 2013-up ................................... 2
Kit Assembly
– DDIN radio provision ............................................ 3
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
Table of Contents
Advertisement
Table of Contents
Related Manuals for Metra Electronics 95-7354
Summary of Contents for Metra Electronics 95-7354
- Page 1 Antenna Adapter: • Not Required NOTE: Refer to the instructions included with the TOOLS REQUIRED aftermarket radio. • Panel removal tool • Phillips screwdriver • Small Flat Blade Screwdriver METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
-
Page 2: Dash Disassembly
95-7354B Dash Disassembly 1. Unclip and remove the A/C vents from the left and right side of the factory radio. (Figure A) 2. Remove (4) Phillips screws securing the radio. (Figure B) Continue to kit assembly (Figure A) (Figure B) -
Page 3: Kit Assembly
95-7354B Kit Assembly DDIN head unit provisions 1. Attach the radio brackets to the radio panel with the provided (4) #8 x 3/8” Phillips screws. (Figure A) 2. Mount the aftermarket radio to the radio brackets/radio panel assembly using the screws supplied with the radio. - Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
- Page 5 Arnés de cableado: • Arnés 70-7304 para Kia/Hyundai 2010 y más recientes Nota: Remítase a las instrucciones incluidas con el radio Adaptador de antena: • Adaptador de antena 40-KI11 para KIA/Hyundai 2010 y más recientes de posventa. METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
-
Page 6: Desmontaje Del Tablero
99-7354B Desmontaje del tablero 1. Desenganche y quite las rejillas del aire acondicionado del lado izquierdo y derecho del radio de fábrica. (Figura A) 2. Quite los (4) tornillos Phillips que sujetan el radio. (Figura B) Continuará la ensamble del kit (Figura A) (Figura B) -
Page 7: Ensamble Del Kit
99-7354B Ensamble del kit Provisiones de unidad central doble DIN: 1. Coloque los soportes del radio en el panel del radio con los (4) tornillos Phillips #8 x 3/8” suministrados. (Figura A) 2. Monte el radio de mercado secundario en el ensamble de los soportes de radio/ensamble del panel del radio con los tornillos que vienen con el radio. - Page 8 800-354-6782 para obtener más información y avance toward a better tomorrow. hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
