INSTALLATION INSTRUCTIONS FOR PART 95-7322
Hyundai Azera 2006-2011
KIT FEATURES
• Double DIN radio provision
• Stacked ISO unit provision
KIT COMPONENTS

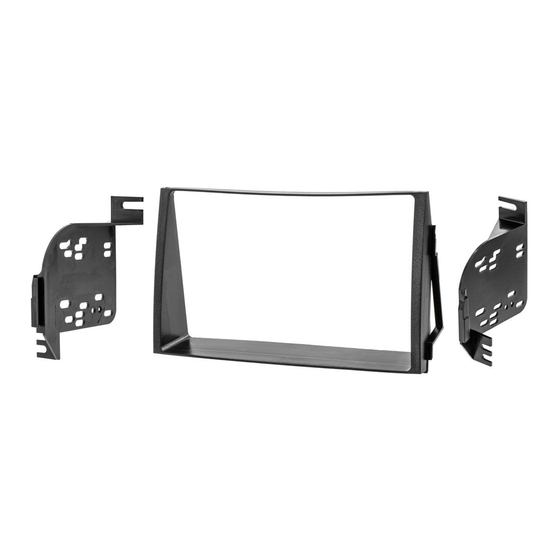

• A) Double DIN trim plate • B) Double DIN brackets
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1004 - Hyundai/Kia harness 2004-up
• 70-7303 - Hyundai/Kia harness 2009
Antenna Adapter:
• 40-KI10 - Kia antenna adapter 2007-up
• Panel removal tool • Phillips screwdriver • Small flat blade screwdriver
APPLICATIONS
95-7322
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
B
metraonline.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 95-7322
Summary of Contents for Metra Electronics 95-7322
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7322 APPLICATIONS Hyundai Azera 2006-2011 95-7322 KIT FEATURES • Double DIN radio provision • Stacked ISO unit provision KIT COMPONENTS • A) Double DIN trim plate • B) Double DIN brackets WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: •...
- Page 2 95-7322 Table of Contents Dash Disassembly – Hyundai Azera 2006-2011 ................... 3-4 Kit Assembly – Double DIN radio provision ....................5 – Stacked ISO unit provision ....................6 CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.
- Page 3 Dash Disassembly 95-7322 Hyundai Azera 2006-2011 1. Remove (1) Phillips head screw from bottom right hand corner then unclip and let the panel below the steering column hang. (Figure A) 2. Remove (1) Phillips screw from the lower left side of the radio panel behind panel removed in step 2.
- Page 4 Dash Disassembly 95-7322 Hyundai Azera 2006-2011 4. Remove (3) Phillips screws from the top of the radio trim panel. (Figure D) 5. Remove (2) Phillips screws from under radio trim panel. (Figure E) 6. Unclip and remove the entire trim panel surrounding the radio.
-
Page 5: Double Din Radio Provision
Kit Assembly 95-7322 Double DIN radio provision 1. Snap the Double DIN brackets to the outside edge of the Double DIN trim plate. (Figure A) 2. Slide the Double DIN radio into the bracket/trim plate assembly and secure the radio to the assembly using the screws supplied with the radio. - Page 6 Kit Assembly 95-7322 Stacked ISO unit provision 1. Snap the Double DIN brackets to the outside edge of the Double DIN trim plate. (Figure A) 2. Slide the stacked ISO units into the bracket/radio housing assembly and secure the units to the kit using the screws supplied with the units.
