Metra Electronics 95-3003G Installation Instructions Manual

Gm full-size trucks / suv’s 1995-2002

Hide thumbs

page of 8

/ 8
Bookmarks

Available languages

Quick Links

Download this manual

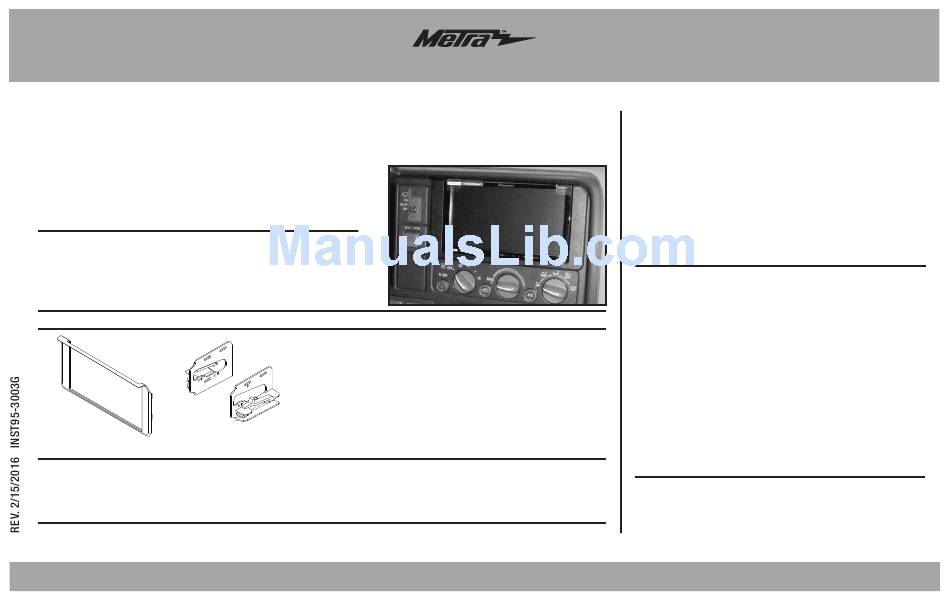

GM Full-Size Trucks / SUV

KIT FEATURES

• ISO DDIN radio provision

• Painted and textured to match the factory dash

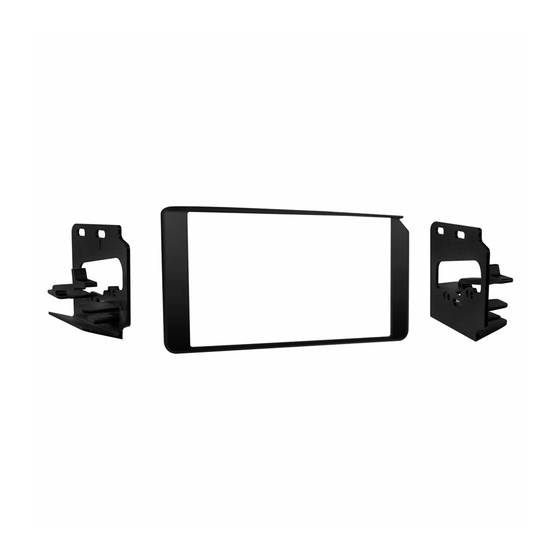

KIT COMPONENTS

• A) ISO DDIN trim panel • B) Radio brackets

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1858 • 70-1859 (amplified models)

Antenna Adapter: • 40-GM10

METRA. The World's best kits.

Installation instructions for part 95-3003G

s 1995-2002

95-3003G

APPLICATIONS

See application list inside cover

metraonline.com

™

Table of Contents

Dash Disassembly ..................................................2

Kit Preparation ........................................................3

Kit Assembly

– ISO DDIN radio provision ...................................... 3

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Rotary or similar suitable cutting tool

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

Need help?

Do you have a question about the 95-3003G and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 95-3003G

Page 1 Installation instructions for part 95-3003G ’ Table of Contents GM Full-Size Trucks / SUV s 1995-2002 95-3003G Dash Disassembly ..........2 Kit Preparation ............3 Kit Assembly – ISO DDIN radio provision ........3 KIT FEATURES • ISO DDIN radio provision TOOLS REQUIRED •...
Page 2 95-3003G Applications Dash Disassembly CADILLAC 1. With the key in the on position, Escalade 1999-2000 apply the parking brake, place the shifter into low gear, and then tilt CHEVROLET the steering wheel down as far as C/K Pickup 1995-2000 it will go.
Page 3: Kit Preparation
95-3003G Kit Preparation Kit Assembly 1. Snap the ISO DDIN trim plate onto ISO DDIN radio provision the dash panel and mark the inside 1. Attach the radio brackets to the area to be cut with a pencil. radio using the screws supplied (Figure A) with the radio.
Page 4 Installation instructions for part 95-3003G IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
Page 5 Instrucciones de instalación para la pieza 95-3003G ’ Indice GM Camiones de tamaño completo / SUV 1995-2002 Desmontaje del tablero ..........2 95-3003G Preparación del kit .............3 Ensamble del kit – Provisión de radio ISO DDIN ........3 CARACTERÍSTICAS DEL KIT • Provisión de radio ISO DDIN HERRAMIENTAS REQUERIDAS •...
Page 6 95-3003G Aplicaciones Desmontaje del tablero CADILLAC 1. Con la llave en la posición de Escalade 1999-2000 encendido, aplique el freno de mano, coloque la palanca de CHEVROLET cambios en marcha baja, y luego C/K Pickup 1995-2000 inclinar el volante hacia abajo tanto...
Page 7 95-3003G Preparación del kit Ensamble del kit 1. Coloque a presión la placa de la Provisión de radio ISO DDIN moldura ISO DDIN al panel de 1. Una los soportes del radio instrumentos y marcar la zona en la radio, con los tornillos interior para cortar con un lápiz.
Page 8 Instrucciones de instalación para la pieza 95-3003G IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente...
