Mazda 3 2004-2009
KIT FEATURES
• ISO DDIN radio provision
• Display replacement pocket

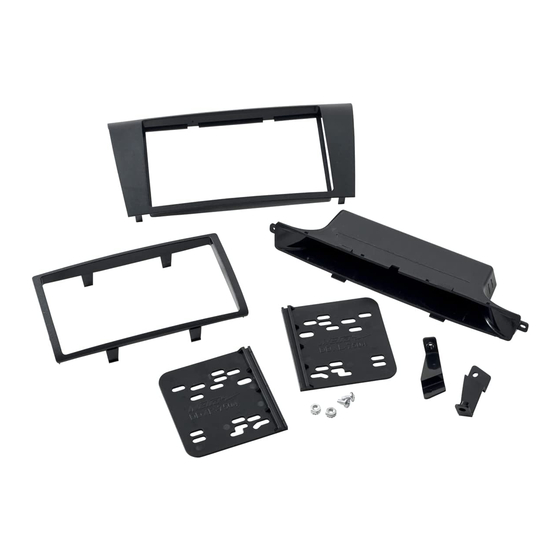

KIT COMPONENTS
• A) Radio housing • B) ISO DDIN brackets • C) ISO DDIN trim plate • D) Display replacement pocket
• E) Display retention brackets • F) (2) 3/8" #10 bolts • G) (2) #10 nuts • H) (2) Plastic panel clips
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7903
Antenna Adapter: • Not required
METRA. The World's best kits.

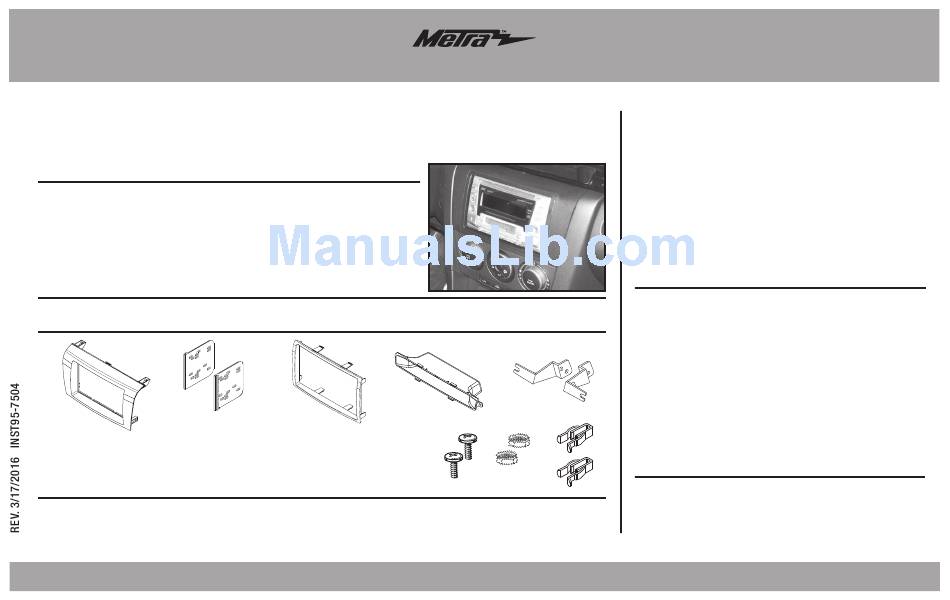

Installation instructions for part 95-7504
95-7504
C
D
F
metraonline.com
™
Dash Disassembly ..................................................2
Kit Preparation ........................................................2
Kit Assembly
– ISO DDIN radio provision ...................................... 3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
E
G
H
CAUTION!
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
Table of Contents
All accessories, switches, climate controls panels, and
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 95-7504
Summary of Contents for Metra Electronics 95-7504
- Page 1 Installation instructions for part 95-7504 Table of Contents Mazda 3 2004-2009 95-7504 Dash Disassembly ..........2 Kit Preparation ............2 KIT FEATURES Kit Assembly • ISO DDIN radio provision • Display replacement pocket – ISO DDIN radio provision ........3 TOOLS REQUIRED KIT COMPONENTS •...
-
Page 2: Kit Preparation
95-7504 Dash Disassembly Kit Preparation 1. Unclip and remove display trim Display Brackets/Pocket Assembly panel above radio. (Figure A) Automatic Climate Control Vehicles Note: Open glove box and start in (2006-2009) middle of panel working towards 1. Using the (2) 3/8” #10 bolts, and (2) -
Page 3: Kit Assembly
95-7504 Kit Assembly ISO DDIN radio provision 1. Snap the ISO DDIN brackets to the inside edge of the radio housing. (Figure A) 2. Slide the radio into the bracket/radio housing assembly, and secure using the screws supplied with the radio. - Page 4 Installation instructions for part 95-7504 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
- Page 5 Instrucciones de instalación para la pieza 95-7504 Indice Mazda 3 2004-2009 95-7504 Desmontaje tablero ..........2 Preparación del kit ..........2 CARACTERÍSTICAS DEL KIT Ensamble del kit • Provisión de radio ISO DDIN • Bolsillo de reemplazo de pantalla – Provisión de radio ISO DDIN ......... 3...
- Page 6 95-7504 Preparación del kit Desmontaje tablero 1. Desenganche y quite el panel de Soportes pantalla/Montaje de cavidad la pantalla por encima de la radio. Vehículos automáticos de control de clima (Figura A) (2006-2009) Nota: Abra la guantera y empezar 1. El uso de los (2) 3/8” X #10 pernos y...
- Page 7 95-7504 Ensamble del kit Provisión de radio ISO DDIN 1. Coloque a presión los soportes ISO DDIN en el borde interior de la carcasa del radio. (Figura A) 2. Deslice el radio en el soporte/ensamble de carcasa del radio y sujételo con los tornillos suministrados con el radio.
- Page 8 Instrucciones de instalación para la pieza 95-7504 IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente...
