Rover Configuration - Javad TRIUMPH-1 Configuration Example

6. Click Set Coordinates button to save base coordinates.
7. Click the Base Style tab to check the current receiver parameters, to be sure receiver is
configured correct. Check the following:
• Correction sources
• Correction port
• Correction type
• Elevation mask

Rover Configuration

1. Start Tracy in the Lite view.
2. Connect you TRIUMPH-1 and controller using Bluetooth wireless technology.
• If you have once connected the receiver with Victor, Tracy will find it automatically;
www.javad.com

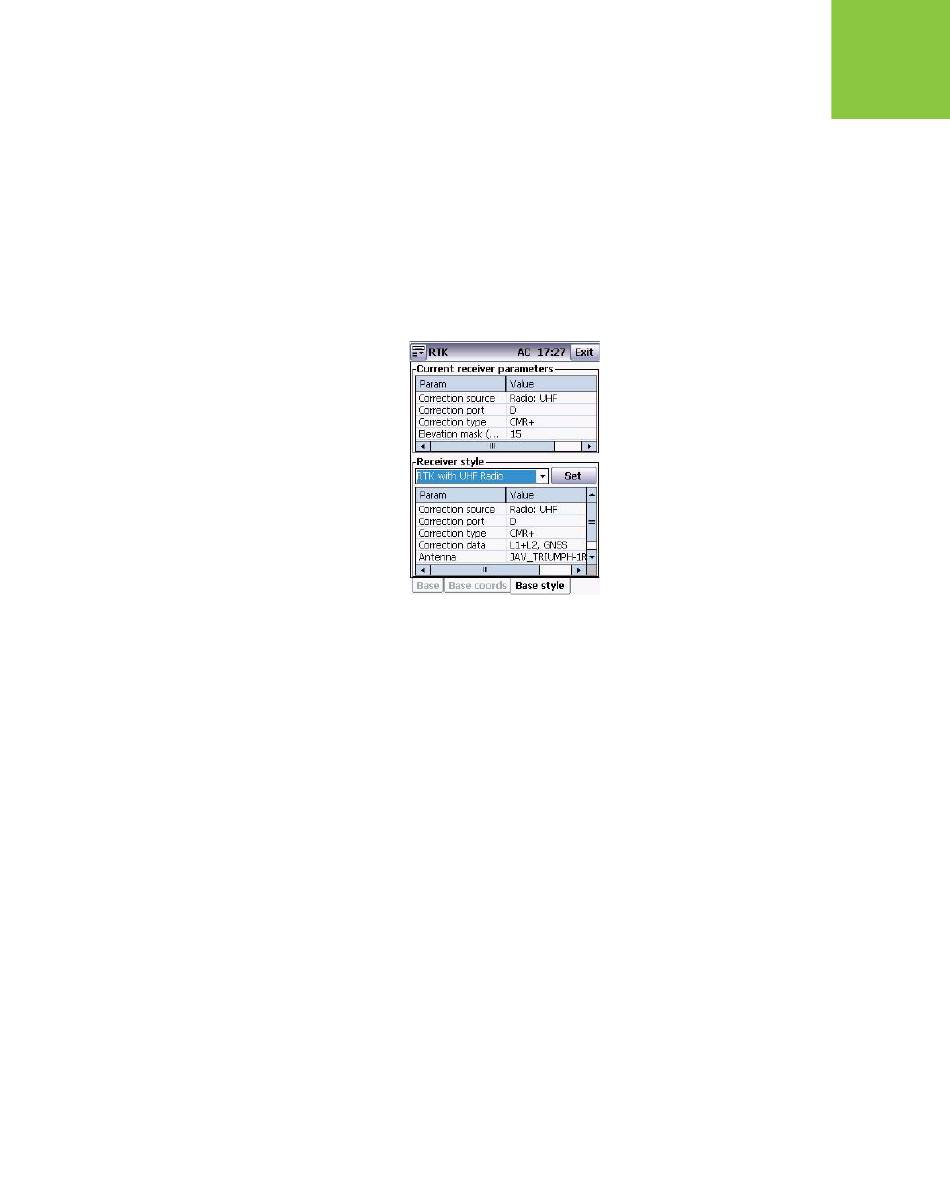

Figure 2-4. Base style
UHF Base & Rover Configuration Example
Rover Configuration
Attaching UHF/GSM Antenna
4
